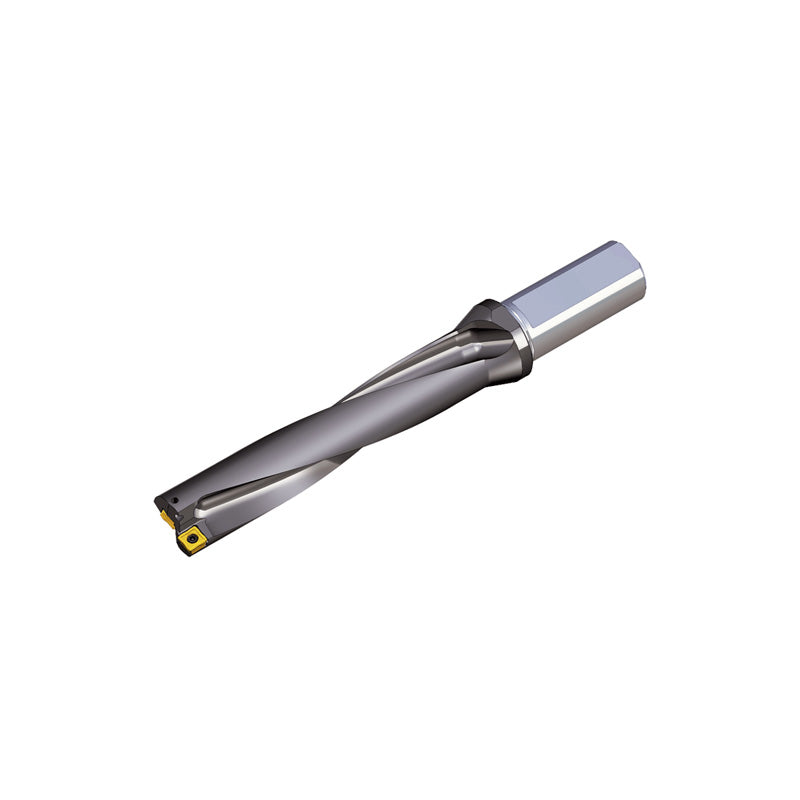

TOP-5XD (DIA 12-50) Indexable drills with unique square inserts & coolant holes, drilling depth 5xD
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Next generation indexable drill
» Remarkable machinability with high stability
» Twisted coolant channels: Improved chip evacuation and hole quality
» Applicable to a variety of materials
» Enhanced insert durability with new grade (TT9080)
» One insert for both internal and external pockets
| Designation | DC | DCONMS | DF | OAL | LU | LPR | LS | CNT | MIID |
|---|---|---|---|---|---|---|---|---|---|
| TOP 5120-20T2-04 | 12.00 | 20.00 | 25.00 | 130.00 | 60.0 | 80.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 5125-20T2-04 | 12.50 | 20.00 | 25.00 | 135.00 | 65.0 | 85.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 5130-20T2-04 | 13.00 | 20.00 | 25.00 | 135.00 | 65.0 | 85.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 5135-20T2-04 | 13.50 | 20.00 | 25.00 | 138.00 | 70.0 | 88.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 5140-20T2-05 | 14.00 | 20.00 | 25.00 | 138.00 | 70.0 | 88.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 5145-20T2-05 | 14.50 | 20.00 | 25.00 | 144.00 | 75.0 | 94.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 5150-20T2-05 | 15.00 | 20.00 | 25.00 | 144.00 | 75.0 | 94.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 5155-20T2-05 | 15.50 | 20.00 | 25.00 | 150.00 | 80.0 | 100.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 5160-20T2-05 | 16.00 | 20.00 | 25.00 | 150.00 | 80.0 | 100.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 5165-25T2-06 | 16.50 | 25.00 | 32.00 | 161.00 | 85.0 | 105.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 5170-25T2-06 | 17.00 | 25.00 | 32.00 | 161.00 | 85.0 | 105.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 5175-25T2-06 | 17.50 | 25.00 | 32.00 | 167.00 | 90.0 | 111.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 5180-25T2-06 | 18.00 | 25.00 | 32.00 | 167.00 | 90.0 | 111.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 5185-25T2-06 | 18.50 | 25.00 | 32.00 | 172.00 | 95.0 | 116.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 5190-25T2-06 | 19.00 | 25.00 | 32.00 | 172.00 | 95.0 | 116.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 5195-25T2-07 | 19.50 | 25.00 | 32.00 | 179.00 | 100.0 | 123.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 5200-25T2-07 | 20.00 | 25.00 | 32.00 | 179.00 | 100.0 | 123.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 5205-25T2-07 | 20.50 | 25.00 | 32.00 | 184.00 | 105.0 | 128.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 5210-25T2-07 | 21.00 | 25.00 | 32.00 | 184.00 | 105.0 | 128.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 5215-25T2-07 | 21.50 | 25.00 | 32.00 | 189.00 | 110.0 | 133.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 5220-25T2-07 | 22.00 | 25.00 | 32.00 | 189.00 | 110.0 | 133.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 5222-25T2-07 | 22.20 | 25.00 | 32.00 | 189.00 | 110.0 | 133.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 5225-25T2-08 | 22.50 | 25.00 | 32.00 | 193.00 | 115.0 | 137.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 5230-25T2-08 | 23.00 | 25.00 | 32.00 | 193.00 | 115.0 | 137.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 5230-32T2-08 | 23.00 | 32.00 | 40.00 | 197.00 | 115.0 | 137.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 5235-25T2-08 | 23.50 | 25.00 | 32.00 | 198.00 | 120.0 | 142.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 5235-32T2-08 | 23.50 | 32.00 | 40.00 | 202.00 | 120.0 | 142.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 5240-25T2-08 | 24.00 | 25.00 | 32.00 | 198.00 | 120.0 | 142.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 5240-32T2-08 | 24.00 | 32.00 | 40.00 | 202.00 | 120.0 | 142.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 5245-25T2-08 | 24.50 | 25.00 | 32.00 | 203.00 | 125.0 | 147.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 5245-32T2-08 | 24.50 | 32.00 | 40.00 | 207.00 | 125.0 | 147.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 5250-25T2-08 | 25.00 | 25.00 | 32.00 | 203.00 | 125.0 | 147.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 5250-32T2-08 | 25.00 | 32.00 | 40.00 | 207.00 | 125.0 | 147.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 5255-25T2-08 | 25.50 | 25.00 | 32.00 | 207.00 | 130.0 | 151.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 5255-32T2-08 | 25.50 | 32.00 | 40.00 | 211.00 | 130.0 | 151.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 5260-25T2-08 | 26.00 | 25.00 | 32.00 | 207.00 | 130.0 | 151.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 5260-32T2-08 | 26.00 | 32.00 | 40.00 | 211.00 | 130.0 | 151.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 5265-32T2-09 | 26.50 | 32.00 | 40.00 | 218.00 | 135.0 | 158.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5270-25T2-09 | 27.00 | 25.00 | 40.00 | 214.00 | 135.0 | 158.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 5270-32T2-09 | 27.00 | 32.00 | 40.00 | 218.00 | 135.0 | 158.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5275-32T2-09 | 27.50 | 32.00 | 40.00 | 223.00 | 140.0 | 163.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5280-25T2-09 | 28.00 | 25.00 | 40.00 | 219.00 | 140.0 | 163.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 5280-32T2-09 | 28.00 | 32.00 | 40.00 | 223.00 | 140.0 | 163.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5282-32T2-09 | 28.20 | 32.00 | 40.00 | 223.00 | 140.0 | 163.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5285-32T2-09 | 28.50 | 32.00 | 40.00 | 228.00 | 145.0 | 168.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5290-25T2-09 | 29.00 | 25.00 | 40.00 | 224.00 | 145.0 | 168.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 5290-32T2-09 | 29.00 | 32.00 | 40.00 | 228.00 | 145.0 | 168.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5295-32T2-09 | 29.50 | 32.00 | 40.00 | 233.00 | 150.0 | 173.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5300-32T2-09 | 30.00 | 32.00 | 40.00 | 233.00 | 150.0 | 173.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5305-32T2-09 | 30.50 | 32.00 | 40.00 | 238.00 | 155.0 | 178.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5310-32T2-09 | 31.00 | 32.00 | 40.00 | 238.00 | 155.0 | 178.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 5320-32T2-11 | 32.00 | 32.00 | 40.00 | 243.00 | 160.0 | 183.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 5320-40T2-11 | 32.00 | 40.00 | 50.00 | 253.00 | 160.0 | 183.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 5330-32T2-11 | 33.00 | 32.00 | 40.00 | 248.00 | 165.0 | 188.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 5330-40T2-11 | 33.00 | 40.00 | 50.00 | 258.00 | 165.0 | 188.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 5340-32T2-11 | 34.00 | 32.00 | 40.00 | 253.00 | 170.0 | 193.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 5340-40T2-11 | 34.00 | 40.00 | 50.00 | 263.00 | 170.0 | 193.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 5350-32T2-11 | 35.00 | 32.00 | 40.00 | 258.00 | 175.0 | 198.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 5350-40T2-11 | 35.00 | 40.00 | 50.00 | 268.00 | 175.0 | 198.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 5360-32T2-11 | 36.00 | 32.00 | 40.00 | 263.00 | 180.0 | 203.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 5360-40T2-11 | 36.00 | 40.00 | 50.00 | 273.00 | 180.0 | 203.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 5370-32T2-13 | 37.00 | 32.00 | 50.00 | 273.00 | 185.0 | 213.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 5370-40T2-13 | 37.00 | 40.00 | 50.00 | 283.00 | 185.0 | 213.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 5380-32T2-13 | 38.00 | 32.00 | 50.00 | 278.00 | 190.0 | 218.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 5380-40T2-13 | 38.00 | 40.00 | 50.00 | 288.00 | 190.0 | 218.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 5390-32T2-13 | 39.00 | 32.00 | 50.00 | 283.00 | 195.0 | 223.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 5390-40T2-13 | 39.00 | 40.00 | 50.00 | 293.00 | 195.0 | 223.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 5400-32T2-13 | 40.00 | 32.00 | 50.00 | 288.00 | 200.0 | 228.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 5400-40T2-13 | 40.00 | 40.00 | 50.00 | 298.00 | 200.0 | 228.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 5410-40T2-13 | 41.00 | 40.00 | 50.00 | 303.00 | 205.0 | 233.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 5420-40T2-13 | 42.00 | 40.00 | 50.00 | 308.00 | 210.0 | 238.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 5430-40T2-13 | 43.00 | 40.00 | 50.00 | 313.00 | 215.0 | 243.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 5440-40T2-15 | 44.00 | 40.00 | 60.00 | 325.00 | 220.0 | 255.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 5450-40T2-15 | 45.00 | 40.00 | 60.00 | 330.00 | 225.0 | 260.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 5460-40T2-15 | 46.00 | 40.00 | 60.00 | 335.00 | 230.0 | 265.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 5470-40T2-15 | 47.00 | 40.00 | 60.00 | 340.00 | 235.0 | 270.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 5480-40T2-15 | 48.00 | 40.00 | 60.00 | 345.00 | 240.0 | 275.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 5490-40T2-15 | 49.00 | 40.00 | 60.00 | 350.00 | 245.0 | 280.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 5500-40T2-15 | 50.00 | 40.00 | 60.00 | 355.00 | 250.0 | 285.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
