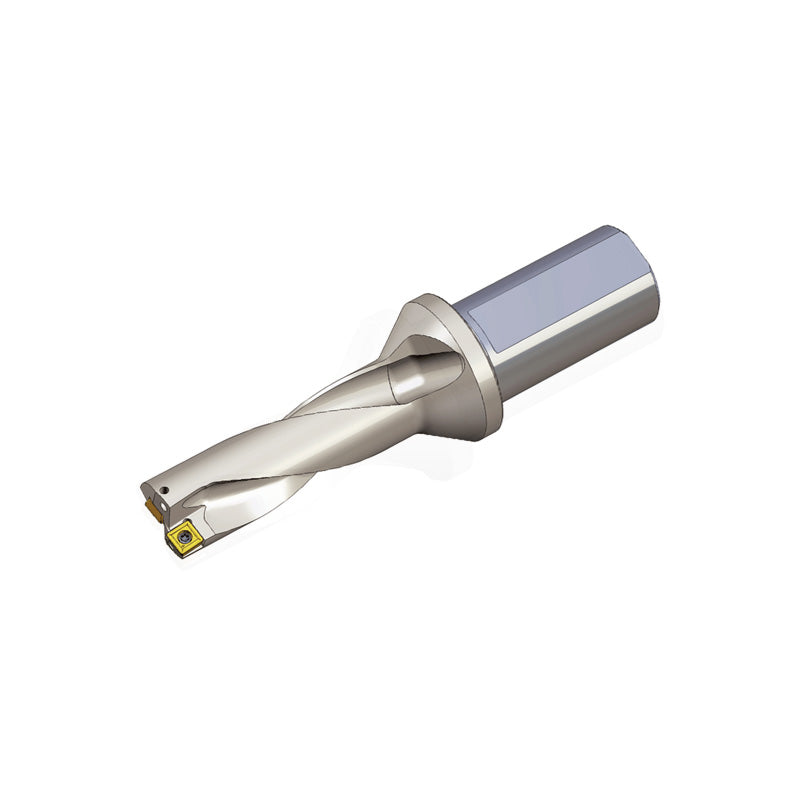

TDR-3XD (DIA 12.5-50) Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD
TDR-3XD (DIA 12.5-50) Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Double the holes, double the productivity
» Twisted coolant channels with high rigidity of drill body
» Bigger chip gullet for better chip evacuation
» Special treatment on the body for wear resistance & longer body life
» Square 4 corner economical insert with new PVD grade
» Reduced stock-keep costs for drill insert

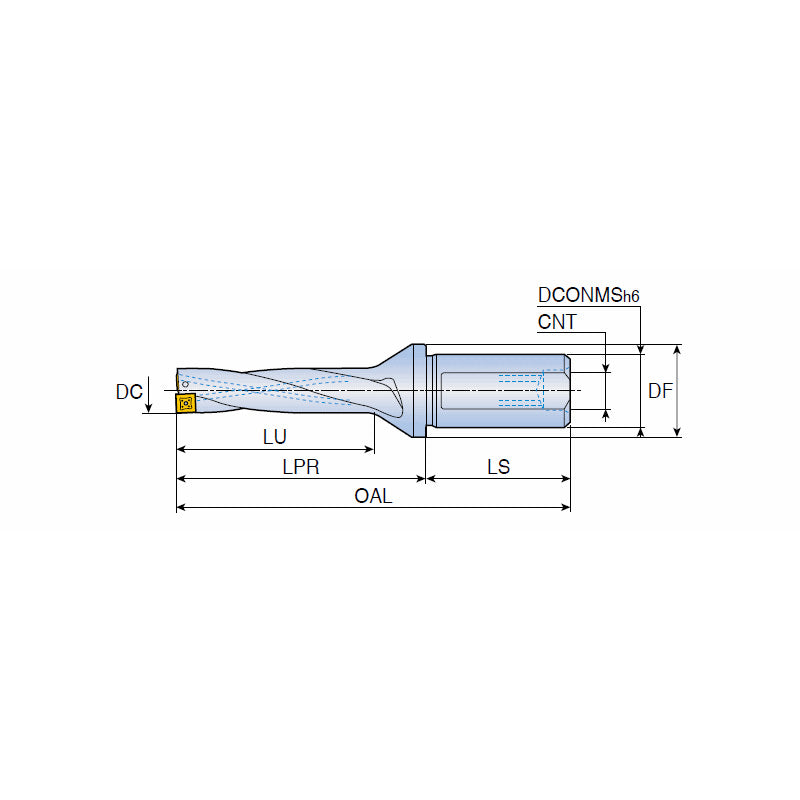

| Designation | DC | DCONMS | DF | OAL | LU | LPR | LS | CNT | MIID |
|---|---|---|---|---|---|---|---|---|---|
| TDR 3125-20T2-05 | 12.50 | 20.00 | 25.00 | 107.00 | 39.0 | 57.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 3130-20T2-05 | 13.00 | 20.00 | 25.00 | 107.00 | 39.0 | 57.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 3135-20T2-05 | 13.50 | 20.00 | 25.00 | 110.00 | 42.0 | 60.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 3140-20T2-05 | 14.00 | 20.00 | 25.00 | 110.00 | 42.0 | 60.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 3145-20T2-05 | 14.50 | 20.00 | 25.00 | 114.00 | 44.0 | 64.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 3150-20T2-05 | 15.00 | 20.00 | 25.00 | 114.00 | 45.0 | 64.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 3155-25T2-06 | 15.50 | 25.00 | 32.00 | 124.00 | 48.0 | 68.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3160-25T2-06 | 16.00 | 25.00 | 32.00 | 124.00 | 48.0 | 68.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3165-25T2-06 | 16.50 | 25.00 | 32.00 | 127.00 | 51.0 | 71.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3170-25T2-06 | 17.00 | 25.00 | 32.00 | 127.00 | 51.0 | 71.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3175-25T2-06 | 17.50 | 25.00 | 32.00 | 131.00 | 54.0 | 75.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3180-25T2-06 | 18.00 | 25.00 | 32.00 | 131.00 | 54.0 | 75.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3185-25T2-06 | 18.50 | 25.00 | 32.00 | 134.00 | 57.0 | 78.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3190-25T2-06 | 19.00 | 25.00 | 32.00 | 134.00 | 57.0 | 78.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3195-25T2-06 | 19.50 | 25.00 | 32.00 | 139.00 | 60.0 | 83.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3200-25T2-06 | 20.00 | 25.00 | 32.00 | 139.00 | 60.0 | 83.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3205-25T2-06 | 20.50 | 25.00 | 32.00 | 142.00 | 63.0 | 86.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3209-25T2-06 | 20.90 | 25.00 | 32.00 | 142.00 | 63.0 | 86.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3210-25T2-06 | 21.00 | 25.00 | 32.00 | 142.00 | 63.0 | 86.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3215-25T2-06 | 21.50 | 25.00 | 32.00 | 145.00 | 66.0 | 89.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 3220-25T2-07 | 22.00 | 25.00 | 32.00 | 145.00 | 66.0 | 89.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3225-25T2-07 | 22.50 | 25.00 | 45.00 | 150.00 | 69.0 | 94.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3225-32T2-07 | 22.50 | 32.00 | 45.00 | 154.00 | 69.0 | 94.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3230-25T2-07 | 23.00 | 25.00 | 45.00 | 150.00 | 69.0 | 94.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3230-32T2-07 | 23.00 | 32.00 | 45.00 | 154.00 | 69.0 | 94.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3235-25T2-07 | 23.50 | 25.00 | 45.00 | 145.00 | 72.0 | 98.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3235-32T2-07 | 23.50 | 32.00 | 45.00 | 149.00 | 72.0 | 98.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3239-25T2-07 | 23.90 | 25.00 | 45.00 | 154.00 | 72.0 | 98.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3239-32T2-07 | 23.90 | 32.00 | 45.00 | 164.00 | 72.0 | 98.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3240-25T2-07 | 24.00 | 25.00 | 45.00 | 145.00 | 72.0 | 98.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3240-32T2-07 | 24.00 | 32.00 | 45.00 | 149.00 | 72.0 | 98.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3245-25T2-07 | 24.50 | 25.00 | 45.00 | 158.00 | 75.0 | 102.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3245-32T2-07 | 24.50 | 32.00 | 45.00 | 162.00 | 75.0 | 102.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3250-25T2-07 | 25.00 | 25.00 | 45.00 | 158.00 | 75.0 | 102.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3250-32T2-07 | 25.00 | 32.00 | 45.00 | 162.00 | 75.0 | 102.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3255-25T2-07 | 25.50 | 25.00 | 45.00 | 161.00 | 78.0 | 105.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3255-32T2-07 | 25.50 | 32.00 | 45.00 | 165.00 | 78.0 | 105.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3260-25T2-07 | 26.00 | 25.00 | 45.00 | 161.00 | 78.0 | 105.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3260-32T2-07 | 26.00 | 32.00 | 45.00 | 165.00 | 78.0 | 105.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3264-25T2-07 | 26.40 | 25.00 | 45.00 | 168.00 | 81.0 | 108.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3264-32T2-07 | 26.40 | 32.00 | 45.00 | 181.00 | 81.0 | 108.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3265-25T2-07 | 26.50 | 25.00 | 45.00 | 164.00 | 81.0 | 108.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3265-32T2-07 | 26.50 | 32.00 | 45.00 | 168.00 | 81.0 | 108.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3270-25T2-07 | 27.00 | 25.00 | 45.00 | 164.00 | 81.0 | 108.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 3270-32T2-07 | 27.00 | 32.00 | 45.00 | 168.00 | 81.0 | 108.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 3275-25T2-07 | 27.50 | 25.00 | 45.00 | 168.00 | 84.0 | 112.0 | 56.0 | Rc 1/8 | SPMG 07T308 DG |
| TDR 3275-32T2-07 | 27.50 | 32.00 | 45.00 | 172.00 | 84.0 | 112.0 | 60.0 | Rc 1/4 | SPMG 07T308 DG |
| TDR 3280-25T2-09 | 28.00 | 25.00 | 45.00 | 168.00 | 84.0 | 112.0 | 56.0 | Rc 1/8 | SPMG 090408 DG |
| TDR 3280-32T2-09 | 28.00 | 32.00 | 45.00 | 172.00 | 84.0 | 112.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3285-25T2-09 | 28.50 | 25.00 | 45.00 | 171.00 | 87.0 | 115.0 | 56.0 | Rc 1/8 | SPMG 090408 DG |
| TDR 3285-32T2-09 | 28.50 | 32.00 | 45.00 | 175.00 | 87.0 | 115.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3290-25T2-09 | 29.00 | 25.00 | 45.00 | 171.00 | 87.0 | 115.0 | 56.0 | Rc 1/8 | SPMG 090408 DG |
| TDR 3290-32T2-09 | 29.00 | 32.00 | 45.00 | 175.00 | 87.0 | 115.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3294-32T2-09 | 29.40 | 32.00 | 45.00 | 191.00 | 90.0 | 121.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3294-40T2-09 | 29.40 | 40.00 | 45.00 | 195.00 | 90.0 | 121.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3295-32T2-09 | 29.50 | 32.00 | 55.00 | 181.00 | 90.0 | 121.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3295-40T2-09 | 29.50 | 40.00 | 55.00 | 191.00 | 90.0 | 121.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3300-32T2-09 | 30.00 | 32.00 | 55.00 | 181.00 | 90.0 | 121.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3300-40T2-09 | 30.00 | 40.00 | 55.00 | 191.00 | 90.0 | 121.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3305-32T2-09 | 30.50 | 32.00 | 55.00 | 185.00 | 93.0 | 125.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3305-40T2-09 | 30.50 | 40.00 | 55.00 | 195.00 | 93.0 | 125.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3310-32T2-09 | 31.00 | 32.00 | 55.00 | 185.00 | 93.0 | 125.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3310-40T2-09 | 31.00 | 40.00 | 55.00 | 195.00 | 93.0 | 125.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3315-32T2-09 | 31.50 | 32.00 | 55.00 | 188.00 | 96.0 | 128.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3315-40T2-09 | 31.50 | 40.00 | 55.00 | 198.00 | 96.0 | 128.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3320-32T2-09 | 32.00 | 32.00 | 55.00 | 188.00 | 96.0 | 128.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3320-40T2-09 | 32.00 | 40.00 | 55.00 | 198.00 | 96.0 | 128.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3325-32T2-09 | 32.50 | 32.00 | 55.00 | 192.00 | 99.0 | 132.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3325-40T2-09 | 32.50 | 40.00 | 55.00 | 202.00 | 99.0 | 132.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3330-32T2-09 | 33.00 | 32.00 | 55.00 | 192.00 | 99.0 | 132.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3330-40T2-09 | 33.00 | 40.00 | 55.00 | 202.00 | 99.0 | 132.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 3340-32T2-11 | 34.00 | 32.00 | 55.00 | 195.00 | 102.0 | 135.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3340-40T2-11 | 34.00 | 40.00 | 55.00 | 205.00 | 102.0 | 135.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3350-32T2-11 | 35.00 | 32.00 | 55.00 | 199.00 | 105.0 | 139.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3350-40T2-11 | 35.00 | 40.00 | 55.00 | 209.00 | 105.0 | 139.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3360-32T2-11 | 36.00 | 32.00 | 55.00 | 203.00 | 108.0 | 143.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3360-40T2-11 | 36.00 | 40.00 | 55.00 | 213.00 | 108.0 | 143.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3370-32T2-11 | 37.00 | 32.00 | 55.00 | 207.00 | 111.0 | 147.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3370-40T2-11 | 37.00 | 40.00 | 55.00 | 217.00 | 111.0 | 147.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3375-32T2-11 | 37.50 | 32.00 | 55.00 | 211.00 | 114.0 | 151.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3375-40T2-11 | 37.50 | 40.00 | 55.00 | 221.00 | 114.0 | 151.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3380-32T2-11 | 38.00 | 32.00 | 55.00 | 211.00 | 114.0 | 151.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3380-40T2-11 | 38.00 | 40.00 | 55.00 | 221.00 | 114.0 | 151.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3390-32T2-11 | 39.00 | 32.00 | 55.00 | 214.00 | 117.0 | 154.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3390-40T2-11 | 39.00 | 40.00 | 55.00 | 224.00 | 117.0 | 154.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3400-32T2-11 | 40.00 | 32.00 | 60.00 | 218.00 | 120.0 | 158.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3400-40T2-11 | 40.00 | 40.00 | 60.00 | 228.00 | 120.0 | 158.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3405-40T2-11 | 40.50 | 40.00 | 60.00 | 232.00 | 123.0 | 162.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3410-40T2-11 | 41.00 | 40.00 | 60.00 | 232.00 | 123.0 | 162.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 3420-40T2-14 | 42.00 | 40.00 | 60.00 | 235.00 | 126.0 | 165.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 3430-40T2-14 | 43.00 | 40.00 | 60.00 | 239.00 | 129.0 | 169.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 3440-40T2-14 | 44.00 | 40.00 | 60.00 | 242.00 | 132.0 | 172.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 3450-40T2-14 | 45.00 | 40.00 | 60.00 | 247.00 | 135.0 | 177.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 3460-40T2-14 | 46.00 | 40.00 | 60.00 | 251.00 | 138.0 | 181.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 3470-40T2-14 | 47.00 | 40.00 | 60.00 | 254.00 | 141.0 | 184.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 3480-40T2-14 | 48.00 | 40.00 | 60.00 | 258.00 | 144.0 | 188.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 3490-40T2-14 | 49.00 | 40.00 | 60.00 | 261.00 | 147.0 | 191.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 3500-40T2-14 | 50.00 | 40.00 | 60.00 | 265.00 | 150.0 | 195.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
