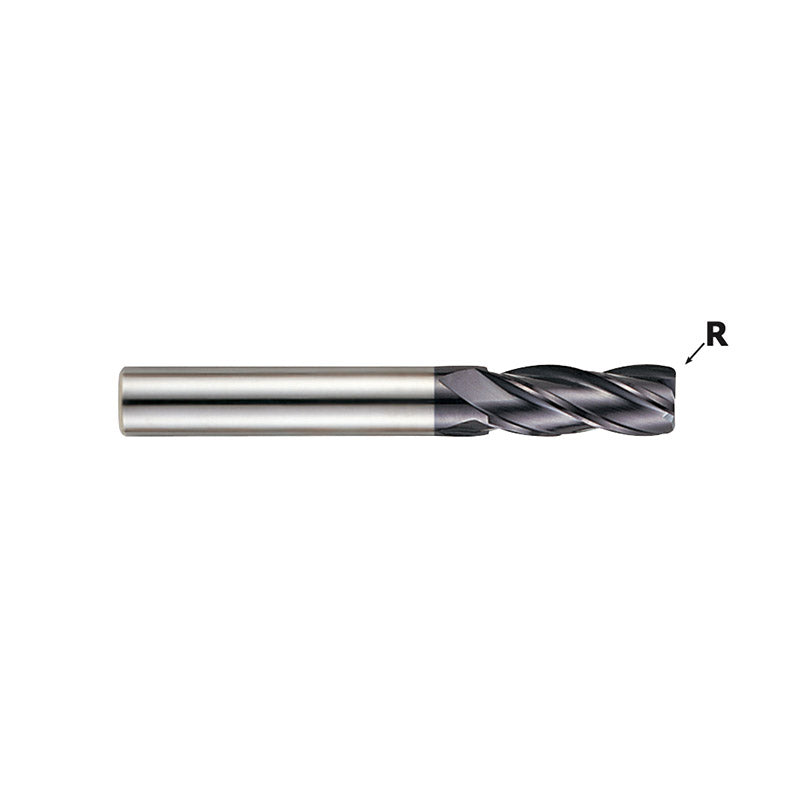

4 Flute Stub Length Stub Length Corner Radius Carbide X-Power Pro End Mills GM639 Series

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

4 Flute Stub Length Stub Length Corner Radius Carbide X-Power Pro End Mills GM639 Series

4 Flute Stub Length Stub Length Corner Radius Carbide X-Power Pro End Mills GM639 Series

4 Flute Stub Length Stub Length Corner Radius Carbide X-Power Pro End Mills GM639 Series

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: GM639004
Shank form: Straight-Cylindrical
Number of Flutes: 4

Product Information

▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.

▶ Superior workpiece finishes.

▶ Increased feed rate.

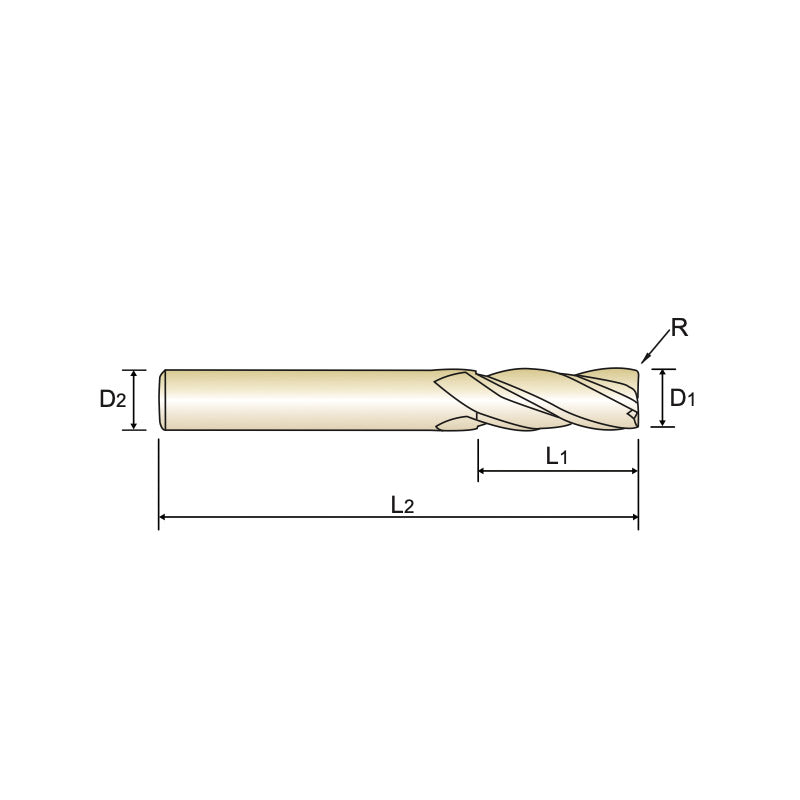

Mill Diameter Shank Diameter Length of Cut Overall Length Corner Radius (±.001)
D1 D2 L1 L2 R.008 R.010 R.020 R.0030 R.060 R.090
1/16 1/4 1/8 2-1/4 GM639004
1/8 1/4 1/4 2-1/4 GM639008 GM639901
3/16 1/4 3/8 2-1/2 GM639012 GM639903 GM639904
1/4 1/4 1/2 3 GM639016 GM639905 GM639906
5/16 5/16 1/2 3 GM639020 GM639907 GM639908
3/8 3/8 5/8 3 GM639024 GM639910 GM639911 GM639912
1/2 1/2 5/8 4 GM639032 GM639913 GM639914 GM639915
