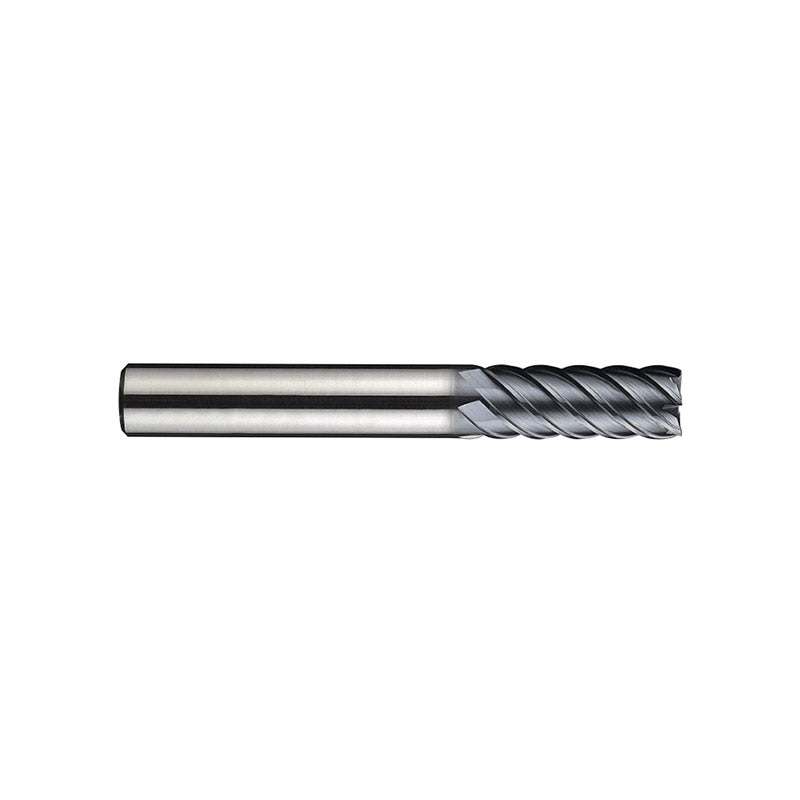

Long Length 6 Flute 45º Helix (Regular, Long Shank) SEME75060~SEME75200110300 Carbide 4G Mill End Mills Plain Shank SEME75 Series

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

Long Length 6 Flute 45º Helix (Regular, Long Shank) SEME75060~SEME75200110300  Carbide 4G Mill End Mills Plain Shank SEME75 Series

Long Length 6 Flute 45º Helix (Regular, Long Shank) SEME75060~SEME75200110300 Carbide 4G Mill End Mills Plain Shank SEME75 Series

Long Length 6 Flute 45º Helix (Regular, Long Shank) SEME75060~SEME75200110300 Carbide 4G Mill End Mills Plain Shank SEME75 Series

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: SEME75060
Shank form: Straight-Cylindrical
Number of Flutes: 6

Product Information

Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.

Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.

Due to 45 helix angle, better surface roughness can be achieved at side cutting.

Available various effective length and overall length products.

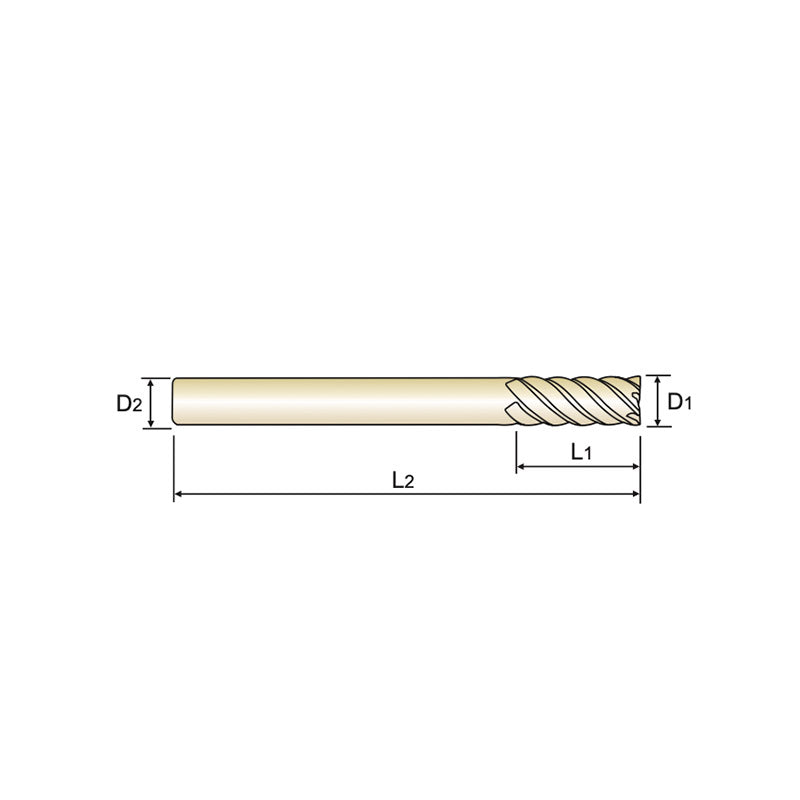

EDP No. Mill Diameter Shank Diameter Length of Cut Overall Length EDP No.
D1 D2 L1 L2
SEME75060 6.0 6 15 60 Regular
SEME7506020 6.0 6 20 70 Long
SEME7506030 6.0 6 30 80 Long
SEME7506030110 6.0 6 30 110 Long
SEME75080 8.0 8 20 70 Regular
SEME7508030 8.0 8 30 80 Long
SEME7508035 8.0 8 35 90 Long
SEME7508040 8.0 8 40 90 Long
SEME7508040130 8.0 8 40 130 Long
SEME75100 10.0 10 25 75 Regular
SEME7510030 10.0 10 30 80 Long
SEME7510040 10.0 10 40 90 Long
SEME7510050 10.0 10 50 100 Long
SEME7510050150 10.0 10 50 150 Long
SEME75120 12.0 12 30 80 Regular
SEME7512040 12.0 12 40 90 Long
SEME7512050 12.0 12 50 100 Long
SEME7512060 12.0 12 60 110 Long
SEME7512060150 12.0 12 60 150 Long
SEME75160 16.0 16 40 100 Regular
SEME7516050 16.0 16 50 110 Long
SEME7516060 16.0 16 60 120 Long
SEME7516090 16.0 16 90 150 Long
SEME75160110 16.0 16 110 200 Long
SEME75160110250 16.0 16 110 250 Long
SEME75200 20.0 20 45 100 Regular
SEME7520060 20.0 20 60 120 Long
SEME7520070 20.0 20 70 130 Long
SEME75200110 20.0 20 110 200 Long
SEME75200110250 20.0 20 110 250 Long
SEME75200110300 20.0 20 110 300 Long
