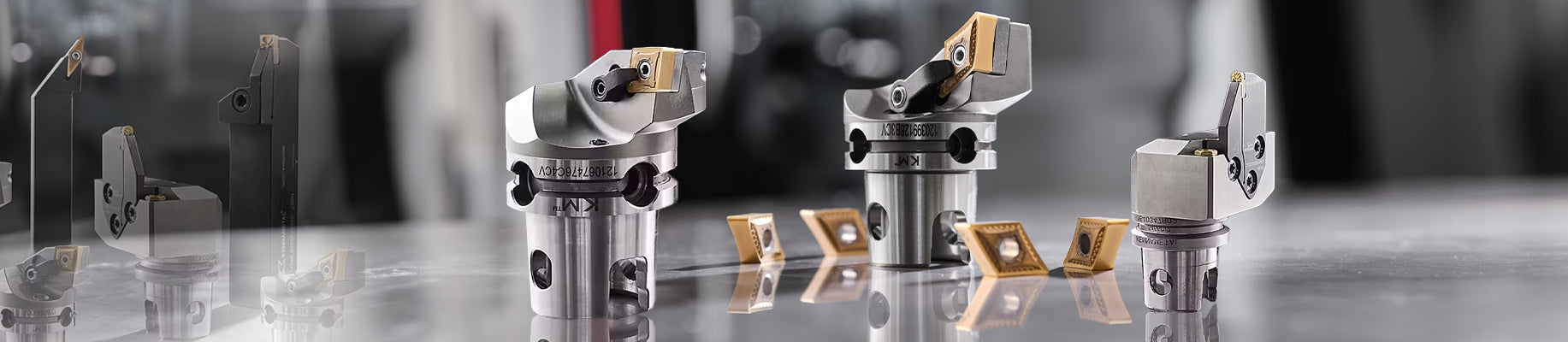

FIX8 is the heavy-duty turning solution with eight cutting edges per insert. It’s ideal for medium machining and roughing with lowest cost per edge. A unique clamping system pulls the insert into the pocket seat, enabling the insert to withstand large cutting forces and vibrations. Large depth of cut (up to 12mm) and feed rate (up to 1.4mm) capabilities ensure highest possible metal removal rates in steel, cast iron, and stainless steels. With 15% less cutting forces, FIX8 is also well suited for low-horsepower lathes. The tangential design increases the amount of carbide between the workpiece and the tool holder, allowing the system to take higher loads. A carbide shim protects the pocket against deformation and ensures process safety. Precision Coolant Technology: Coolant exit holes directed towards the fl ank of the insert – controlling the heat in the cutting zone and prolonging tool life. Three coolant nozzles directed to the rake face – controlling temperature, chip evacuation, and supporting chip formation.

The KCK20B and KCKP10 indexable milling grades feature a new coating for high-performance milling, higher wear resistance and longer tool life in cast iron and compacted graphite iron applications. The new High-Power Impulse Magnetron Sputtering (High-PIMS) coating: Creates a smoother insert surface and optimal layer adhesion Increases cutting edge strength Delivers consistent and repeatable performance and up to 30% longer tool life Features a gold top layer for easy wear identification Both grades offer higher productivity and consistent, repeatable performance during roughing, semi-finishing and finishing operations when machining cast iron and compacted graphite cast-iron components.

kennametal tools & inserts​、go drill​ 、end mills​

SPF Drills for Composites SPF solid carbide drills offer a material-specific design to machine composites and composites stacks DAL Drills for CFRP- Metal Stacks DAL drills tackle CFRP-metal stack drilling operations. The drills can be applied in all combinations of stacks: CFRP-Ti-Al as well as CFRP-Ti, CFRP-Al and also straight Ti or Al. KenTIP™ FS Modular Drilling for Composites and CFRP-Metal Stacks KenTIP FS covers more applications and provides better performance than any other modular system, delivering substantial cost savings and process simplifications on your shop floor. KenTIP FS inserts cover the entire front part of the drill. The coupling is completely protected from chip flow and contact with the workpiece. You get carbide where it matters. HiPACS Aerospace Fastener Hole Drilling and Countersinking System The HiPACS drilling and countersinking tool is a unique high-precision system, achieving 1° angular countersink tolerances in aerospace fastener hole applications. Designed to be clamped in a standard hydraulic chuck, HiPACS consists of three standard off-the-shelf components: • The HiPACS reducer sleeve, featuring a built-in, high-precision pocket seat for a countersinking insert. • The HiPACS PCD countersinking insert. • The HiPACS solid carbide drills with SPF and DAL point geometry. This easy-to-assemble system reduces cost per hole since drill and chamfer insert can be exchanged independently from another.
