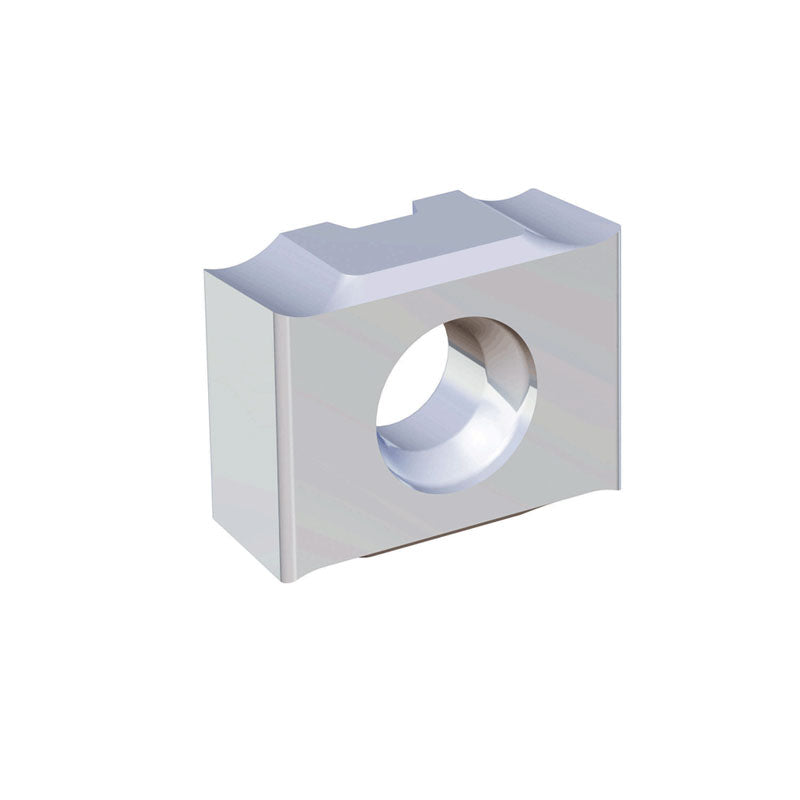

ZNHT-AL Precision ground tangential inserts of slotting cutters with 4 cutting edges for aluminum machining
ZNHT-AL Precision ground tangential inserts of slotting cutters with 4 cutting edges for aluminum machining
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Slot Milling Line with Various Insert Geometries and Cutters
» Various insert geometries depending on machining diameter and width
» Economical and highly accurate 4 cutting edge insert type (ZNHT, ZNHU, SLOT)
» Precision 3 cutting edge insert type for narrow width and shallow grooving (TS16)
» Smooth machining due to high positive rake angle
» High stability and rigid clamping due to unique pocket design

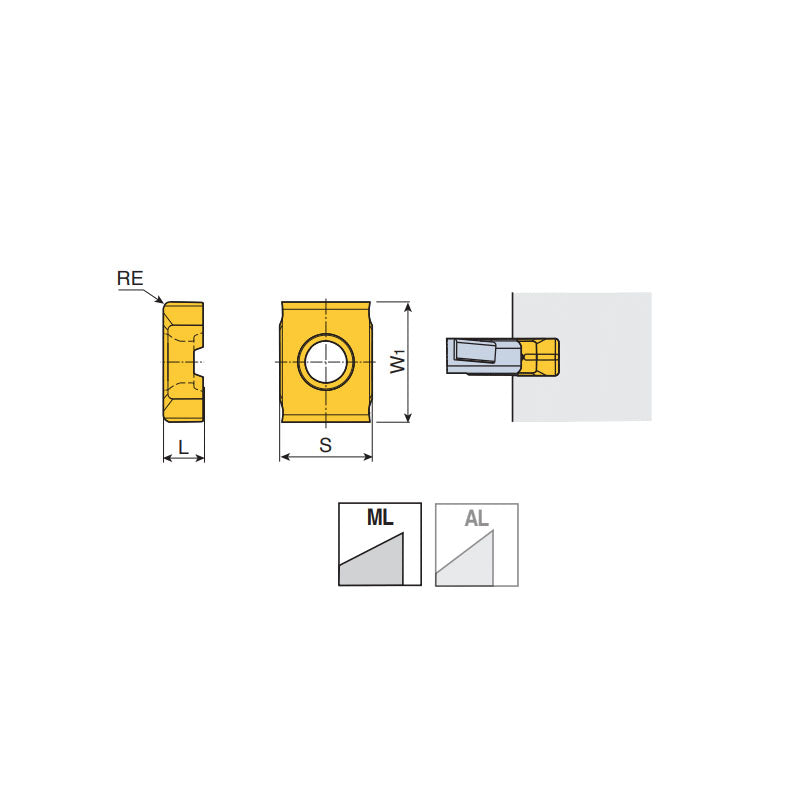

| Designation | W1 | S | L | RE | fz (max) | fz (min) | Grade & Vc |
|---|---|---|---|---|---|---|---|
| ZNHT 018-02-AL | 10.00 | 7.50 | 1.80 | 0.20 | 0.350 | 0.100 | K10 |
| ZNHT 023-02-AL | 10.00 | 7.50 | 2.30 | 0.20 | 0.350 | 0.100 | K10 |
| ZNHT 028-02-AL | 10.00 | 7.50 | 2.80 | 0.20 | 0.350 | 0.100 | K10 |
| ZNHT 033-02-AL | 10.00 | 7.50 | 3.30 | 0.20 | 0.350 | 0.100 | K10 |
| ZNHT 038-04-AL | 13.00 | 10.00 | 3.80 | 0.40 | 0.350 | 0.100 | K10 |
| ZNHT 043-04-AL | 13.00 | 10.00 | 4.30 | 0.40 | 0.350 | 0.100 | K10 |
| ZNHT 048-04-AL | 13.00 | 10.00 | 4.80 | 0.40 | 0.350 | 0.100 | K10 |
| ZNHT 053-04-AL | 13.00 | 10.00 | 5.30 | 0.40 | 0.350 | 0.100 | K10 |
