Vendor:
TaeguTec
14D-F45XN-R-06 45° Face mills with double-sided economical 14 cutting edges inserts of XN 06 for general applications
- $0.00
- Unit price
- per
Inquiry

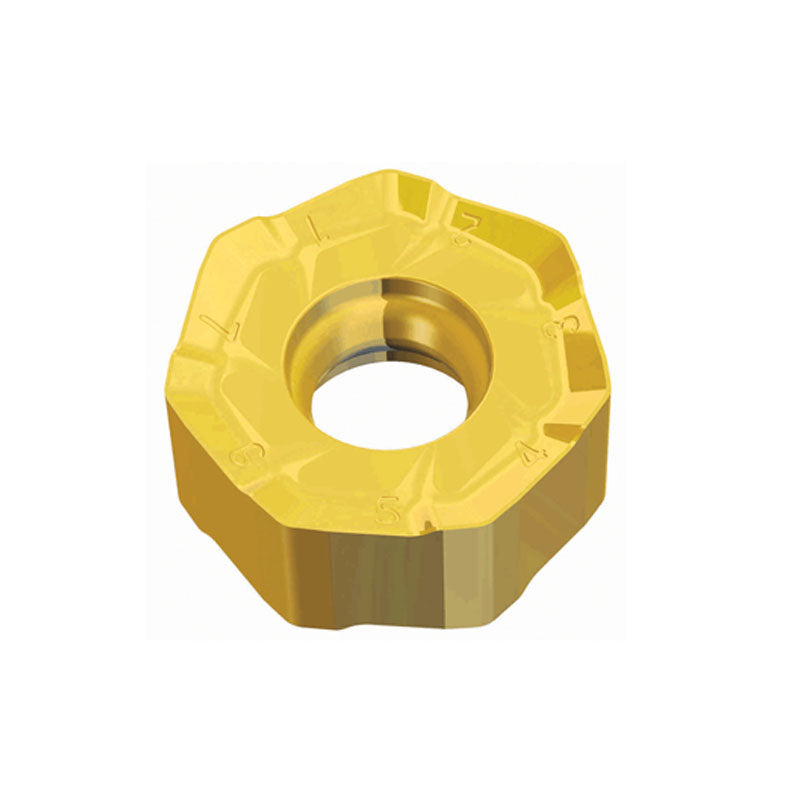

XNMU 06 ANR-M Double-sided inserts with economical 14 cutting edges for steel and cast iron milling in maximum depth of cut 3.5 mm
XNMU 06 ANR-M Double-sided inserts with economical 14 cutting edges for steel and cast iron milling in maximum depth of cut 3.5 mm
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
45° Face Mills with 14 Cutting Edge Inserts
for Higher Economy and Productivity
» Economical double-sided 14 cutting edge insert for face milling
» Smooth machining with positive cutting edge geometry
» Economical solutions for rough machining on cast iron and steel
» Ideal solutions for automotive parts such as turbocharger
» Various insert geometries and cutters suited to all applications

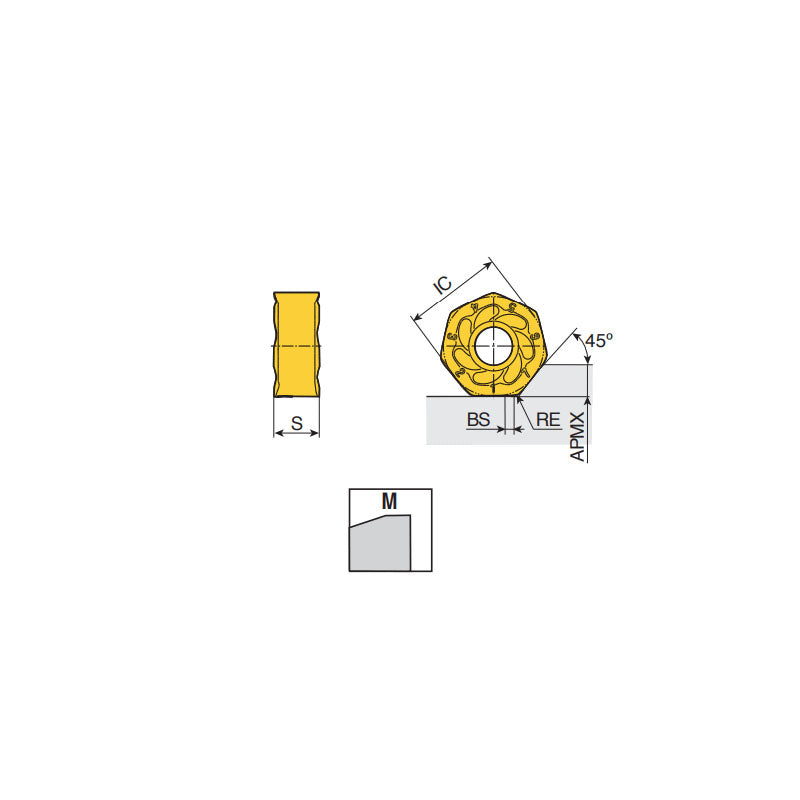

| Designation | IC | S | BS | RE | APMX | ap (min) | ap (max) | fz (max) | fz (min) | Grade & Vc |
|---|---|---|---|---|---|---|---|---|---|---|
| XNMU 0605 ANR-M | 13.70 | 6.20 | 1.00 | 1.00 | 3.50 | 1.00 | 3.00 | 0.200 | 0.100 | TT8525B, TT7080, TT9080, TT6080 |
