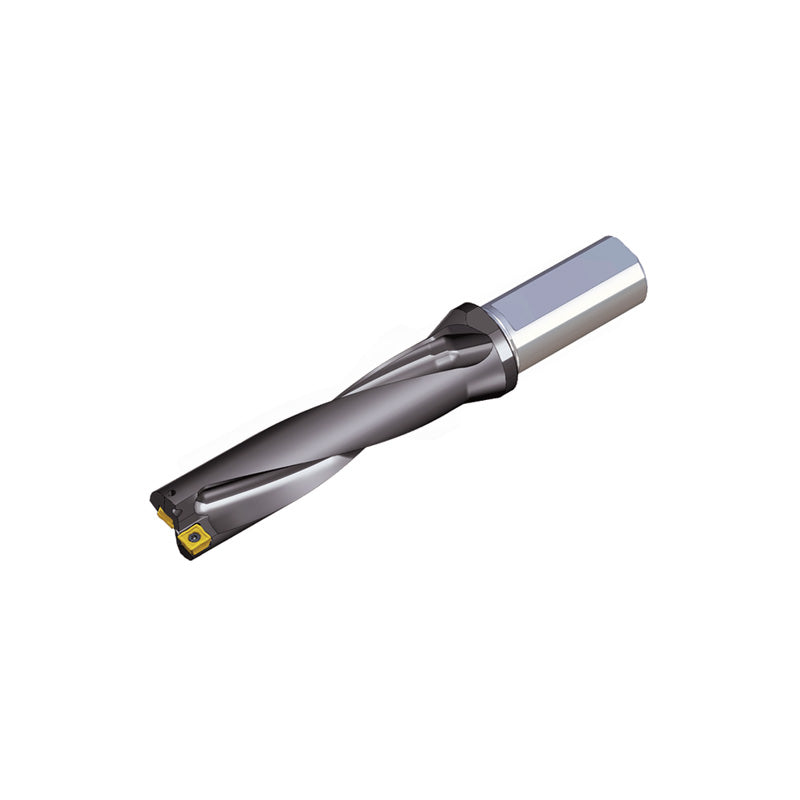

Next generation indexable drill
» Remarkable machinability with high stability
» Twisted coolant channels: Improved chip evacuation and hole quality
» Applicable to a variety of materials
» Enhanced insert durability with new grade (TT9080)
» One insert for both internal and external pockets

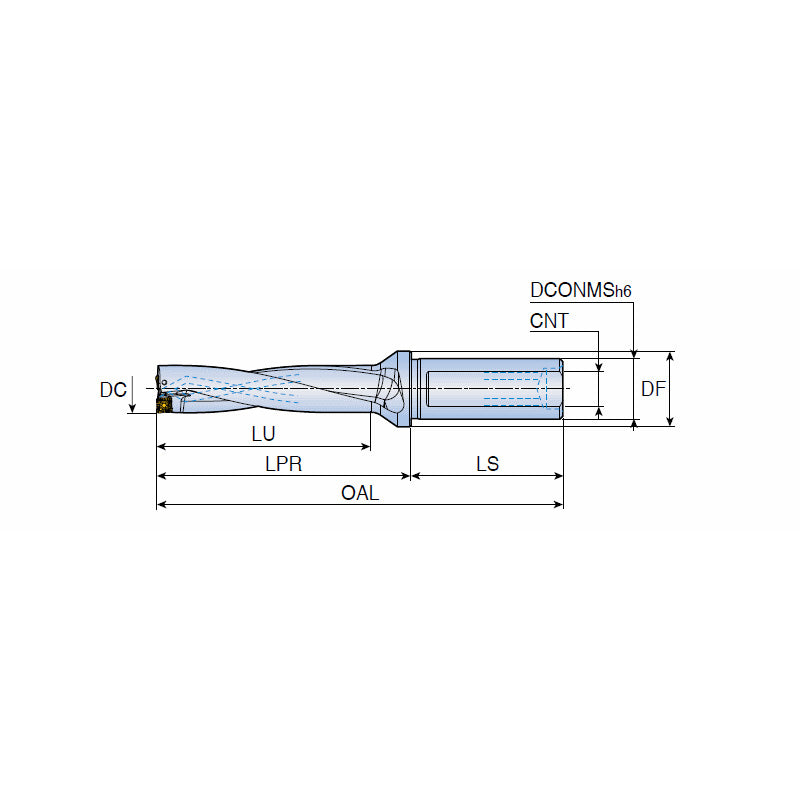

| Designation | DC | DCONMS | DF | OAL | LU | LPR | LS | CNT | MIID |
|---|---|---|---|---|---|---|---|---|---|
| TOP 4120-20T2-04 | 12.00 | 20.00 | 25.00 | 118.00 | 48.0 | 68.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 4125-20T2-04 | 12.50 | 20.00 | 25.00 | 122.00 | 52.0 | 72.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 4130-20T2-04 | 13.00 | 20.00 | 25.00 | 122.00 | 52.0 | 72.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 4135-20T2-04 | 13.50 | 20.00 | 25.00 | 124.00 | 56.0 | 74.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 4140-20T2-05 | 14.00 | 20.00 | 25.00 | 124.00 | 56.0 | 74.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 4145-20T2-05 | 14.50 | 20.00 | 25.00 | 129.00 | 60.0 | 79.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 4150-20T2-05 | 15.00 | 20.00 | 25.00 | 129.00 | 60.0 | 79.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 4155-20T2-05 | 15.50 | 20.00 | 25.00 | 134.00 | 64.0 | 84.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 4160-20T2-05 | 16.00 | 20.00 | 25.00 | 134.00 | 64.0 | 84.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 4165-25T2-06 | 16.50 | 25.00 | 32.00 | 144.00 | 68.0 | 88.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 4170-25T2-06 | 17.00 | 25.00 | 32.00 | 144.00 | 68.0 | 88.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 4175-25T2-06 | 17.50 | 25.00 | 32.00 | 149.00 | 72.0 | 93.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 4180-25T2-06 | 18.00 | 25.00 | 32.00 | 149.00 | 72.0 | 93.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 4185-25T2-06 | 18.50 | 25.00 | 32.00 | 153.00 | 76.0 | 97.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 4190-25T2-06 | 19.00 | 25.00 | 32.00 | 153.00 | 76.0 | 97.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 4195-25T2-07 | 19.50 | 25.00 | 32.00 | 159.00 | 80.0 | 103.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 4200-25T2-07 | 20.00 | 25.00 | 32.00 | 159.00 | 80.0 | 103.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 4205-25T2-07 | 20.50 | 25.00 | 32.00 | 163.00 | 84.0 | 107.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 4210-25T2-07 | 21.00 | 25.00 | 32.00 | 163.00 | 84.0 | 107.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 4215-25T2-07 | 21.50 | 25.00 | 32.00 | 167.00 | 88.0 | 111.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 4220-25T2-07 | 22.00 | 25.00 | 32.00 | 167.00 | 88.0 | 111.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 4225-25T2-08 | 22.50 | 25.00 | 32.00 | 170.00 | 92.0 | 114.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4230-25T2-08 | 23.00 | 25.00 | 32.00 | 170.00 | 92.0 | 114.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4230-32T2-08 | 23.00 | 32.00 | 40.00 | 170.00 | 92.0 | 114.0 | 56.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 4235-25T2-08 | 23.50 | 25.00 | 32.00 | 174.00 | 96.0 | 118.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4235-32T2-08 | 23.50 | 32.00 | 40.00 | 174.00 | 96.0 | 118.0 | 56.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 4240-25T2-08 | 24.00 | 25.00 | 32.00 | 174.00 | 96.0 | 118.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4240-32T2-08 | 24.00 | 32.00 | 40.00 | 178.00 | 96.0 | 118.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 4245-25T2-08 | 24.50 | 25.00 | 32.00 | 178.00 | 100.0 | 122.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4245-32T2-08 | 24.50 | 32.00 | 40.00 | 182.00 | 100.0 | 122.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 4250-25T2-08 | 25.00 | 25.00 | 32.00 | 178.00 | 100.0 | 122.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4250-32T2-08 | 25.00 | 32.00 | 40.00 | 182.00 | 100.0 | 122.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 4254-25T2-08 | 25.40 | 25.00 | 32.00 | 178.00 | 100.0 | 122.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4255-25T2-08 | 25.50 | 25.00 | 32.00 | 181.00 | 104.0 | 125.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4255-32T2-08 | 25.50 | 32.00 | 40.00 | 185.00 | 104.0 | 125.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 4260-25T2-08 | 26.00 | 25.00 | 32.00 | 181.00 | 104.0 | 125.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 4260-32T2-08 | 26.00 | 32.00 | 40.00 | 185.00 | 104.0 | 125.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 4265-25T2-09 | 26.50 | 25.00 | 40.00 | 187.00 | 108.0 | 131.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 4265-32T2-09 | 26.50 | 32.00 | 40.00 | 191.00 | 108.0 | 131.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4270-25T2-09 | 27.00 | 25.00 | 40.00 | 187.00 | 108.0 | 131.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 4270-32T2-09 | 27.00 | 32.00 | 40.00 | 191.00 | 108.0 | 131.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4275-25T2-09 | 27.50 | 25.00 | 40.00 | 191.00 | 112.0 | 135.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 4275-32T2-09 | 27.50 | 32.00 | 40.00 | 195.00 | 112.0 | 135.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4280-25T2-09 | 28.00 | 25.00 | 40.00 | 191.00 | 112.0 | 135.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 4280-32T2-09 | 28.00 | 32.00 | 40.00 | 195.00 | 112.0 | 135.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4285-25T2-09 | 28.50 | 25.00 | 40.00 | 195.00 | 116.0 | 139.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 4285-32T2-09 | 28.50 | 32.00 | 40.00 | 199.00 | 116.0 | 139.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4286-32T2-09 | 28.60 | 32.00 | 40.00 | 199.00 | 116.0 | 139.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4290-25T2-09 | 29.00 | 25.00 | 40.00 | 195.00 | 116.0 | 139.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 4290-32T2-09 | 29.00 | 32.00 | 40.00 | 199.00 | 116.0 | 139.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4295-32T2-09 | 29.50 | 32.00 | 40.00 | 203.00 | 120.0 | 143.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4300-32T2-09 | 30.00 | 32.00 | 40.00 | 203.00 | 120.0 | 143.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4305-32T2-09 | 30.50 | 32.00 | 40.00 | 207.00 | 124.0 | 147.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4310-32T2-09 | 31.00 | 32.00 | 40.00 | 207.00 | 124.0 | 147.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 4318-32T2-11 | 31.80 | 32.00 | 40.00 | 211.00 | 128.0 | 151.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 4320-32T2-11 | 32.00 | 32.00 | 40.00 | 211.00 | 128.0 | 151.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 4320-40T2-11 | 32.00 | 40.00 | 50.00 | 221.00 | 128.0 | 151.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 4330-32T2-11 | 33.00 | 32.00 | 40.00 | 215.00 | 132.0 | 155.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 4330-40T2-11 | 33.00 | 40.00 | 50.00 | 225.00 | 132.0 | 155.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 4340-32T2-11 | 34.00 | 32.00 | 40.00 | 219.00 | 136.0 | 159.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 4340-40T2-11 | 34.00 | 40.00 | 50.00 | 229.00 | 136.0 | 159.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 4349-40T2-11 | 34.90 | 40.00 | 50.00 | 233.00 | 140.0 | 163.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 4350-32T2-11 | 35.00 | 32.00 | 40.00 | 223.00 | 140.0 | 163.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 4350-40T2-11 | 35.00 | 40.00 | 50.00 | 233.00 | 140.0 | 163.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 4360-32T2-11 | 36.00 | 32.00 | 40.00 | 227.00 | 144.0 | 167.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 4360-40T2-11 | 36.00 | 40.00 | 50.00 | 237.00 | 144.0 | 167.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 4370-32T2-13 | 37.00 | 32.00 | 50.00 | 236.00 | 148.0 | 176.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 4370-40T2-13 | 37.00 | 40.00 | 50.00 | 246.00 | 148.0 | 176.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4371-40T2-13 | 37.10 | 40.00 | 50.00 | 246.00 | 148.0 | 176.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4380-32T2-13 | 38.00 | 32.00 | 50.00 | 240.00 | 152.0 | 180.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 4380-40T2-13 | 38.00 | 40.00 | 50.00 | 250.00 | 152.0 | 180.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4381-40T2-13 | 38.10 | 40.00 | 50.00 | 250.00 | 152.0 | 180.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4390-32T2-13 | 39.00 | 32.00 | 50.00 | 244.00 | 156.0 | 184.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 4390-40T2-13 | 39.00 | 40.00 | 50.00 | 254.00 | 156.0 | 184.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4400-32T2-13 | 40.00 | 32.00 | 50.00 | 248.00 | 160.0 | 188.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 4400-40T2-13 | 40.00 | 40.00 | 50.00 | 258.00 | 160.0 | 188.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4410-40T2-13 | 41.00 | 40.00 | 50.00 | 262.00 | 164.0 | 192.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4413-40T2-13 | 41.30 | 40.00 | 50.00 | 262.00 | 164.0 | 192.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4420-40T2-13 | 42.00 | 40.00 | 50.00 | 266.00 | 168.0 | 196.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4429-40T2-13 | 42.90 | 40.00 | 50.00 | 270.00 | 172.0 | 200.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4430-40T2-13 | 43.00 | 40.00 | 50.00 | 270.00 | 172.0 | 200.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 4440-40T2-15 | 44.00 | 40.00 | 60.00 | 281.00 | 176.0 | 211.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4445-40T2-15 | 44.50 | 40.00 | 60.00 | 285.00 | 180.0 | 215.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4450-40T2-15 | 45.00 | 40.00 | 60.00 | 285.00 | 180.0 | 215.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4460-40T2-15 | 46.00 | 40.00 | 60.00 | 289.00 | 184.0 | 219.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4470-40T2-15 | 47.00 | 40.00 | 60.00 | 293.00 | 188.0 | 223.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4476-40T2-15 | 47.60 | 40.00 | 60.00 | 297.00 | 192.0 | 227.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4480-40T2-15 | 48.00 | 40.00 | 60.00 | 297.00 | 192.0 | 227.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4490-40T2-15 | 49.00 | 40.00 | 60.00 | 301.00 | 196.0 | 231.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4500-40T2-15 | 50.00 | 40.00 | 60.00 | 305.00 | 200.0 | 235.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 4508-40T2-15 | 50.80 | 40.00 | 60.00 | 309.00 | 204.0 | 239.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
