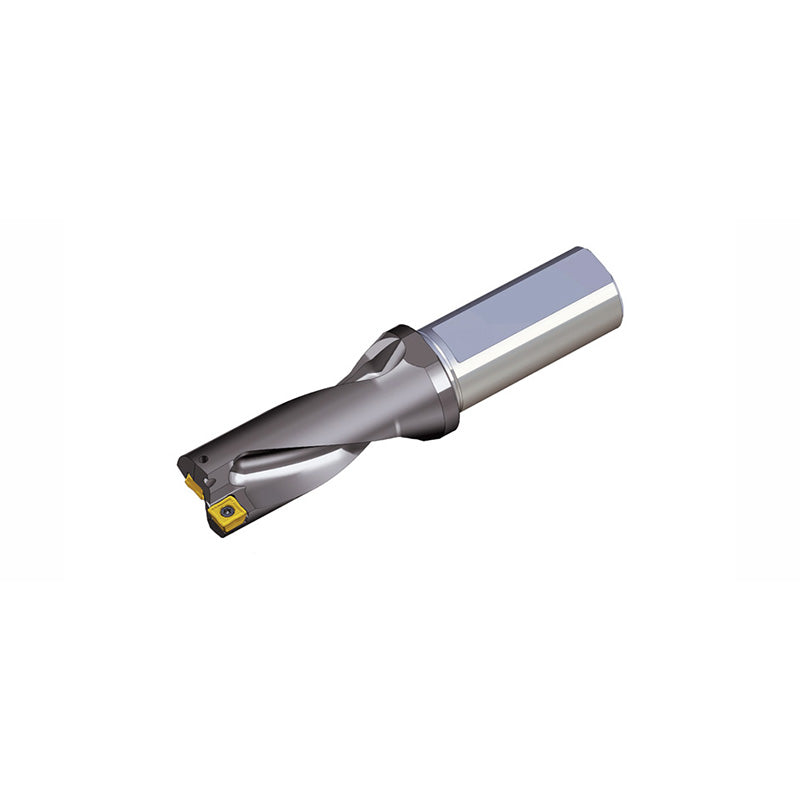

TOP-3XD (DIA 12-50) Indexable drills with unique square inserts & coolant holes, drilling depth 3xD
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Next generation indexable drill
» Remarkable machinability with high stability
» Twisted coolant channels: Improved chip evacuation and hole quality
» Applicable to a variety of materials
» Enhanced insert durability with new grade (TT9080)
» One insert for both internal and external pockets

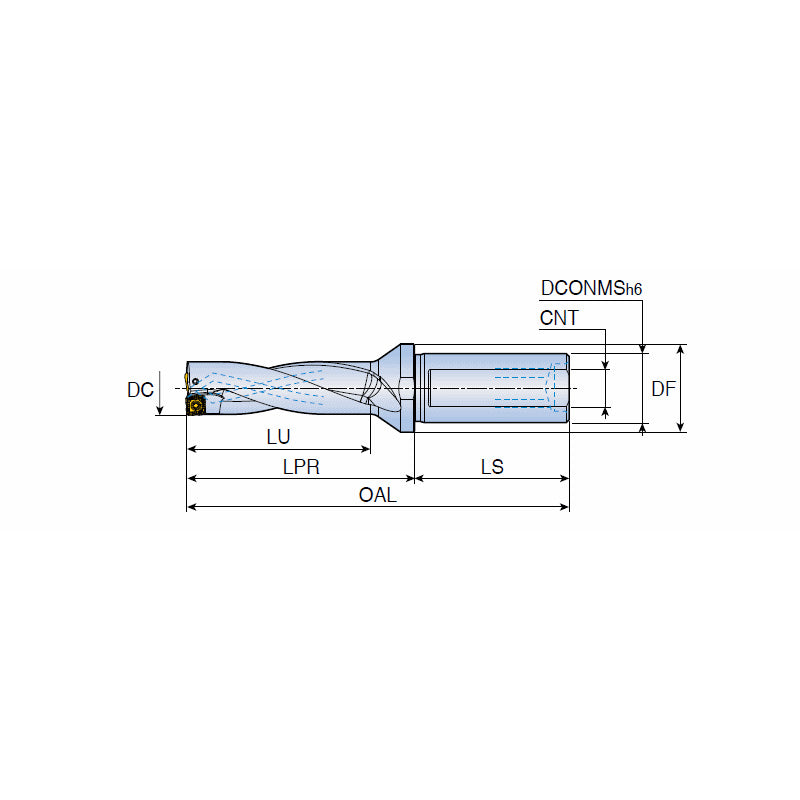

| Designation | DC | DCONMS | DF | OAL | LU | LPR | LS | CNT | MIID |
|---|---|---|---|---|---|---|---|---|---|
| TOP 3120-20T2-04 | 12.00 | 20.00 | 25.00 | 106.00 | 36.0 | 56.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 3125-20T2-04 | 12.50 | 20.00 | 25.00 | 109.00 | 39.0 | 59.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 3130-20T2-04 | 13.00 | 20.00 | 25.00 | 109.00 | 39.0 | 59.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 3135-20T2-04 | 13.50 | 20.00 | 25.00 | 110.00 | 42.0 | 60.0 | 50.0 | M13X1.0 | SOMT 040204 DP |
| TOP 3140-20T2-05 | 14.00 | 20.00 | 25.00 | 110.00 | 42.0 | 60.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 3145-20T2-05 | 14.50 | 20.00 | 25.00 | 114.00 | 45.0 | 64.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 3150-20T2-05 | 15.00 | 20.00 | 25.00 | 114.00 | 45.0 | 64.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 3155-20T2-05 | 15.50 | 20.00 | 25.00 | 118.00 | 48.0 | 68.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 3160-20T2-05 | 16.00 | 20.00 | 25.00 | 118.00 | 48.0 | 68.0 | 50.0 | M13X1.0 | SOMT 050204 DP |
| TOP 3165-25T2-06 | 16.50 | 25.00 | 32.00 | 127.00 | 51.0 | 71.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 3167-25T2-06 | 16.70 | 25.00 | 32.00 | 127.00 | 51.0 | 71.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 3170-25T2-06 | 17.00 | 25.00 | 32.00 | 127.00 | 51.0 | 71.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 3175-25T2-06 | 17.50 | 25.00 | 32.00 | 131.00 | 54.0 | 75.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 3180-25T2-06 | 18.00 | 25.00 | 32.00 | 131.00 | 54.0 | 75.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 3185-25T2-06 | 18.50 | 25.00 | 32.00 | 134.00 | 57.0 | 78.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 3190-25T2-06 | 19.00 | 25.00 | 32.00 | 134.00 | 57.0 | 78.0 | 56.0 | M16X1.5 | SOMT 060204 DP |
| TOP 3195-25T2-07 | 19.50 | 25.00 | 32.00 | 139.00 | 60.0 | 83.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 3200-25T2-07 | 20.00 | 25.00 | 32.00 | 139.00 | 60.0 | 83.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 3205-25T2-07 | 20.50 | 25.00 | 32.00 | 142.00 | 63.0 | 86.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 3210-25T2-07 | 21.00 | 25.00 | 32.00 | 142.00 | 63.0 | 86.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 3215-25T2-07 | 21.50 | 25.00 | 32.00 | 145.00 | 66.0 | 89.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 3220-25T2-07 | 22.00 | 25.00 | 32.00 | 145.00 | 66.0 | 89.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 3222-25T2-07 | 22.20 | 25.00 | 32.00 | 145.00 | 66.0 | 89.0 | 56.0 | M16X1.5 | SOMT 070306 DP |
| TOP 3225-25T2-08 | 22.50 | 25.00 | 32.00 | 147.00 | 69.0 | 91.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3230-25T2-08 | 23.00 | 25.00 | 32.00 | 147.00 | 69.0 | 91.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3230-32T2-08 | 23.00 | 32.00 | 40.00 | 151.00 | 69.0 | 91.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 3235-25T2-08 | 23.50 | 25.00 | 32.00 | 150.00 | 72.0 | 94.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3235-32T2-08 | 23.50 | 32.00 | 40.00 | 154.00 | 72.0 | 94.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 3240-25T2-08 | 24.00 | 25.00 | 32.00 | 150.00 | 72.0 | 94.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3240-32T2-08 | 24.00 | 32.00 | 40.00 | 154.00 | 72.0 | 94.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 3245-25T2-08 | 24.50 | 25.00 | 32.00 | 153.00 | 75.0 | 97.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3245-32T2-08 | 24.50 | 32.00 | 40.00 | 157.00 | 75.0 | 97.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 3250-25T2-08 | 25.00 | 25.00 | 32.00 | 153.00 | 75.0 | 97.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3250-32T2-08 | 25.00 | 32.00 | 40.00 | 157.00 | 75.0 | 97.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 3254-25T2-08 | 25.40 | 25.00 | 32.00 | 153.00 | 75.0 | 97.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3255-25T2-08 | 25.50 | 25.00 | 32.00 | 155.00 | 78.0 | 99.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3255-32T2-08 | 25.50 | 32.00 | 40.00 | 159.00 | 78.0 | 99.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 3260-25T2-08 | 26.00 | 25.00 | 32.00 | 155.00 | 78.0 | 99.0 | 56.0 | M16X1.5 | SOMT 08T306 DP |
| TOP 3260-32T2-08 | 26.00 | 32.00 | 32.00 | 159.00 | 78.0 | 99.0 | 60.0 | M22X2.0 | SOMT 08T306 DP |
| TOP 3265-25T2-09 | 26.50 | 25.00 | 40.00 | 160.00 | 81.0 | 104.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 3265-32T2-09 | 26.50 | 32.00 | 40.00 | 164.00 | 81.0 | 104.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3270-25T2-09 | 27.00 | 25.00 | 40.00 | 160.00 | 81.0 | 104.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 3270-32T2-09 | 27.00 | 32.00 | 40.00 | 164.00 | 81.0 | 104.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3275-25T2-09 | 27.50 | 25.00 | 40.00 | 163.00 | 84.0 | 107.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 3275-32T2-09 | 27.50 | 32.00 | 40.00 | 167.00 | 84.0 | 107.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3280-25T2-09 | 28.00 | 25.00 | 40.00 | 163.00 | 84.0 | 107.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 3280-32T2-09 | 28.00 | 32.00 | 40.00 | 167.00 | 84.0 | 107.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3285-25T2-09 | 28.50 | 25.00 | 40.00 | 166.00 | 87.0 | 110.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 3285-32T2-09 | 28.50 | 32.00 | 40.00 | 170.00 | 87.0 | 110.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3290-25T2-09 | 29.00 | 25.00 | 40.00 | 166.00 | 87.0 | 110.0 | 56.0 | M16X1.5 | SOMT 09T308 DP |
| TOP 3290-32T2-09 | 29.00 | 32.00 | 40.00 | 170.00 | 87.0 | 110.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3295-32T2-09 | 29.50 | 32.00 | 40.00 | 193.00 | 90.0 | 113.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3300-32T2-09 | 30.00 | 32.00 | 40.00 | 173.00 | 90.0 | 113.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3305-32T2-09 | 30.50 | 32.00 | 40.00 | 173.00 | 90.0 | 116.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3310-32T2-09 | 31.00 | 32.00 | 40.00 | 176.00 | 93.0 | 116.0 | 60.0 | M22X2.0 | SOMT 09T308 DP |
| TOP 3320-32T2-11 | 32.00 | 32.00 | 40.00 | 176.00 | 93.0 | 119.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 3320-40T2-11 | 32.00 | 40.00 | 50.00 | 189.00 | 96.0 | 119.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 3330-32T2-11 | 33.00 | 32.00 | 40.00 | 179.00 | 96.0 | 122.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 3330-40T2-11 | 33.00 | 40.00 | 50.00 | 192.00 | 99.0 | 122.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 3340-32T2-11 | 34.00 | 32.00 | 40.00 | 182.00 | 99.0 | 125.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 3340-40T2-11 | 34.00 | 40.00 | 50.00 | 195.00 | 102.0 | 125.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 3350-32T2-11 | 35.00 | 32.00 | 40.00 | 188.00 | 105.0 | 128.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 3350-40T2-11 | 35.00 | 40.00 | 50.00 | 198.00 | 105.0 | 128.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 3360-32T2-11 | 36.00 | 32.00 | 40.00 | 191.00 | 108.0 | 131.0 | 60.0 | M22X2.0 | SOMT 11T308 DP |
| TOP 3360-40T2-11 | 36.00 | 40.00 | 50.00 | 201.00 | 108.0 | 131.0 | 70.0 | M30X2.0 | SOMT 11T308 DP |
| TOP 3370-32T2-13 | 37.00 | 32.00 | 50.00 | 199.00 | 111.0 | 139.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 3370-40T2-13 | 37.00 | 40.00 | 50.00 | 209.00 | 111.0 | 139.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 3380-32T2-13 | 38.00 | 32.00 | 50.00 | 202.00 | 114.0 | 142.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 3380-40T2-13 | 38.00 | 40.00 | 50.00 | 212.00 | 114.0 | 142.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 3390-32T2-13 | 39.00 | 32.00 | 50.00 | 205.00 | 117.0 | 145.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 3390-40T2-13 | 39.00 | 40.00 | 50.00 | 215.00 | 117.0 | 145.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 3400-32T2-13 | 40.00 | 32.00 | 50.00 | 208.00 | 120.0 | 148.0 | 60.0 | M22X2.0 | SOMT 130408 DP |
| TOP 3400-40T2-13 | 40.00 | 40.00 | 50.00 | 218.00 | 120.0 | 148.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 3410-40T2-13 | 41.00 | 40.00 | 50.00 | 221.00 | 123.0 | 151.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 3420-40T2-13 | 42.00 | 40.00 | 50.00 | 224.00 | 126.0 | 154.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 3430-40T2-13 | 43.00 | 40.00 | 50.00 | 227.00 | 129.0 | 157.0 | 70.0 | M30X2.0 | SOMT 130408 DP |
| TOP 3440-40T2-15 | 44.00 | 40.00 | 60.00 | 237.00 | 132.0 | 167.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 3450-40T2-15 | 45.00 | 40.00 | 60.00 | 240.00 | 135.0 | 170.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 3460-40T2-15 | 46.00 | 40.00 | 60.00 | 243.00 | 138.0 | 173.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 3470-40T2-15 | 47.00 | 40.00 | 60.00 | 246.00 | 141.0 | 176.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 3480-40T2-15 | 48.00 | 40.00 | 60.00 | 249.00 | 144.0 | 179.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 3490-40T2-15 | 49.00 | 40.00 | 60.00 | 252.00 | 147.0 | 182.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
| TOP 3500-40T2-15 | 50.00 | 40.00 | 60.00 | 255.00 | 150.0 | 185.0 | 70.0 | M30X2.0 | SOMT 150510 DP |
