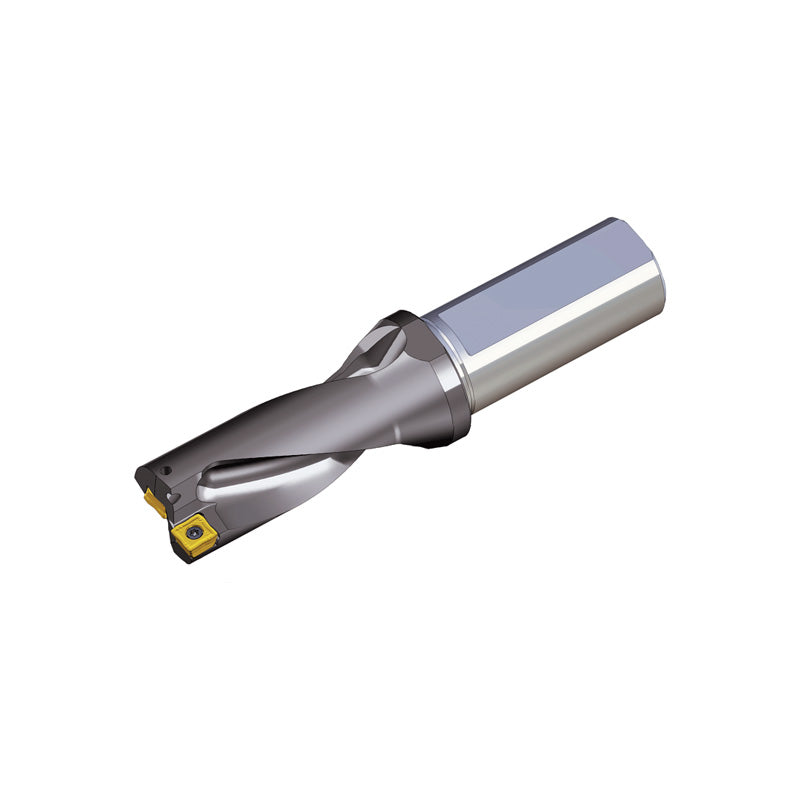

TOP-2XD (DIA 12-50) Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

TOP-2XD (DIA 12-50) Indexable drills with unique square inserts & coolant holes, drilling depth 2xD - Big-tools Industrial Supply Tools for Metal Cutting

TOP-2XD (DIA 12-50) Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

TOP-2XD (DIA 12-50) Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: TOP 2120-20T2-04

Product List

Next generation indexable drill

» Remarkable machinability with high stability
» Twisted coolant channels: Improved chip evacuation and hole quality
» Applicable to a variety of materials
» Enhanced insert durability with new grade (TT9080)
» One insert for both internal and external pockets

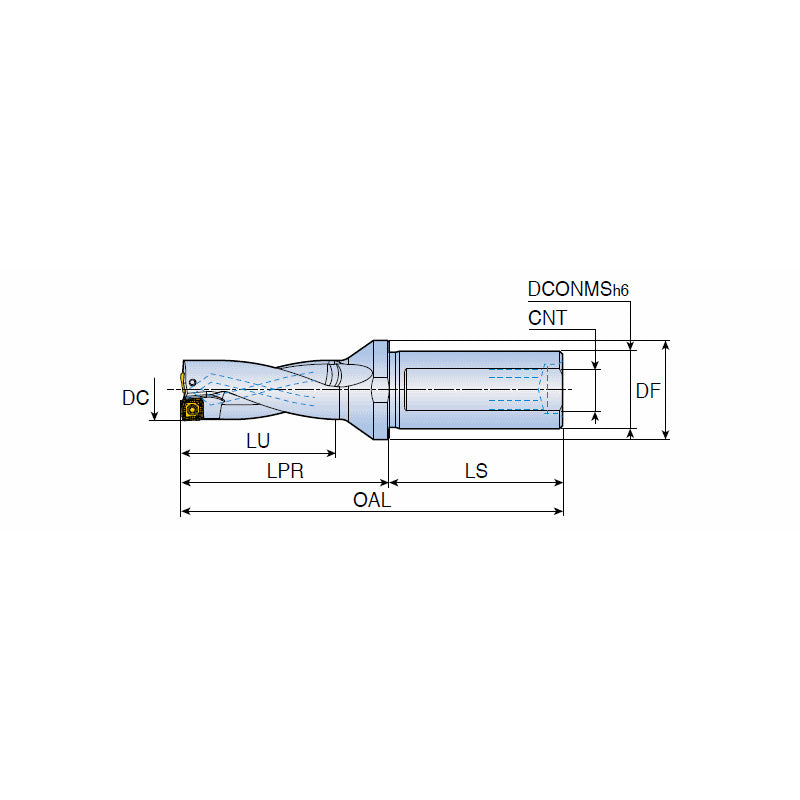

Designation DC DCONMS DF OAL LU LPR LS CNT MIID
TOP 2120-20T2-04 12.00 20.00 25.00 94.00 24.0 44.0 50.0 M13X1.0 SOMT 040204 DP
TOP 2125-20T2-04 12.50 20.00 25.00 96.00 26.0 46.0 50.0 M13X1.0 SOMT 040204 DP
TOP 2130-20T2-04 13.00 20.00 25.00 96.00 26.0 46.0 50.0 M13X1.0 SOMT 040204 DP
TOP 2135-20T2-04 13.50 20.00 25.00 96.00 28.0 46.0 50.0 M13X1.0 SOMT 040204 DP
TOP 2140-20T2-05 14.00 20.00 25.00 96.00 28.0 46.0 50.0 M13X1.0 SOMT 050204 DP
TOP 2145-20T2-05 14.50 20.00 25.00 99.00 30.0 49.0 50.0 M13X1.0 SOMT 050204 DP
TOP 2150-20T2-05 15.00 20.00 25.00 99.00 30.0 49.0 50.0 M13X1.0 SOMT 050204 DP
TOP 2155-20T2-05 15.50 20.00 25.00 102.00 32.0 52.0 50.0 M13X1.0 SOMT 050204 DP
TOP 2160-20T2-05 16.00 20.00 25.00 102.00 32.0 52.0 50.0 M13X1.0 SOMT 050204 DP
TOP 2165-25T2-06 16.50 25.00 32.00 110.00 34.0 54.0 56.0 M16X1.5 SOMT 060204 DP
TOP 2170-25T2-06 17.00 25.00 32.00 110.00 34.0 54.0 56.0 M16X1.5 SOMT 060204 DP
TOP 2175-25T2-06 17.50 25.00 32.00 113.00 36.0 57.0 56.0 M16X1.5 SOMT 060204 DP
TOP 2180-25T2-06 18.00 25.00 32.00 113.00 36.0 57.0 56.0 M16X1.5 SOMT 060204 DP
TOP 2185-25T2-06 18.50 25.00 32.00 115.00 38.0 59.0 56.0 M16X1.5 SOMT 060204 DP
TOP 2190-25T2-06 19.00 25.00 32.00 115.00 38.0 59.0 56.0 M16X1.5 SOMT 060204 DP
TOP 2195-25T2-07 19.50 25.00 32.00 119.00 40.0 63.0 56.0 M16X1.5 SOMT 070306 DP
TOP 2200-25T2-07 20.00 25.00 32.00 119.00 40.0 63.0 56.0 M16X1.5 SOMT 070306 DP
TOP 2205-25T2-07 20.50 25.00 32.00 121.00 42.0 65.0 56.0 M16X1.5 SOMT 070306 DP
TOP 2210-25T2-07 21.00 25.00 32.00 121.00 42.0 65.0 56.0 M16X1.5 SOMT 070306 DP
TOP 2215-25T2-07 21.50 25.00 32.00 123.00 44.0 67.0 56.0 M16X1.5 SOMT 070306 DP
TOP 2220-25T2-07 22.00 25.00 32.00 123.00 44.0 67.0 56.0 M16X1.5 SOMT 070306 DP
TOP 2225-25T2-08 22.50 25.00 32.00 124.00 46.0 68.0 56.0 M16X1.5 SOMT 08T306 DP
TOP 2230-25T2-08 23.00 25.00 32.00 124.00 46.0 68.0 56.0 M16X1.5 SOMT 08T306 DP
TOP 2230-32T2-08 23.00 32.00 40.00 128.00 46.0 68.0 60.0 M22X2.0 SOMT 08T306 DP
TOP 2235-25T2-08 23.50 25.00 32.00 126.00 48.0 70.0 56.0 M22X2.0 SOMT 08T306 DP
TOP 2235-32T2-08 23.50 32.00 40.00 130.00 48.0 70.0 60.0 M16X1.5 SOMT 08T306 DP
TOP 2240-25T2-08 24.00 25.00 32.00 126.00 48.0 70.0 56.0 M16X1.5 SOMT 08T306 DP
TOP 2240-32T2-08 24.00 32.00 40.00 130.00 48.0 70.0 60.0 M22X2.0 SOMT 08T306 DP
TOP 2245-25T2-08 24.50 25.00 32.00 128.00 50.0 72.0 56.0 M22X2.0 SOMT 08T306 DP
TOP 2245-32T2-08 24.50 32.00 40.00 132.00 50.0 72.0 60.0 M16X1.5 SOMT 08T306 DP
TOP 2250-25T2-08 25.00 25.00 32.00 128.00 50.0 72.0 56.0 M16X1.5 SOMT 08T306 DP
TOP 2250-32T2-08 25.00 32.00 40.00 132.00 50.0 72.0 60.0 M22X2.0 SOMT 08T306 DP
TOP 2255-25T2-08 25.50 25.00 32.00 129.00 52.0 73.0 56.0 M22X2.0 SOMT 08T306 DP
TOP 2255-32T2-08 25.50 32.00 40.00 133.00 52.0 73.0 60.0 M16X1.5 SOMT 08T306 DP
TOP 2260-25T2-08 26.00 25.00 32.00 129.00 52.0 73.0 56.0 M16X1.5 SOMT 08T306 DP
TOP 2260-32T2-08 26.00 32.00 40.00 133.00 52.0 73.0 60.0 M22X2.0 SOMT 08T306 DP
TOP 2265-32T2-09 26.50 32.00 40.00 137.00 54.0 77.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2270-25T2-09 27.00 25.00 40.00 133.00 54.0 77.0 56.0 M16X1.5 SOMT 09T308 DP
TOP 2270-32T2-09 27.00 32.00 40.00 137.00 54.0 77.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2275-32T2-09 27.50 32.00 40.00 139.00 56.0 79.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2280-25T2-09 28.00 25.00 40.00 135.00 56.0 79.0 56.0 M16X1.5 SOMT 09T308 DP
TOP 2280-32T2-09 28.00 32.00 40.00 139.00 56.0 79.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2285-32T2-09 28.50 32.00 40.00 141.00 58.0 81.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2290-25T2-09 29.00 25.00 40.00 137.00 58.0 81.0 56.0 M16X1.5 SOMT 09T308 DP
TOP 2290-32T2-09 29.00 32.00 40.00 141.00 58.0 81.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2295-32T2-09 29.50 32.00 40.00 143.00 60.0 83.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2300-32T2-09 30.00 32.00 40.00 143.00 60.0 83.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2305-32T2-09 30.50 32.00 40.00 145.00 62.0 85.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2310-32T2-09 31.00 32.00 40.00 145.00 62.0 85.0 60.0 M22X2.0 SOMT 09T308 DP
TOP 2320-32T2-11 32.00 32.00 40.00 147.00 64.0 87.0 60.0 M22X2.0 SOMT 11T308 DP
TOP 2320-40T2-11 32.00 40.00 50.00 157.00 64.0 87.0 70.0 M30X2.0 SOMT 11T308 DP
TOP 2330-32T2-11 33.00 32.00 40.00 149.00 66.0 89.0 60.0 M22X2.0 SOMT 11T308 DP
TOP 2330-40T2-11 33.00 40.00 50.00 159.00 66.0 89.0 70.0 M30X2.0 SOMT 11T308 DP
TOP 2340-32T2-11 34.00 32.00 40.00 151.00 68.0 91.0 60.0 M22X2.0 SOMT 11T308 DP
TOP 2340-40T2-11 34.00 40.00 50.00 161.00 68.0 91.0 70.0 M30X2.0 SOMT 11T308 DP
TOP 2350-32T2-11 35.00 32.00 40.00 153.00 70.0 93.0 60.0 M22X2.0 SOMT 11T308 DP
TOP 2350-40T2-11 35.00 40.00 50.00 163.00 70.0 93.0 70.0 M30X2.0 SOMT 11T308 DP
TOP 2360-32T2-11 36.00 32.00 40.00 155.00 72.0 95.0 60.0 M22X2.0 SOMT 11T308 DP
TOP 2360-40T2-11 36.00 40.00 50.00 165.00 72.0 95.0 70.0 M30X2.0 SOMT 11T308 DP
TOP 2370-32T2-13 37.00 32.00 50.00 162.00 74.0 102.0 60.0 M22X2.0 SOMT 130408 DP
TOP 2370-40T2-13 37.00 40.00 50.00 172.00 74.0 102.0 70.0 M30X2.0 SOMT 130408 DP
TOP 2380-32T2-13 38.00 32.00 50.00 164.00 76.0 104.0 60.0 M22X2.0 SOMT 130408 DP
TOP 2380-40T2-13 38.00 40.00 50.00 174.00 76.0 104.0 70.0 M30X2.0 SOMT 130408 DP
TOP 2390-32T2-13 39.00 32.00 50.00 166.00 78.0 106.0 60.0 M22X2.0 SOMT 130408 DP
TOP 2390-40T2-13 39.00 40.00 50.00 176.00 78.0 106.0 70.0 M30X2.0 SOMT 130408 DP
TOP 2400-32T2-13 40.00 32.00 50.00 168.00 80.0 108.0 60.0 M22X2.0 SOMT 130408 DP
TOP 2400-40T2-13 40.00 40.00 50.00 178.00 80.0 108.0 70.0 M30X2.0 SOMT 130408 DP
TOP 2410-40T2-13 41.00 40.00 50.00 180.00 82.0 110.0 70.0 M30X2.0 SOMT 130408 DP
TOP 2420-40T2-13 42.00 40.00 50.00 182.00 84.0 112.0 70.0 M30X2.0 SOMT 130408 DP
TOP 2430-40T2-13 43.00 40.00 50.00 184.00 86.0 114.0 70.0 M30X2.0 SOMT 130408 DP
TOP 2440-40T2-15 44.00 40.00 60.00 193.00 88.0 123.0 70.0 M30X2.0 SOMT 150510 DP
TOP 2450-40T2-15 45.00 40.00 60.00 195.00 90.0 125.0 70.0 M30X2.0 SOMT 150510 DP
TOP 2460-40T2-15 46.00 40.00 60.00 197.00 92.0 127.0 70.0 M30X2.0 SOMT 150510 DP
TOP 2470-40T2-15 47.00 40.00 60.00 199.00 94.0 129.0 70.0 M30X2.0 SOMT 150510 DP
TOP 2480-40T2-15 48.00 40.00 60.00 201.00 96.0 131.0 70.0 M30X2.0 SOMT 150510 DP
TOP 2490-40T2-15 49.00 40.00 60.00 203.00 98.0 133.0 70.0 M30X2.0 SOMT 150510 DP
TOP 2500-40T2-15 50.00 40.00 60.00 193.00 100.0 135.0 70.0 M30X2.0 SOMT 150510 DP
