Pairs well with

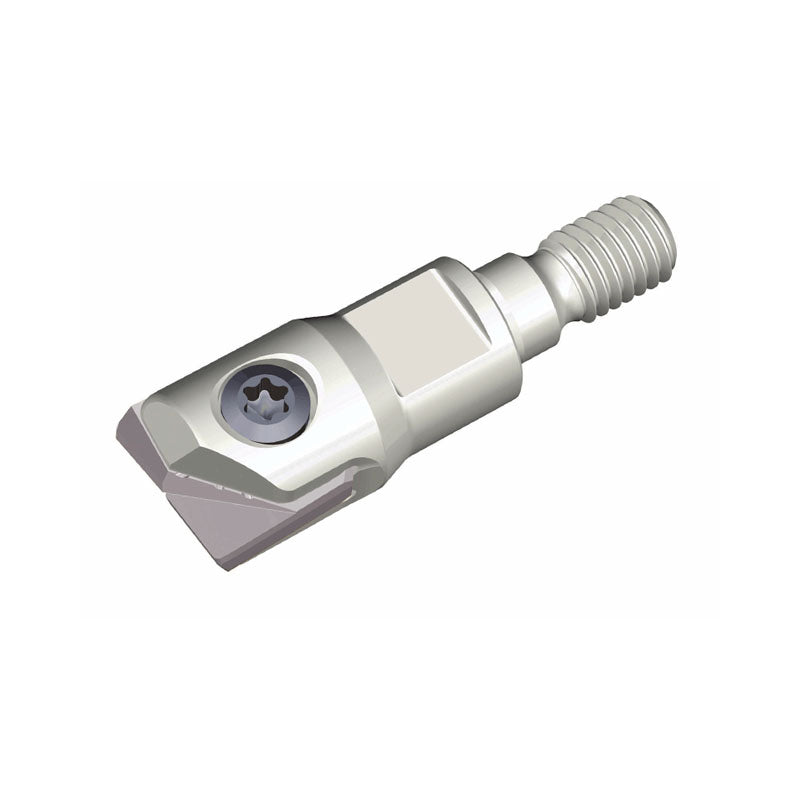

TNFR-M Modular end mill holders dedicated for corner R of NFR and finishing operations with T-FLEXTEC adaptations
TNFR-M Modular end mill holders dedicated for corner R of NFR and finishing operations with T-FLEXTEC adaptations
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
High-Precision and Excellent Run-out Insert for Finishing Applications
» High-precision and excellent run-out blade type inserts
» Asymmetric pocket design enables high-precision and better clamping
» Internal coolant channels offer good chip evacuation and better tool life
» Various steel and tungsten carbide shanks for deep cavity machining
» Profiling and various applications

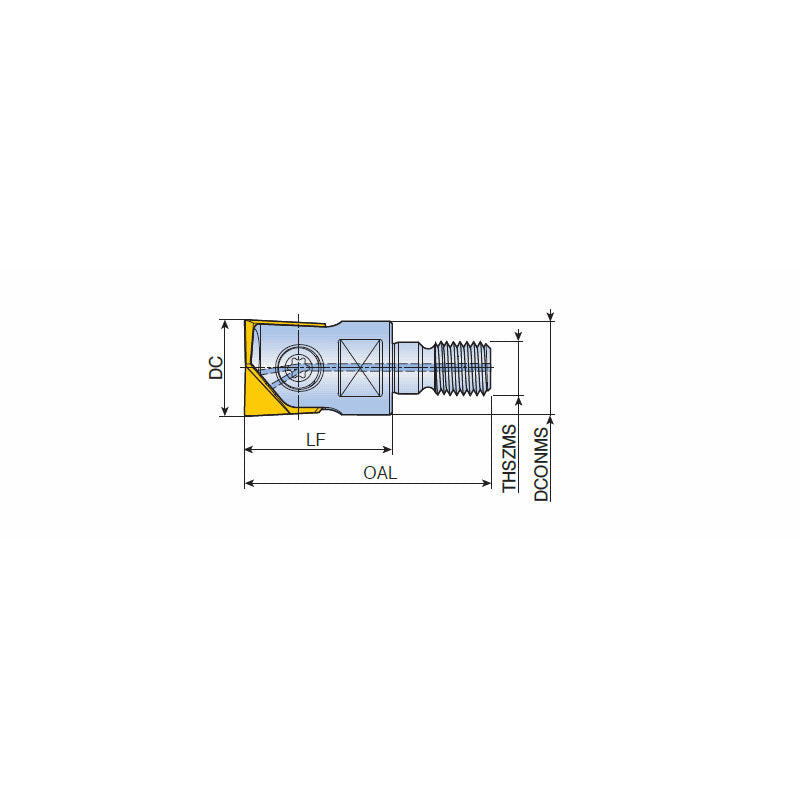

| Designation | DC | DCONMS | LF | OAL | THSZMS | Weight/kg | MIID |
|---|---|---|---|---|---|---|---|
| TNFR 100-M06 | 10.00 | 9.70 | 20.00 | 34.50 | M06 | 0.01 | NFR 100A-R03 |
| TNFR 120-M06 | 12.00 | 11.50 | 23.00 | 37.50 | M06 | 0.02 | NFR 120A-R03 |
| TNFR 120-M08 | 12.00 | 13.00 | 23.00 | 40.50 | M08 | 0.02 | NFR 120A-R03 |
| TNFR 160-M08 | 16.00 | 13.00 | 30.00 | 47.50 | M08 | 0.04 | NFR 160A-R03 |
| TNFR 200-M10 | 20.00 | 19.00 | 30.00 | 50.00 | M10 | 0.07 | NFR 200A-R03 |
| TNFR 250-M12 | 25.00 | 24.00 | 35.00 | 57.00 | M12 | 0.13 | NFR 250A-R03 |
| TNFR 320-M16 | 32.00 | 29.50 | 43.00 | 68.00 | M16 | 0.27 | NFR 300A-R05 |
