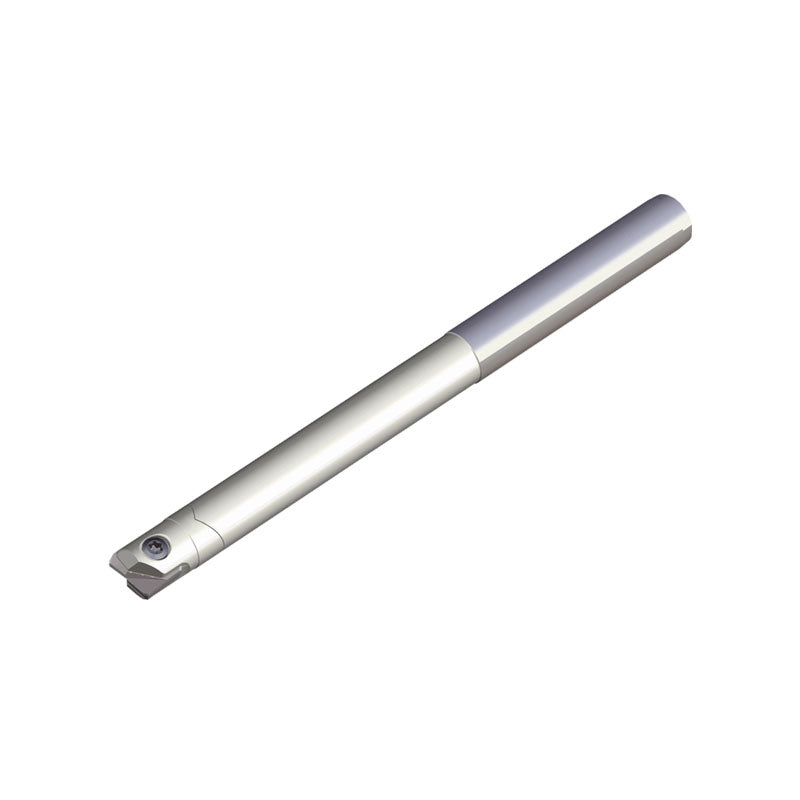

TNFR...-CT-L... End mill holders for finishing with corner radius inserts of NFR and carbide shank of better rigidity
TNFR...-CT-L... End mill holders for finishing with corner radius inserts of NFR and carbide shank of better rigidity
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
High-Precision and Excellent Run-out Insert for Finishing Applications
» High-precision and excellent run-out blade type inserts
» Asymmetric pocket design enables high-precision and better clamping
» Internal coolant channels offer good chip evacuation and better tool life
» Various steel and tungsten carbide shanks for deep cavity machining
» Profiling and various applications

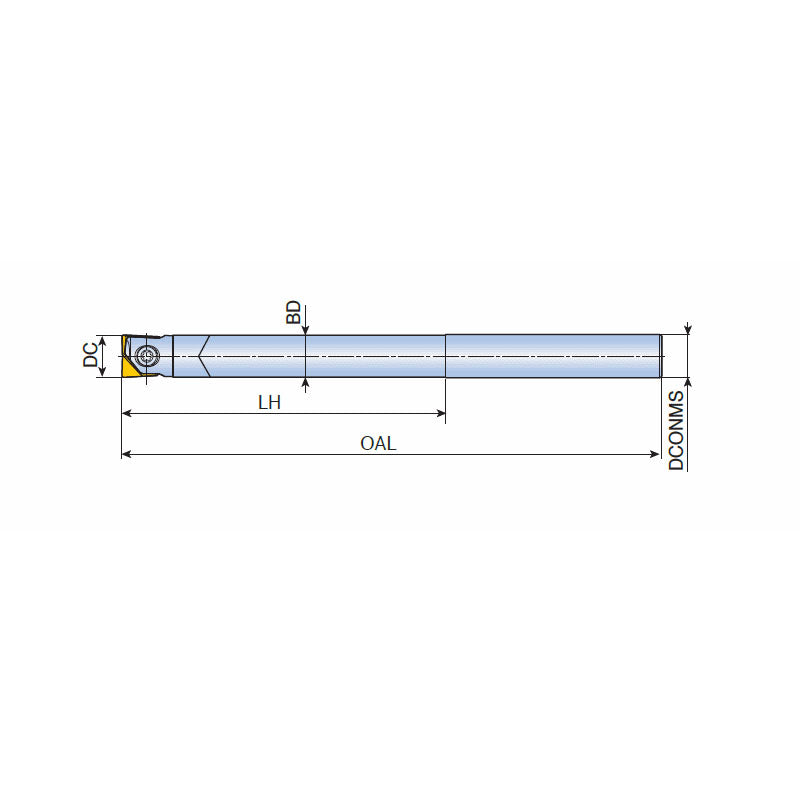

| Designation | DC | DCONMS | BD | OAL | LH | Weight/kg | MIID |
|---|---|---|---|---|---|---|---|
| TNFR 060-06-CT-L60 | 6.00 | 6.00 | 5.80 | 60.00 | 15.00 | 0.02 | NFR 060A-R03 |
| TNFR 060-06-CT-L80 | 6.00 | 6.00 | 5.80 | 80.00 | 20.00 | 0.03 | NFR 060A-R03 |
| TNFR 080-08-CT-L140 | 8.00 | 8.00 | 7.80 | 140.00 | 75.00 | 0.09 | NFR 080A-R03 |
| TNFR 100-10-CT-L140 | 10.00 | 10.00 | 9.70 | 140.00 | 75.00 | 0.14 | NFR 100A-R03 |
| TNFR 120-12-CT-L160 | 12.00 | 12.00 | 11.70 | 160.00 | 95.00 | 0.23 | NFR 120A-R03 |
| TNFR 160-16-CT-L200 | 16.00 | 16.00 | 15.50 | 200.00 | 120.00 | 0.52 | NFR 160A-R03 |
| TNFR 200-20-CT-L250 | 20.00 | 20.00 | 19.50 | 250.00 | 160.00 | 1.02 | NFR 200A-R03 |
| TNFR 250-25-CT-L300 | 25.00 | 25.00 | 24.50 | 300.00 | 200.00 | 1.93 | NFR 250A-R03 |
| TNFR 320-32-CT-L350 | 32.00 | 32.00 | 31.50 | 350.00 | 230.00 | 3.69 | NFR 300A-R05 |
