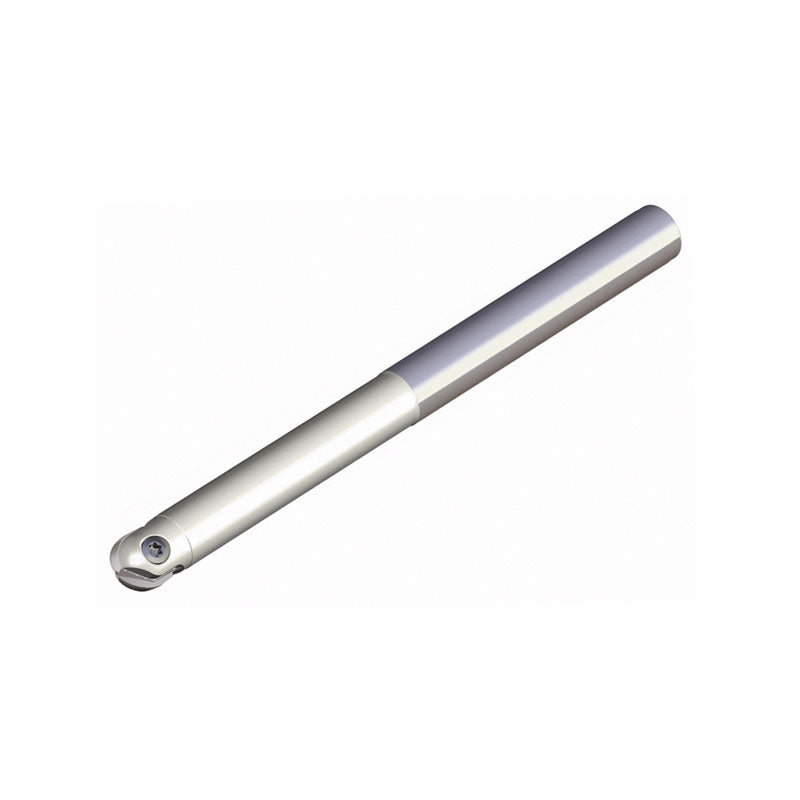

TNF End mill holders with cylindrical steel shank & NFB or NFR inserts for finishing operations
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
High-Precision and Excellent Run-out Insert for Finishing Applications
» High-precision and excellent run-out blade type inserts
» Asymmetric pocket design enables high-precision and better clamping
» Internal coolant channels offer good chip evacuation and better tool life
» Various steel and tungsten carbide shanks for deep cavity machining
» Profiling and various applications

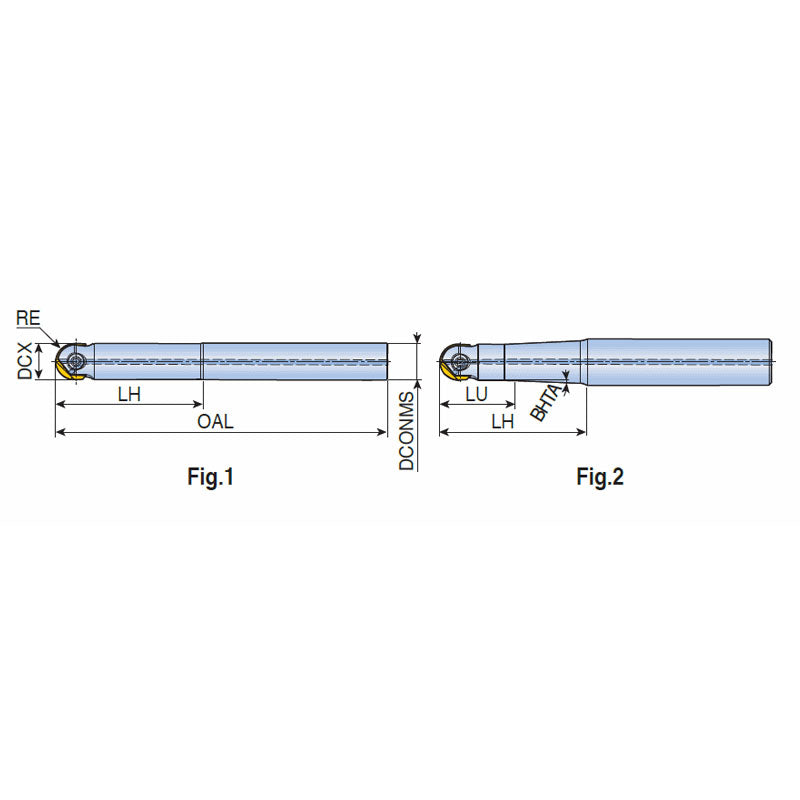

| Designation | DCX | RE | DCONMS | OAL | LH | LU | BHTA | Fig. | Weight/kg | MIID |
|---|---|---|---|---|---|---|---|---|---|---|
| TNF 060-10M | 6.00 | 3.00 | 10.00 | 80.00 | 30.00 | 15.00 | 7.5 | 2 | 0.04 | NFB 060-SM |
| TNF 060-30-L80 | 6.00 | 3.00 | 10.00 | 80.00 | 36.30 | 30.00 | - | 1 | 0.04 | NFB 060-SM |
| TNF 080-08S | 8.00 | 4.00 | 8.00 | 90.00 | 20.00 | - | 9.5 | 1 | 0.03 | NFB 080-SM |
| TNF 080-12M | 8.00 | 4.00 | 12.00 | 130.00 | 50.00 | 10.00 | 3 | 2 | 0.10 | NFB 080-SM |
| TNF 080-12S | 8.00 | 4.00 | 12.00 | 100.00 | 20.00 | 10.00 | - | 2 | 0.08 | NFB 080-SM |
| TNF 100-10S | 10.00 | 5.00 | 10.00 | 90.00 | 30.00 | - | - | 1 | 0.05 | NFB 100-SM |
| TNF 100-12S | 10.00 | 5.00 | 12.00 | 110.00 | 25.00 | 15.00 | 5 | 2 | 0.09 | NFB 100-SM |
| TNF 100-16M | 10.00 | 5.00 | 16.00 | 130.00 | 60.00 | 15.00 | 3.5 | 2 | 0.16 | NFB 100-SM |
| TNF 120-12M | 12.00 | 6.00 | 12.00 | 180.00 | 60.00 | - | - | 1 | 0.15 | NFB 120-SM |
| TNF 120-12S | 12.00 | 6.00 | 12.00 | 110.00 | 30.00 | - | - | 1 | 0.09 | NFB 120-SM |
| TNF 120-16M | 12.00 | 6.00 | 16.00 | 140.00 | 60.00 | 25.00 | 2.4 | 2 | 0.18 | NFB 120-SM |
| TNF 120-20L | 12.00 | 6.00 | 20.00 | 180.00 | 80.00 | 40.00 | 5 | 2 | 0.33 | NFB 120-SM |
| TNF 160-16L | 16.00 | 8.00 | 16.00 | 200.00 | 100.00 | - | - | 1 | 0.28 | NFB 160-SM |
| TNF 160-16M | 16.00 | 8.00 | 16.00 | 130.00 | 40.00 | - | - | 1 | 0.19 | NFB 160-SM |
| TNF 160-20M | 16.00 | 8.00 | 20.00 | 160.00 | 60.00 | 25.00 | 2.5 | 2 | 0.33 | NFB 160-SM |
| TNF 160-25L | 16.00 | 8.00 | 25.00 | 220.00 | 100.00 | 55.00 | 5 | 2 | 0.62 | NFB 160-SM |
| TNF 200-20L | 20.00 | 10.00 | 20.00 | 220.00 | 70.00 | - | - | 1 | 0.50 | NFB 200-SM |
| TNF 200-20M | 20.00 | 10.00 | 20.00 | 150.00 | 50.00 | - | - | 1 | 0.34 | NFB 200-SM |
| TNF 200-20S | 20.00 | 10.00 | 20.00 | 110.00 | 40.00 | - | - | 1 | 0.24 | NFB 200-SM |
| TNF 200-25L | 20.00 | 10.00 | 25.00 | 220.00 | 110.00 | 45.00 | 1.5 | 2 | 0.68 | NFB 200-SM |
| TNF 200-25M | 20.00 | 10.00 | 25.00 | 180.00 | 80.00 | 40.00 | 2.5 | 2 | 0.56 | NFB 200-SM |
| TNF 250-25M | 25.00 | 12.50 | 25.00 | 170.00 | 70.00 | - | - | 1 | 0.60 | NFB 250-SM |
| TNF 250-25S | 25.00 | 12.50 | 25.00 | 125.00 | 40.00 | - | - | 1 | 0.44 | NFB 250-SM |
| TNF 250-32L | 25.00 | 12.50 | 32.00 | 250.00 | 130.00 | 40.00 | 1.5 | 2 | 1.25 | NFB 250-SM |
| TNF 250-32M | 25.00 | 12.50 | 32.00 | 200.00 | 90.00 | 32.00 | 3 | 2 | 1.03 | NFB 250-SM |
| TNF 300-32-L220 | 30.00 | 15.00 | 32.00 | 220.00 | 100.00 | 55.00 | 1 | 2 | 1.24 | NFB 300-SM |
| TNF 300-32L | 30.00 | 15.00 | 32.00 | 250.00 | 100.00 | 65.00 | 1 | 2 | 1.42 | NFB 300-SM |
| TNF 300-32M | 30.00 | 15.00 | 32.00 | 190.00 | 75.00 | - | - | 1 | 1.07 | NFB 300-SM |
| TNF 300-32S | 30.00 | 15.00 | 32.00 | 140.00 | 55.00 | - | - | 1 | 0.78 | NFB 300-SM |
| TNF 300-32XL | 30.00 | 15.00 | 32.00 | 300.00 | 150.00 | - | - | 1 | 1.67 | NFB 300-SM |
| TNF 320-32L | 32.00 | 16.00 | 32.00 | 250.00 | 60.00 | - | - | 1 | 1.47 | NFB 300-SM |
