Tire Tread Depth Gage - Designed Specifically for Measuring Tire Tread Depth

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

Tire Tread Depth Gage - Designed Specifically for Measuring Tire Tread Depth

Tire Tread Depth Gage - Designed Specifically for Measuring Tire Tread Depth

Tire Tread Depth Gage - Designed Specifically for Measuring Tire Tread Depth

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: 571-100-20

Features & Benefits

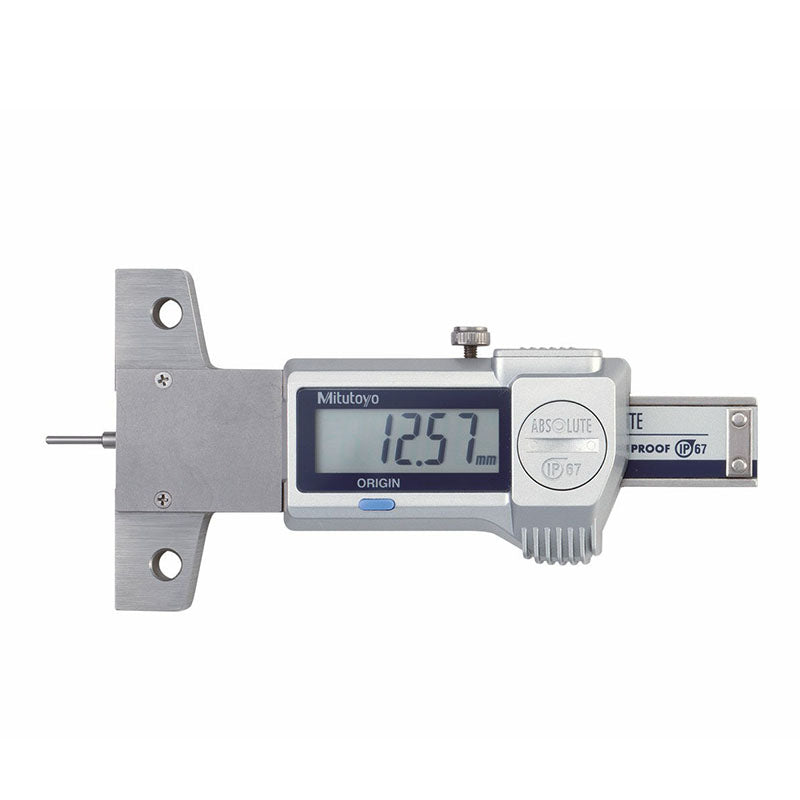

The Mitutoyo ABSOLUTE digital tire tread depth gage measures tire tread depth with high accuracy. Its size and light weight makes the gage easy to use. The gage scale, blade and measuring rod is constructed of hardened stainless steel for added durability. Measurements are displayed on a digital LCD readout with SPC output for easy automatic recording.

  • Available in Metric and Inch/Metric models
  • Convenient mounting holes in the base for repeatable accuracy
  • Keeps track of the origin point for the life of the battery
  • SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
  • Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
  • Alarm: Low Voltage, Counting Value Composition Error

Technical Data

Technology: Digimatic
Display: LCD
Battery: SR44 (1 pc.) 938882
(Customer is required to provide their own batteries)
SPC Output: Yes

Product List

Order No. Units Range Resolution Accuracy Optional Accessories
571-100-20 Metric 0-25mm 0.01mm ±0.02mm -
571-200-20 Metric, Inch 0-25mm / 0-1" 0.01mm / 0.0005" - -
