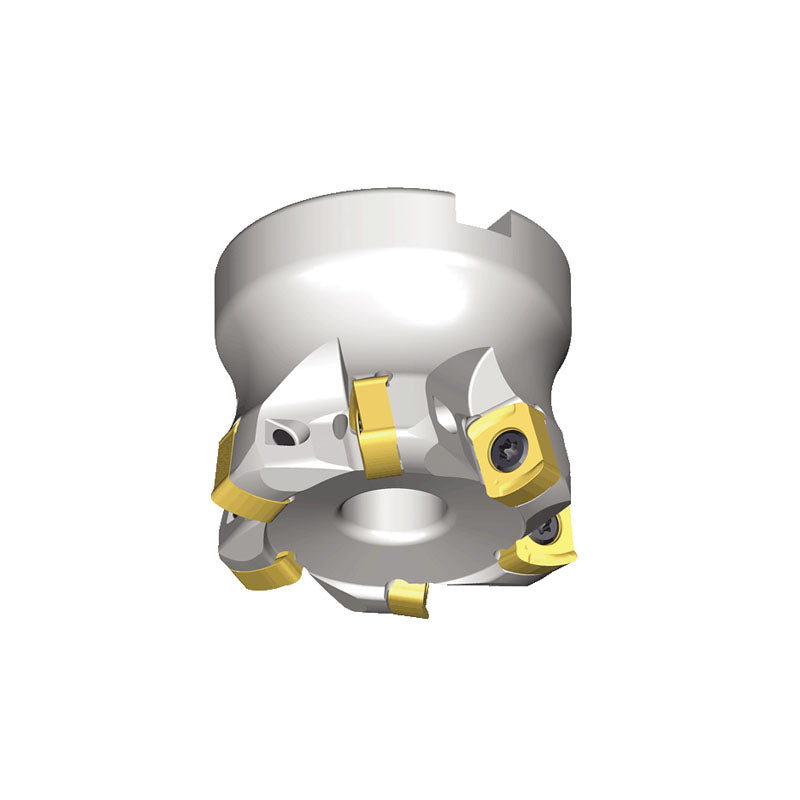

TFMBL-R-11 High feed mills with BLMP 11 inserts of 4 cutting edges in maximum depth of cut ap 2.0 mm
TFMBL-R-11 High feed mills with BLMP 11 inserts of 4 cutting edges in maximum depth of cut ap 2.0 mm
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Versatile High Feed Mill with Strong 4 Cutting Edge Insert
» High feed insert with strong geometry
» High productivity with maximum No. of teeth
» High positive rake angle
» Good chip evacuation
» Various insert options and cutter range

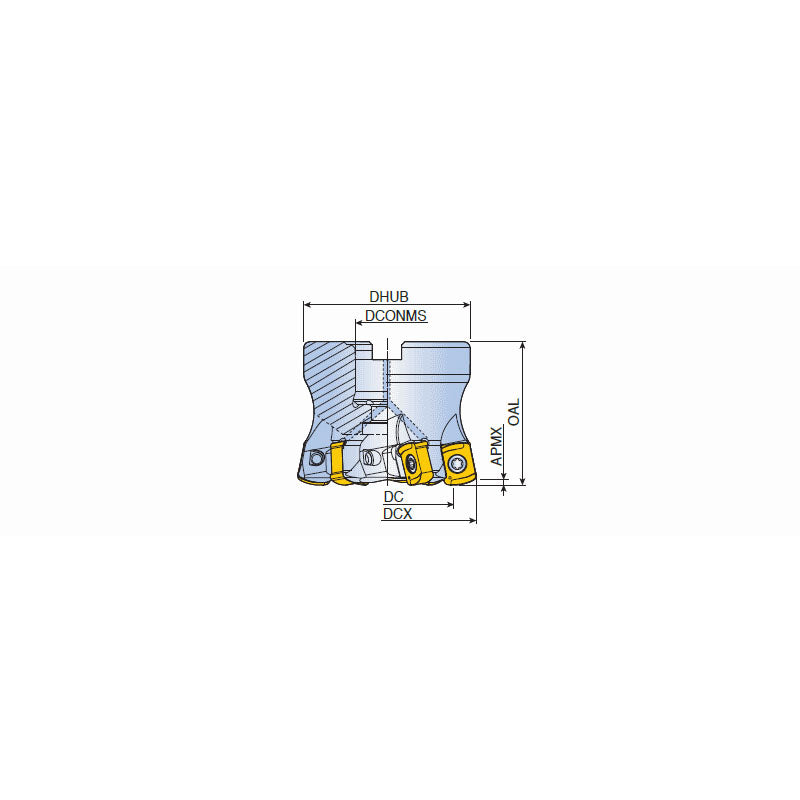

| Designation | DCX | DC | CICT | DCONMS | DHUB | OAL | APMX | Coolant supply property | Arbor | Weight/kg | Mtg. Ref | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TFMBL 440-16R-11 | 40.00 | 24.40 | 4 | 16.00 | 30.00 | 40.00 | 2.00 | O | E | 0.20 | KTB 32B | BLMP 1105R-M |
| TFMBL 450-22R-11 | 50.00 | 34.40 | 4 | 22.00 | 45.00 | 40.00 | 2.00 | O | A | 0.30 | LH M10x25 | BLMP 1105R-M |
| TFMBL 550-22R-11 | 50.00 | 34.40 | 5 | 22.00 | 45.00 | 40.00 | 2.00 | O | A | 0.30 | LH M10x25 | BLMP 1105R-M |
| TFMBL 552-22R-11 | 52.00 | 36.40 | 5 | 22.00 | 45.00 | 40.00 | 2.00 | O | A | 0.30 | LH M10x25 | BLMP 1105R-M |
| TFMBL 563-22R-11 | 63.00 | 48.40 | 5 | 22.00 | 58.00 | 50.00 | 2.00 | O | A | 0.70 | SH M10x30 | BLMP 1105R-M |
| TFMBL 663-22R-11 | 63.00 | 48.40 | 6 | 22.00 | 58.00 | 50.00 | 2.00 | O | A | 0.70 | SH M10x30 | BLMP 1105R-M |
| TFMBL 666-22R-11 | 66.00 | 50.30 | 6 | 22.00 | 58.00 | 50.00 | 2.00 | O | A | 0.80 | SH M10x30 | BLMP 1105R-M |
| TFMBL 666-27R-11 | 66.00 | 50.34 | 6 | 27.00 | 58.00 | 50.00 | 2.00 | O | A | 0.70 | SH M12x35 | BLMP 1105R-M |
| TFMBL 680-25.4R-11 | 80.00 | 64.30 | 6 | 25.40 | 70.00 | 60.00 | 2.00 | O | A | 1.40 | SH M12x35 | BLMP 1105R-M |
| TFMBL 680-27R-11 | 80.00 | 64.30 | 6 | 27.00 | 70.00 | 60.00 | 2.00 | O | A | 1.40 | SH M10x30 | BLMP 1105R-M |
| TFMBL 780-27R-11 | 80.00 | 64.30 | 7 | 27.00 | 70.00 | 60.00 | 2.00 | O | A | 1.40 | SH M10x30 | BLMP 1105R-M |
| TFMBL 6100-31.75R-11 | 100.00 | 84.30 | 6 | 31.75 | 80.00 | 60.00 | 2.00 | O | B | 1.80 | SH M12x35 | BLMP 1105R-M |
| TFMBL 6100-32R-11 | 100.00 | 84.30 | 6 | 32.00 | 85.00 | 60.00 | 2.00 | O | A | 2.20 | SH M16x35 | BLMP 1105R-M |
| TFMBL 7100-32R-11 | 100.00 | 84.30 | 7 | 32.00 | 85.00 | 60.00 | 2.00 | O | A | 2.20 | SH M16x35 | BLMP 1105R-M |
| TFMBL 10125-40R-11 | 125.00 | 109.30 | 10 | 40.00 | 85.00 | 60.00 | 2.00 | O | A | 2.70 | SH M20x40 | BLMP 1105R-M |
| TFMBL 8125-32R-11 | 125.00 | 109.30 | 8 | 32.00 | 85.00 | 60.00 | 2.00 | O | A | 2.50 | SH M20x40 | BLMP 1105R-M |
| TFMBL 10160-40R-11 | 160.00 | 144.30 | 10 | 40.00 | 110.00 | 60.00 | 2.00 | X | C | 3.90 | - | BLMP 1105R-M |
| TFMBL 12200-60R-11 | 200.00 | 184.30 | 12 | 60.00 | 130.00 | 60.00 | 2.00 | X | C | 5.80 | - | BLMP 1105R-M |
DCN: Cutting diameter minimum
DCX: Cutting diameter maximum
