Pairs well with
Vendor:
TaeguTec
SBMT 09-M Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 1.2 mm
- $0.00
- Unit price
- per
Inquiry
Vendor:
TaeguTec
SBMT 09-ML Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 1.2 mm
- $0.00
- Unit price
- per
Inquiry
Vendor:
TaeguTec
SBMT 09-MR Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 1.2 mm
- $0.00
- Unit price
- per
Inquiry
Vendor:
TaeguTec
SBMT 13-M Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 2,0 mm
- $0.00
- Unit price
- per
Inquiry
Vendor:
TaeguTec
SBMT 13-MR Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 2,0 mm
- $0.00
- Unit price
- per
Inquiry
Vendor:
TaeguTec
SBMT 13-ML Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 2,0 mm
- $0.00
- Unit price
- per
Inquiry

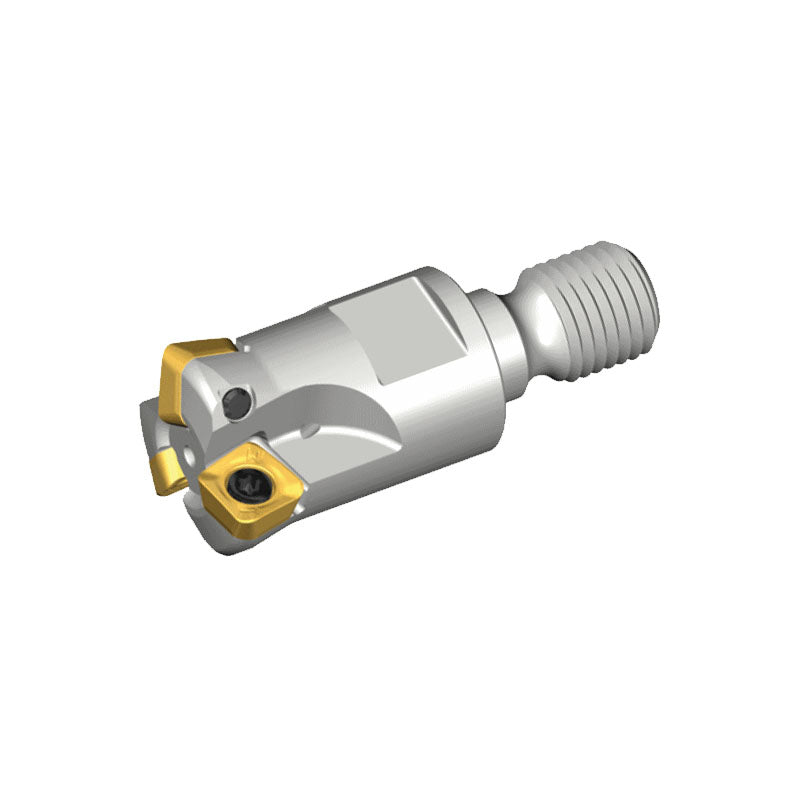

TESB-M-09 High feed end mills with T-FLEXTEC modular adaptation and positive SBMT 09 of 4 cutting edges in max. ap 1.2 mm
TESB-M-09 High feed end mills with T-FLEXTEC modular adaptation and positive SBMT 09 of 4 cutting edges in max. ap 1.2 mm
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
High feed milling with low cutting forces
» Single-sided 4 corner insert
» Optimized insert design for high feed machining
» Smooth machining and excellent chip evacuation» Thick and high rigid insert
» Suitable for difficult-to-cut materials

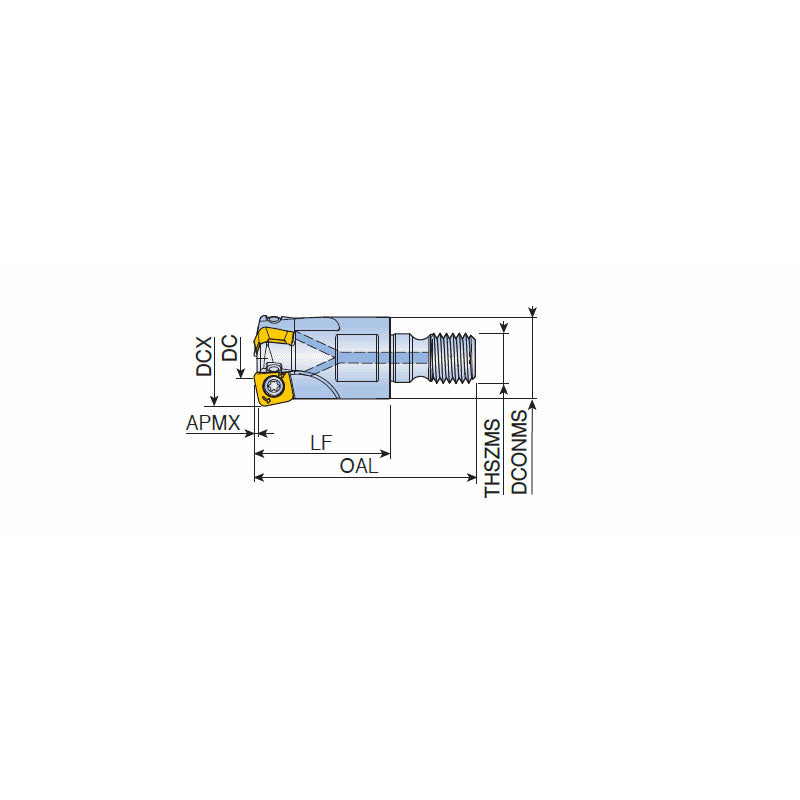

| Designation | DCX | CICT | DC | DCONMS | LF | OAL | THSZMS | APMX | Coolant supply property | Weight/kg | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TESB 225-M12-09 | 25.00 | 2 | 10.80 | 21.00 | 35.00 | 57.00 | M12 | 1.20 | O | 0.09 | SBMT 090415R-M |
| TESB 325-M12-09 | 25.00 | 3 | 10.80 | 21.00 | 35.00 | 57.00 | M12 | 1.20 | O | 0.08 | SBMT 090415R-M |
| TESB 332-M16-09 | 32.00 | 3 | 17.40 | 29.00 | 43.00 | 68.00 | M16 | 1.20 | O | 0.22 | SBMT 090415R-M |
| TESB 432-M16-09 | 32.00 | 4 | 17.40 | 29.00 | 43.00 | 68.00 | M16 | 1.20 | O | 0.21 | SBMT 090415R-M |
| TESB 435-M16-09 | 35.00 | 4 | 20.40 | 29.00 | 43.00 | 68.00 | M16 | 1.20 | O | 0.23 | SBMT 090415R-M |
| TESB 440-M16-09 | 40.00 | 4 | 25.40 | 29.00 | 43.00 | 68.00 | M16 | 1.20 | O | 0.25 | SBMT 090415R-M |
| TESB 540-M16-09 | 40.00 | 5 | 25.40 | 29.00 | 43.00 | 68.00 | M16 | 1.20 | O | 0.26 | SBMT 090415R-M |
| TESB 542-M16-09 | 42.00 | 5 | 27.40 | 29.00 | 43.00 | 68.00 | M16 | 1.20 | O | 0.28 | SBMT 090415R-M |
