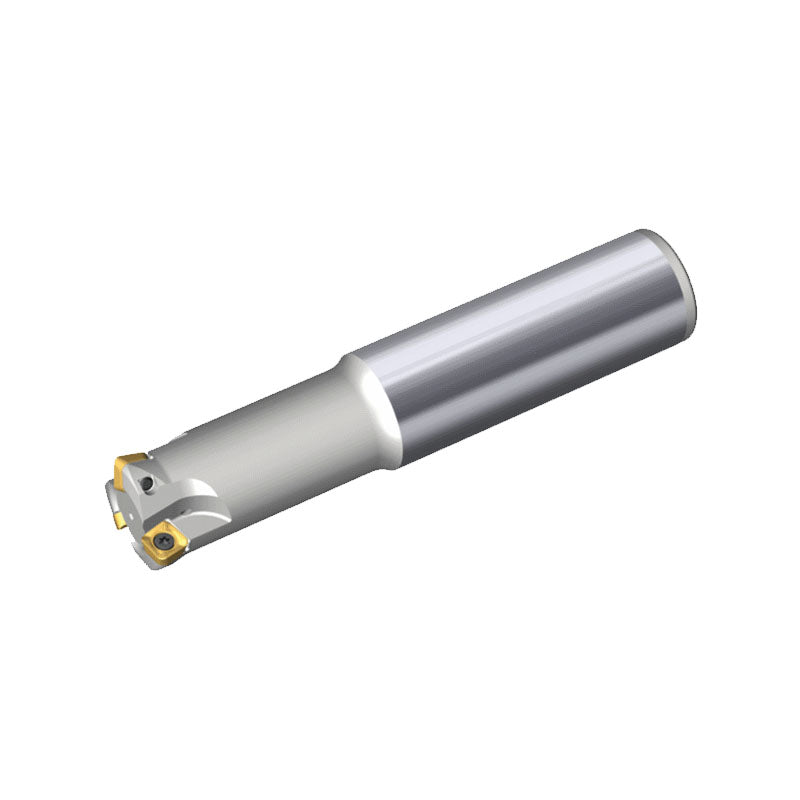

TESB-09-L High feed end mills with positive SBMT 09 inserts of four cutting edges in max. ap 1.2 mm
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
High feed milling with low cutting forces
» Single-sided 4 corner insert
» Optimized insert design for high feed machining
» Smooth machining and excellent chip evacuation» Thick and high rigid insert
» Suitable for difficult-to-cut materials

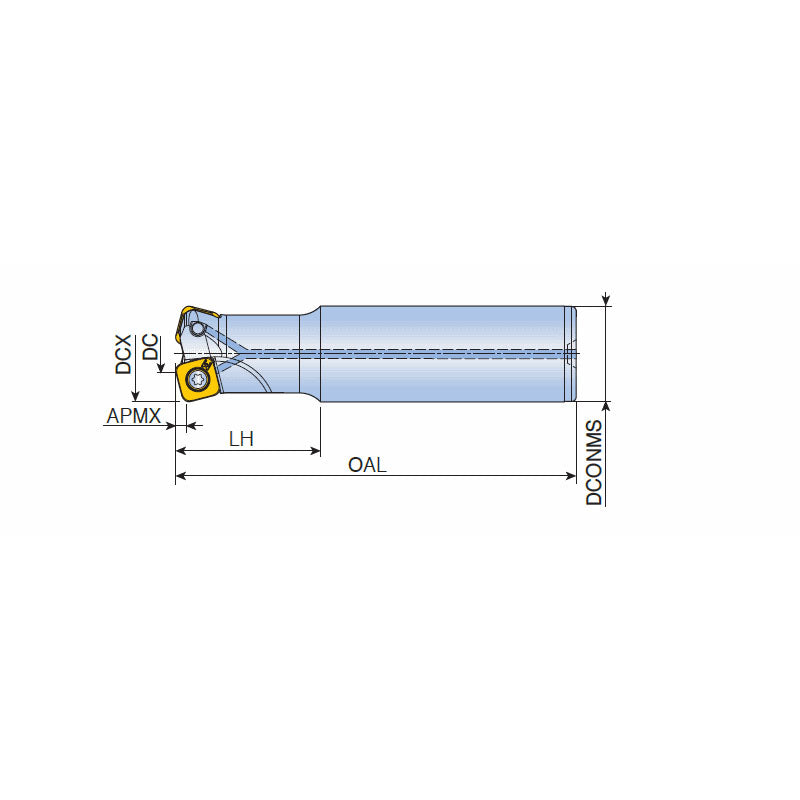

| Designation | DCX | CICT | DC | DCONMS | OAL | LH | APMX | Coolant supply property | Weight/kg | MIID |
|---|---|---|---|---|---|---|---|---|---|---|
| TESB 225-25-09-L150 | 25.00 | 2 | 10.80 | 25.00 | 150.00 | 70.00 | 1.20 | O | 0.46 | SBMT 090415R-M |
| TESB 225-25-09-L200 | 25.00 | 2 | 10.80 | 25.00 | 200.00 | 70.00 | 1.20 | O | 0.65 | SBMT 090415R-M |
| TESB 325-25-09-L150 | 25.00 | 3 | 10.80 | 25.00 | 150.00 | 70.00 | 1.20 | O | 0.46 | SBMT 090415R-M |
| TESB 325-25-09-L200 | 25.00 | 3 | 10.80 | 25.00 | 200.00 | 70.00 | 1.20 | O | 0.65 | SBMT 090415R-M |
| TESB 226-25-09-L200 | 26.00 | 2 | 11.70 | 25.00 | 200.00 | 30.00 | 1.20 | O | 0.69 | SBMT 090415R-M |
| TESB 226-25-09-L250 | 26.00 | 2 | 11.70 | 25.00 | 250.00 | 30.00 | 1.20 | O | 0.88 | SBMT 090415R-M |
| TESB 326-25-09-L150 | 26.00 | 3 | 11.70 | 25.00 | 150.00 | 30.00 | 1.20 | O | 0.51 | SBMT 090415R-M |
| TESB 326-25-09-L200 | 26.00 | 3 | 11.70 | 25.00 | 200.00 | 30.00 | 1.20 | O | 0.71 | SBMT 090415R-M |
| TESB 326-25-09-L250 | 26.00 | 3 | 11.70 | 25.00 | 250.00 | 30.00 | 1.20 | O | 0.88 | SBMT 090415R-M |
| TESB 330-32-09-L200 | 30.00 | 3 | 15.50 | 32.00 | 200.00 | 70.00 | 1.20 | O | 1.06 | SBMT 090415R-M |
| TESB 332-32-09-L160 | 32.00 | 3 | 17.40 | 32.00 | 160.00 | 70.00 | 1.20 | O | 0.85 | SBMT 090415R-M |
| TESB 332-32-09-L200 | 32.00 | 3 | 17.40 | 32.00 | 200.00 | 70.00 | 1.20 | O | 1.09 | SBMT 090415R-M |
| TESB 332-32-09-L300 | 32.00 | 3 | 17.40 | 32.00 | 300.00 | 70.00 | 1.20 | O | 1.70 | SBMT 090415R-M |
| TESB 432-32-09-L160 | 32.00 | 4 | 17.40 | 32.00 | 160.00 | 70.00 | 1.20 | O | 0.87 | SBMT 090415R-M |
| TESB 432-32-09-L220 | 32.00 | 4 | 17.40 | 32.00 | 220.00 | 70.00 | 1.20 | O | 1.27 | SBMT 090415R-M |
| TESB 233-32-09-L250 | 33.00 | 2 | 18.40 | 32.00 | 250.00 | 30.00 | 1.20 | O | 1.47 | SBMT 090415R-M |
| TESB 333-32-09-L250 | 33.00 | 3 | 18.40 | 32.00 | 250.00 | 30.00 | 1.20 | O | 1.47 | SBMT 090415R-M |
| TESB 333-32-09-L300 | 33.00 | 3 | 18.40 | 32.00 | 300.00 | 30.00 | 1.20 | O | 1.77 | SBMT 090415R-M |
| TESB 433-32-09-L180 | 33.00 | 4 | 18.40 | 32.00 | 180.00 | 30.00 | 1.20 | O | 1.05 | SBMT 090415R-M |
| TESB 433-32-09-L250 | 33.00 | 4 | 18.40 | 32.00 | 250.00 | 30.00 | 1.20 | O | 1.48 | SBMT 090415R-M |
| TESB 335-32-09-L250 | 35.00 | 3 | 20.40 | 32.00 | 250.00 | 30.00 | 1.20 | O | 1.48 | SBMT 090415R-M |
| TESB 440-32-09-L250 | 40.00 | 4 | 25.40 | 32.00 | 250.00 | 40.00 | 1.20 | O | 1.52 | SBMT 090415R-M |
| TESB 440-32-09-L300 | 40.00 | 4 | 25.40 | 32.00 | 300.00 | 40.00 | 1.20 | O | 1.82 | SBMT 090415R-M |
| TESB 540-32-09-L180 | 40.00 | 5 | 25.40 | 32.00 | 180.00 | 40.00 | 1.20 | O | 1.10 | SBMT 090415R-M |
| TESB 540-32-09-L250 | 40.00 | 5 | 25.40 | 32.00 | 250.00 | 40.00 | 1.20 | O | 1.53 | SBMT 090415R-M |
