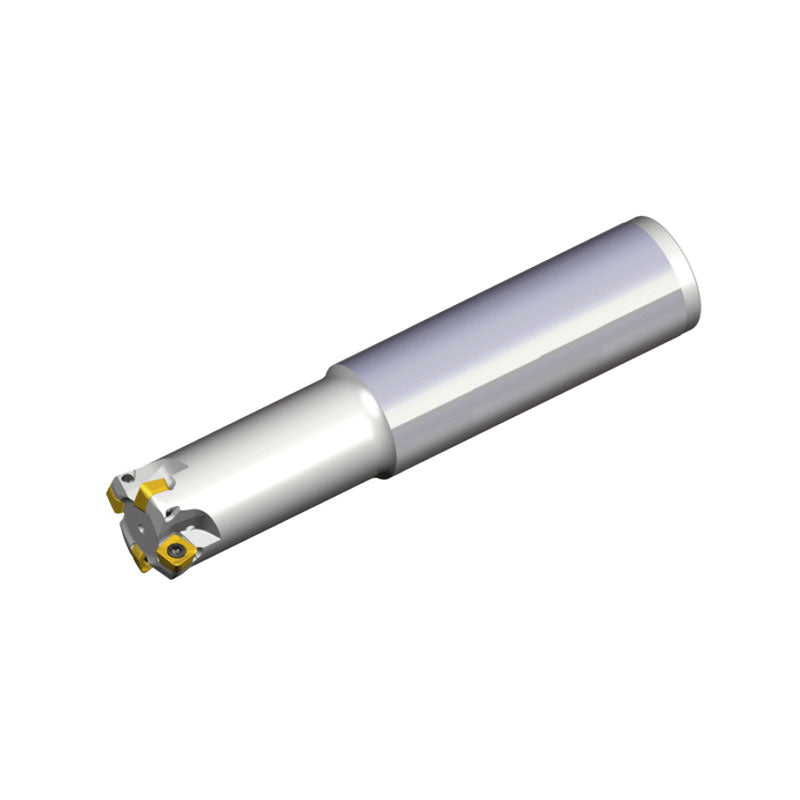

TESB-06-L High feed end mills with positive SBMT 06 inserts of four cutting edges in max. ap 1.0 mm
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
High feed milling with low cutting forces
» Single-sided 4 corner insert
» Optimized insert design for high feed machining
» Smooth machining and excellent chip evacuation» Thick and high rigid insert
» Suitable for difficult-to-cut materials

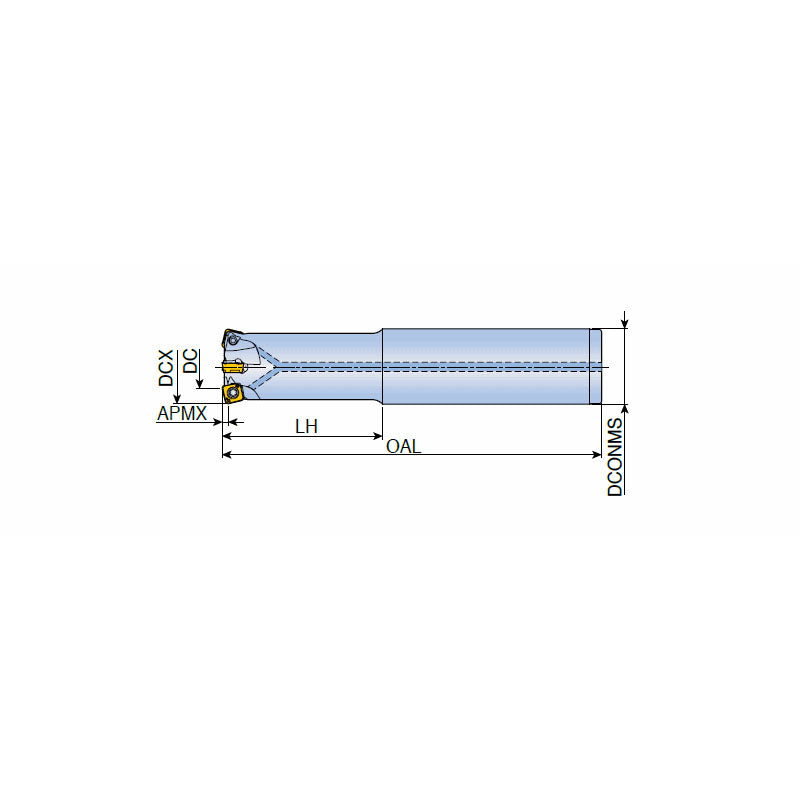

| Designation | DCX | CICT | DC | DCONMS | OAL | LH | APMX | CSP | Weight/kg | MIID |
|---|---|---|---|---|---|---|---|---|---|---|
| TESB 216-16-06-L150 | 16.00 | 2 | 5.90 | 16.00 | 150.00 | 40.0 | 1.00 | O | 0.21 | SBMT 060310R-M |
| TESB 217-16-06-L200 | 17.00 | 2 | 6.80 | 16.00 | 200.00 | 20.0 | 1.00 | O | 0.30 | SBMT 060310R-M |
| TESB 320-20-06-L160 | 20.00 | 3 | 9.80 | 20.00 | 160.00 | 50.0 | 1.00 | O | 0.28 | SBMT 060310R-M |
| TESB 420-20-06-L130 | 20.00 | 4 | 9.80 | 20.00 | 130.00 | 50.0 | 1.00 | O | 0.28 | SBMT 060310R-M |
| TESB 321-20-06-L200 | 21.00 | 3 | 10.70 | 20.00 | 200.00 | 20.0 | 1.00 | O | 0.46 | SBMT 060310R-M |
| TESB 425-25-06-L180 | 25.00 | 4 | 14.80 | 25.00 | 180.00 | 60.0 | 1.00 | O | 0.59 | SBMT 060310R-M |
| TESB 525-25-06-L140 | 25.00 | 5 | 14.80 | 25.00 | 140.00 | 60.0 | 1.00 | O | 0.44 | SBMT 060310R-M |
| TESB 532-32-06-L200 | 32.00 | 5 | 21.80 | 32.00 | 200.00 | 80.0 | 1.00 | O | 1.09 | SBMT 060310R-M |
