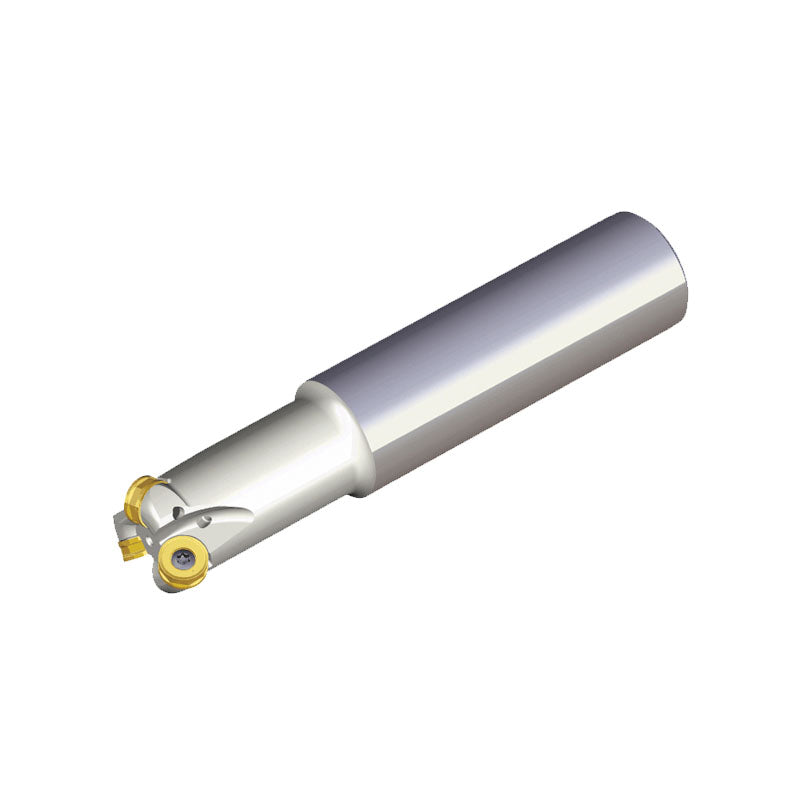

TERNS-10/12/16 End mills with double-sided round inserts of RNMU for general and Die & Mold application
TERNS-10/12/16 End mills with double-sided round inserts of RNMU for general and Die & Mold application
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Double-sided Round Inserts for Profiling and
Multiple Applications
» Economical double-sided round type insert
» Full radius insert "-ML" and serrated cutting edge insert "S-M"
» Anti-rotational design enables secure clamping and easy indexing
» Various applications for profiling, shouldering, facing and slotting

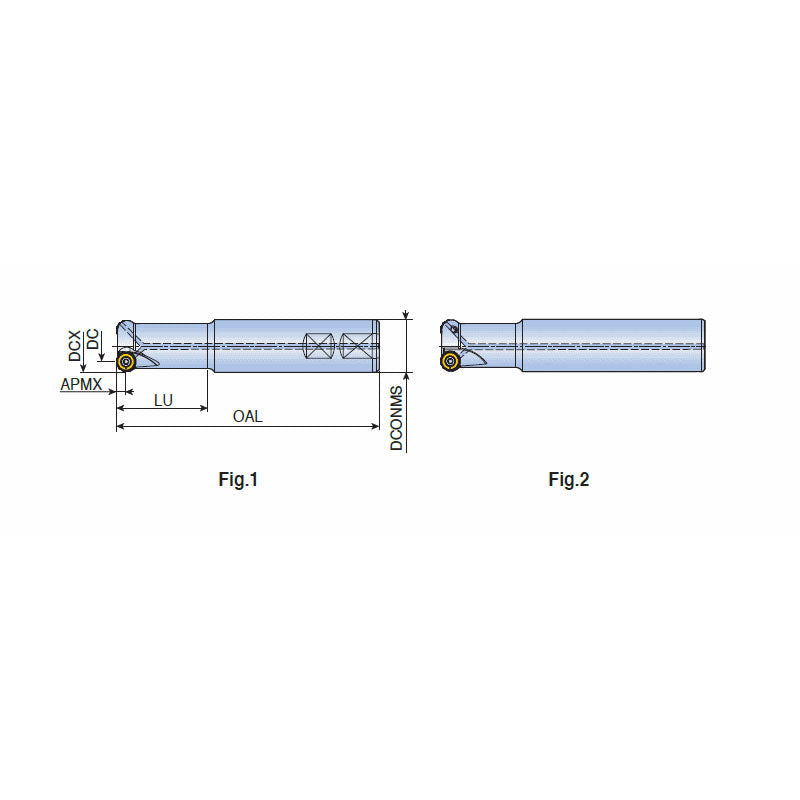

| Designation | DCX | DC | CICT | DCONMS | OAL | LU | APMX | Fig. | Shank | Weight/kg | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TERNS 225-25-10-L160 | 25.00 | 15.00 | 2 | 25.00 | 160.00 | 60.00 | 5.00 | 2 | C | 0.50 | RNMU 1004-ML |
| TERNS 225-32-10-L250 | 25.00 | 15.00 | 2 | 32.00 | 250.00 | 40.00 | 5.00 | 2 | C | 1.28 | RNMU 1004-ML |
| TERNS 226-25-10-L200 | 26.00 | 16.00 | 2 | 25.00 | 200.00 | 80.00 | 5.00 | 2 | C | 0.64 | RNMU 1004-ML |
| TERNS 325-25-10-L160 | 25.00 | 15.00 | 3 | 25.00 | 160.00 | 60.00 | 5.00 | 2 | C | 0.49 | RNMU 1004-ML |
| TERNS 332-32-10-L180 | 32.00 | 22.00 | 3 | 32.00 | 180.00 | 70.00 | 5.00 | 2 | C | 0.92 | RNMU 1004-ML |
| TERNS 332-32-10-L250 | 32.00 | 22.00 | 3 | 32.00 | 250.00 | 100.00 | 5.00 | 2 | C | 1.29 | RNMU 1004-ML |
| TERNS 432-32-10-L180 | 32.00 | 22.00 | 4 | 32.00 | 180.00 | 70.00 | 5.00 | 2 | C | 0.93 | RNMU 1004-ML |
| TERNS 432-32-10-L250 | 32.00 | 22.00 | 4 | 32.00 | 250.00 | 100.00 | 5.00 | 2 | C | 1.28 | RNMU 1004-ML |
| TERNS 433-32-10-L200 | 33.00 | 23.00 | 4 | 32.00 | 200.00 | 80.00 | 5.00 | 2 | C | 1.02 | RNMU 1004-ML |
| TERNS 433-32-10-L250 | 33.00 | 23.00 | 4 | 32.00 | 250.00 | 100.00 | 5.00 | 2 | C | 1.29 | RNMU 1004-ML |
| TERNS 232-32-12-L | 32.00 | 20.00 | 2 | 32.00 | 250.00 | 50.00 | 6.00 | 2 | C | 1.41 | RNMU 1205-ML |
| TERNS 232-32-12-L150 | 32.00 | 20.00 | 2 | 32.00 | 150.00 | 50.00 | 6.00 | 2 | C | 0.79 | RNMU 1205-ML |
| TERNS 232-32-12-L200 | 32.00 | 20.00 | 2 | 32.00 | 200.00 | 60.00 | 6.00 | 2 | C | 1.17 | RNMU 1205-ML |
| TERNS 233-32-12-L200 | 33.00 | 21.00 | 2 | 32.00 | 200.00 | 50.00 | 6.00 | 2 | C | 1.10 | RNMU 1205-ML |
| TERNS 233-32-12-L250 | 33.00 | 21.00 | 2 | 32.00 | 250.00 | 50.00 | 6.00 | 2 | C | 1.57 | RNMU 1205-ML |
| TERNS 332-W32-12 | 32.00 | 20.00 | 3 | 32.00 | 160.00 | 60.00 | 6.00 | 1 | W | 0.81 | RNMU 1205-ML |
| TERNS 332-32-12-L200 | 32.00 | 20.00 | 3 | 32.00 | 200.00 | 70.00 | 6.00 | 2 | C | 1.05 | RNMU 1205-ML |
| TERNS 332-32-12-L250 | 32.00 | 20.00 | 3 | 32.00 | 250.00 | 60.00 | 6.00 | 2 | C | 1.37 | RNMU 1205-ML |
| TERNS 333-32-12-L200 | 33.00 | 21.00 | 3 | 32.00 | 200.00 | 70.00 | 6.00 | 2 | C | 1.07 | RNMU 1205-ML |
| TERNS 333-32-12-L250 | 33.00 | 21.00 | 3 | 32.00 | 250.00 | 60.00 | 6.00 | 2 | C | 1.36 | RNMU 1205-ML |
| TERNS 340-W32-12 | 40.00 | 28.00 | 3 | 32.00 | 160.00 | 50.00 | 6.00 | 1 | W | 0.93 | RNMU 1205-ML |
| TERNS 340-32-12-L250 | 40.00 | 28.00 | 3 | 32.00 | 250.00 | 50.00 | 6.00 | 2 | C | 1.50 | RNMU 1205-ML |
| TERNS 440-W32-12 | 40.00 | 28.00 | 4 | 32.00 | 160.00 | 50.00 | 6.00 | 1 | W | 0.90 | RNMU 1205-ML |
| TERNS 440-32-12-L250 | 40.00 | 28.00 | 4 | 32.00 | 250.00 | 60.00 | 6.00 | 2 | C | 1.45 | RNMU 1205-ML |
| TERNS 450-32-12-L200 | 50.00 | 38.00 | 4 | 32.00 | 200.00 | 70.00 | 6.00 | 2 | C | 1.36 | RNMU 1205-ML |
| TERNS 550-32-12-L250 | 50.00 | 38.00 | 5 | 32.00 | 250.00 | 60.00 | 6.00 | 2 | C | 1.64 | RNMU 1205-ML |
| TERNS 240-W32-16-L160 | 40.00 | 24.00 | 2 | 32.00 | 160.00 | 50.00 | 8.00 | 1 | C | 0.91 | RNMU 1606-ML |
| TERNS 240-32-16-L180 | 40.00 | 24.00 | 2 | 32.00 | 180.00 | 70.00 | 8.00 | 2 | C | 1.02 | RNMU 1606-ML |
| TERNS 240-32-16-L250 | 40.00 | 24.00 | 2 | 32.00 | 250.00 | 100.00 | 8.00 | 2 | C | 1.44 | RNMU 1606-ML |
| TERNS 340-32-16-L180 | 40.00 | 24.00 | 3 | 32.00 | 180.00 | 70.00 | 8.00 | 2 | C | 1.00 | RNMU 1606-ML |
| TERNS 340-32-16-L250 | 40.00 | 24.00 | 3 | 32.00 | 250.00 | 100.00 | 8.00 | 2 | C | 1.41 | RNMU 1606-ML |
