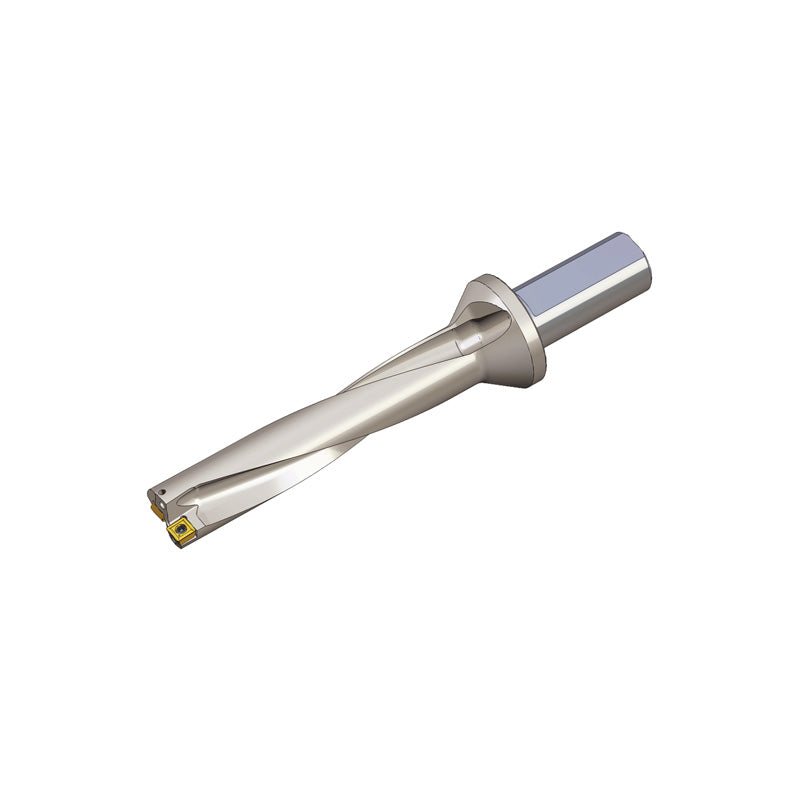

TDR-5XD (DIA 12.5-50) Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

TDR-5XD (DIA 12.5-50) Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD - Big-tools Industrial Supply Tools for Metal Cutting

TDR-5XD (DIA 12.5-50) Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

TDR-5XD (DIA 12.5-50) Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: TDR 5125-20T2-05

Product List

Double the holes, double the productivity

» Twisted coolant channels with high rigidity of drill body
» Bigger chip gullet for better chip evacuation
» Special treatment on the body for wear resistance & longer body life
» Square 4 corner economical insert with new PVD grade
» Reduced stock-keep costs for drill insert

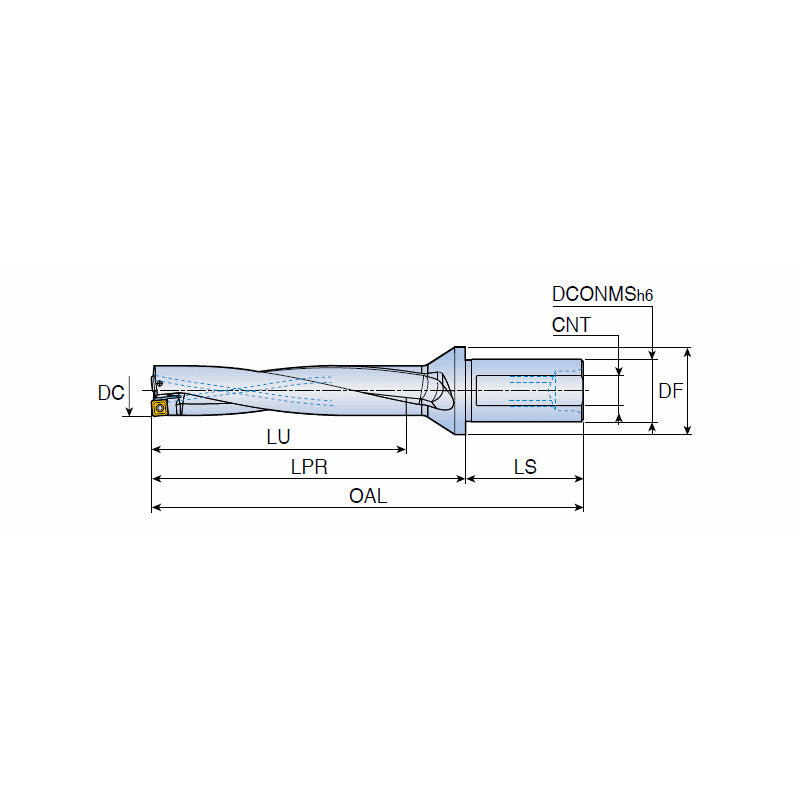

Designation DC DCONMS DF OAL LU LPR LS CNT MIID
TDR 5125-20T2-05 12.50 20.00 25.00 133.00 65.0 83.0 50.0 M13X1.0 SPMG 050204 DG
TDR 5130-20T2-05 13.00 20.00 25.00 133.00 65.0 83.0 50.0 M13X1.0 SPMG 050204 DG
TDR 5135-20T2-05 13.50 20.00 25.00 138.00 70.0 88.0 50.0 M13X1.0 SPMG 050204 DG
TDR 5140-20T2-05 14.00 20.00 25.00 138.00 70.0 88.0 50.0 M13X1.0 SPMG 050204 DG
TDR 5145-20T2-05 14.50 20.00 25.00 144.00 75.0 94.0 50.0 M13X1.0 SPMG 050204 DG
TDR 5150-20T2-05 15.00 20.00 25.00 144.00 75.0 94.0 50.0 M13X1.0 SPMG 050204 DG
TDR 5155-25T2-06 15.50 25.00 32.00 156.00 80.0 100.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5160-25T2-06 16.00 25.00 32.00 156.00 80.0 100.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5165-25T2-06 16.50 25.00 32.00 161.00 85.0 105.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5170-25T2-06 17.00 25.00 32.00 161.00 85.0 105.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5175-25T2-06 17.50 25.00 32.00 167.00 90.0 111.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5180-25T2-06 18.00 25.00 32.00 167.00 90.0 111.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5185-25T2-06 18.50 25.00 32.00 172.00 95.0 116.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5190-25T2-06 19.00 25.00 32.00 172.00 95.0 116.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5195-25T2-06 19.50 25.00 32.00 179.00 100.0 123.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5200-25T2-06 20.00 25.00 32.00 179.00 100.0 123.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5205-25T2-06 20.50 25.00 32.00 184.00 105.0 128.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5210-25T2-06 21.00 25.00 32.00 184.00 105.0 128.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5215-25T2-06 21.50 25.00 32.00 110.00 110.0 133.0 56.0 M16X1.5 SPMG 060204 DG
TDR 5220-25T2-07 22.00 25.00 32.00 189.00 110.0 133.0 56.0 M22X2.0 SPMG 07T308 DG
TDR 5225-32T2-07 22.50 32.00 45.00 200.00 115.0 140.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5230-32T2-07 23.00 32.00 45.00 200.00 115.0 140.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5235-32T2-07 23.50 32.00 45.00 206.00 120.0 146.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5240-32T2-07 24.00 32.00 45.00 206.00 120.0 146.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5245-32T2-07 24.50 32.00 45.00 212.00 125.0 152.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5250-32T2-07 25.00 32.00 45.00 212.00 125.0 152.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5255-32T2-07 25.50 32.00 45.00 217.00 130.0 157.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5260-32T2-07 26.00 32.00 45.00 217.00 130.0 157.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5265-32T2-07 26.50 32.00 45.00 222.00 135.0 162.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5270-32T2-07 27.00 32.00 45.00 222.00 135.0 162.0 60.0 M22X2.0 SPMG 07T308 DG
TDR 5275-32T2-07 27.50 32.00 45.00 228.00 140.0 168.0 60.0 Rc 1/4 SPMG 07T308 DG
TDR 5280-32T2-09 28.00 32.00 45.00 228.00 140.0 168.0 60.0 Rc 1/4 SPMG 090408 DG
TDR 5285-32T2-09 28.50 32.00 45.00 233.00 145.0 173.0 60.0 Rc 1/4 SPMG 090408 DG
TDR 5290-32T2-09 29.00 32.00 45.00 233.00 145.0 173.0 60.0 Rc 1/4 SPMG 090408 DG
TDR 5295-32T2-09 29.50 32.00 55.00 241.00 150.0 181.0 60.0 Rc 1/4 SPMG 090408 DG
TDR 5300-32T2-09 30.00 32.00 55.00 241.00 150.0 181.0 60.0 Rc 1/4 SPMG 090408 DG
TDR 5300-40T2-09 30.00 40.00 55.00 251.00 150.0 181.0 70.0 Rc 1/4 SPMG 090408 DG
TDR 5310-32T2-09 31.00 32.00 55.00 247.00 155.0 187.0 60.0 Rc 1/4 SPMG 090408 DG
TDR 5310-40T2-09 31.00 40.00 55.00 257.00 155.0 187.0 70.0 Rc 1/4 SPMG 090408 DG
TDR 5320-32T2-09 32.00 32.00 55.00 252.00 160.0 192.0 60.0 Rc 1/4 SPMG 090408 DG
TDR 5320-40T2-09 32.00 40.00 55.00 262.00 160.0 192.0 70.0 Rc 1/4 SPMG 090408 DG
TDR 5330-32T2-09 33.00 32.00 55.00 258.00 165.0 198.0 60.0 Rc 1/4 SPMG 090408 DG
TDR 5330-40T2-09 33.00 40.00 55.00 268.00 165.0 198.0 70.0 Rc 1/4 SPMG 090408 DG
TDR 5340-32T2-11 34.00 32.00 55.00 263.00 170.0 203.0 60.0 Rc 1/4 SPMG 110408 DG
TDR 5340-40T2-11 34.00 40.00 55.00 273.00 170.0 203.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5350-32T2-11 35.00 32.00 55.00 269.00 175.0 209.0 60.0 Rc 1/4 SPMG 110408 DG
TDR 5350-40T2-11 35.00 40.00 55.00 279.00 175.0 209.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5360-32T2-11 35.00 32.00 55.00 275.00 180.0 215.0 60.0 Rc 1/4 SPMG 110408 DG
TDR 5360-40T2-11 35.00 40.00 55.00 285.00 180.0 215.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5370-32T2-11 37.00 32.00 55.00 281.00 185.0 221.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5370-40T2-11 37.00 40.00 55.00 291.00 185.0 221.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5380-32T2-11 38.00 32.00 55.00 287.00 190.0 227.0 60.0 Rc 1/4 SPMG 110408 DG
TDR 5380-40T2-11 38.00 40.00 55.00 297.00 190.0 227.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5390-32T2-11 39.00 32.00 55.00 292.00 195.0 232.0 60.0 Rc 1/4 SPMG 110408 DG
TDR 5390-40T2-11 39.00 40.00 55.00 302.00 195.0 232.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5400-32T2-11 40.00 32.00 60.00 298.00 200.0 238.0 60.0 Rc 1/4 SPMG 110408 DG
TDR 5400-40T2-11 40.00 40.00 60.00 308.00 200.0 238.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5410-40T2-11 41.00 40.00 60.00 314.00 205.0 244.0 70.0 Rc 1/4 SPMG 110408 DG
TDR 5420-40T2-14 42.00 40.00 60.00 319.00 210.0 249.0 70.0 Rc 1/4 SPMG 140512 DG
TDR 5430-40T2-14 43.00 40.00 60.00 325.00 215.0 255.0 70.0 Rc 1/4 SPMG 140512 DG
TDR 5440-40T2-14 44.00 40.00 60.00 330.00 220.0 260.0 70.0 Rc 1/4 SPMG 140512 DG
TDR 5450-40T2-14 45.00 40.00 60.00 337.00 225.0 267.0 70.0 Rc 1/4 SPMG 140512 DG
TDR 5460-40T2-14 46.00 40.00 60.00 343.00 230.0 273.0 70.0 Rc 1/4 SPMG 140512 DG
TDR 5470-40T2-14 47.00 40.00 60.00 348.00 235.0 278.0 70.0 Rc 1/4 SPMG 140512 DG
TDR 5480-40T2-14 48.00 40.00 60.00 354.00 240.0 284.0 70.0 Rc 1/4 SPMG 140512 DG
TDR 5490-40T2-14 49.00 40.00 60.00 359.00 245.0 289.0 70.0 Rc 1/4 SPMG 140512 DG
TDR 5500-40T2-14 50.00 40.00 60.00 365.00 250.0 295.0 70.0 Rc 1/4 SPMG 140512 DG
