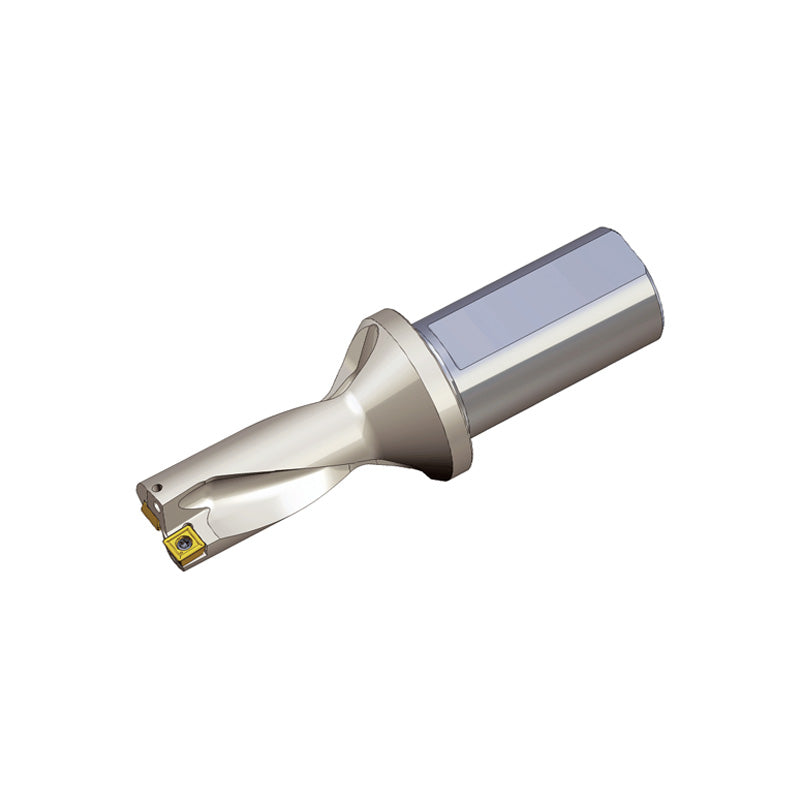

TDR-2XD (DIA 12.5-50) Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD
TDR-2XD (DIA 12.5-50) Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Double the holes, double the productivity
» Twisted coolant channels with high rigidity of drill body
» Bigger chip gullet for better chip evacuation
» Special treatment on the body for wear resistance & longer body life
» Square 4 corner economical insert with new PVD grade
» Reduced stock-keep costs for drill insert

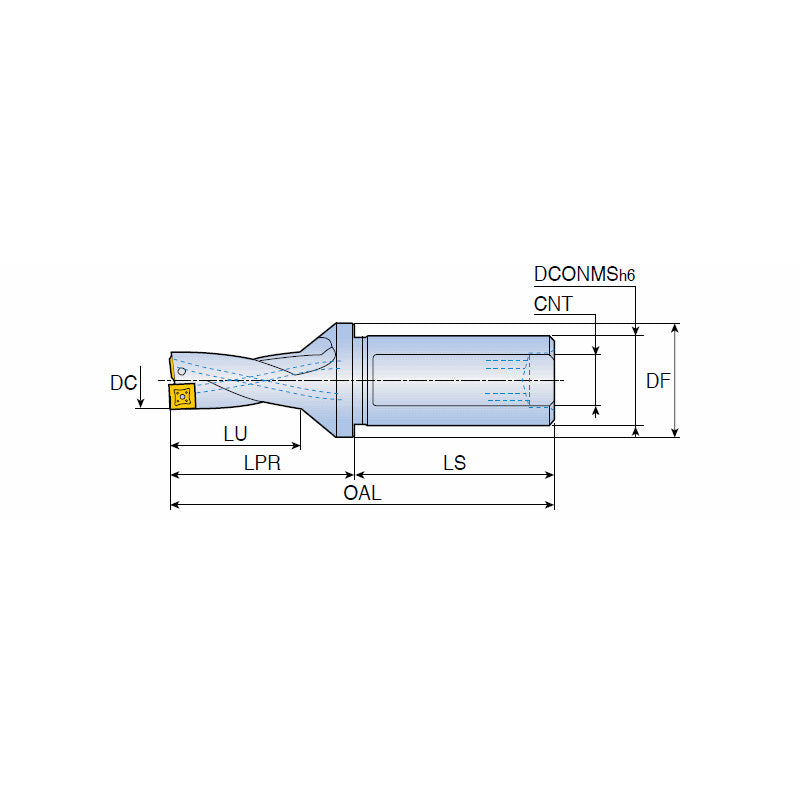

| Designation | DC | DCONMS | DF | OAL | LU | LPR | LS | CNT | MIID |
|---|---|---|---|---|---|---|---|---|---|
| TDR 2125-20T2-05 | 12.50 | 20.00 | 25.00 | 94.00 | 26.0 | 44.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 2130-20T2-05 | 13.00 | 20.00 | 25.00 | 94.00 | 26.0 | 44.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 2135-20T2-05 | 13.50 | 20.00 | 25.00 | 96.00 | 28.0 | 46.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 2140-20T2-05 | 14.00 | 20.00 | 25.00 | 96.00 | 28.0 | 46.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 2145-20T2-05 | 14.50 | 20.00 | 25.00 | 99.00 | 30.0 | 49.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 2150-20T2-05 | 15.00 | 20.00 | 25.00 | 99.00 | 30.0 | 49.0 | 50.0 | M13X1.0 | SPMG 050204 DG |
| TDR 2155-25T2-06 | 15.50 | 25.00 | 32.00 | 108.00 | 32.0 | 52.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2160-25T2-06 | 16.00 | 25.00 | 32.00 | 108.00 | 32.0 | 52.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2165-25T2-06 | 16.50 | 25.00 | 32.00 | 110.00 | 34.0 | 54.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2170-25T2-06 | 17.00 | 25.00 | 32.00 | 110.00 | 34.0 | 54.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2175-25T2-06 | 17.50 | 25.00 | 32.00 | 113.00 | 36.0 | 57.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2180-25T2-06 | 18.00 | 25.00 | 32.00 | 113.00 | 36.0 | 57.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2185-25T2-06 | 18.50 | 25.00 | 32.00 | 115.00 | 38.0 | 59.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2190-25T2-06 | 19.00 | 25.00 | 32.00 | 115.00 | 38.0 | 59.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2195-25T2-06 | 19.50 | 25.00 | 32.00 | 119.00 | 40.0 | 63.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2200-25T2-06 | 20.00 | 25.00 | 32.00 | 119.00 | 40.0 | 63.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2205-25T2-06 | 20.50 | 25.00 | 32.00 | 121.00 | 42.0 | 65.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2210-25T2-06 | 21.00 | 25.00 | 32.00 | 121.00 | 42.0 | 65.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2215-25T2-06 | 21.50 | 25.00 | 32.00 | 123.00 | 44.0 | 67.0 | 56.0 | M16X1.5 | SPMG 060204 DG |
| TDR 2220-25T2-07 | 22.00 | 25.00 | 32.00 | 123.00 | 44.0 | 67.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2225-25T2-07 | 22.50 | 25.00 | 45.00 | 127.00 | 46.0 | 71.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2225-32T2-07 | 22.50 | 32.00 | 45.00 | 131.00 | 46.0 | 71.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2230-25T2-07 | 23.00 | 25.00 | 45.00 | 127.00 | 46.0 | 71.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2230-32T2-07 | 23.00 | 32.00 | 45.00 | 131.00 | 46.0 | 71.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2235-25T2-07 | 23.50 | 25.00 | 45.00 | 130.00 | 48.0 | 74.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2235-32T2-07 | 23.50 | 32.00 | 45.00 | 134.00 | 48.0 | 74.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2240-25T2-07 | 24.00 | 25.00 | 45.00 | 130.00 | 48.0 | 74.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2240-32T2-07 | 24.00 | 32.00 | 45.00 | 134.00 | 48.0 | 74.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2245-25T2-07 | 24.50 | 25.00 | 45.00 | 133.00 | 50.0 | 77.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2245-32T2-07 | 24.50 | 32.00 | 45.00 | 137.00 | 50.0 | 77.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2250-25T2-07 | 25.00 | 25.00 | 45.00 | 133.00 | 50.0 | 77.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2250-32T2-07 | 25.00 | 32.00 | 45.00 | 137.00 | 50.0 | 77.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2255-25T2-07 | 25.50 | 25.00 | 45.00 | 135.00 | 52.0 | 79.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2255-32T2-07 | 25.50 | 32.00 | 45.00 | 139.00 | 52.0 | 79.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2260-25T2-07 | 26.00 | 25.00 | 45.00 | 135.00 | 52.0 | 79.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2260-32T2-07 | 26.00 | 32.00 | 45.00 | 139.00 | 52.0 | 79.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2265-25T2-07 | 26.50 | 25.00 | 45.00 | 137.00 | 54.0 | 81.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2265-32T2-07 | 26.50 | 32.00 | 45.00 | 141.00 | 54.0 | 81.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2270-25T2-07 | 27.00 | 25.00 | 45.00 | 137.00 | 54.0 | 81.0 | 56.0 | M16X1.5 | SPMG 07T308 DG |
| TDR 2270-32T2-07 | 27.00 | 32.00 | 45.00 | 141.00 | 54.0 | 81.0 | 60.0 | M22X2.0 | SPMG 07T308 DG |
| TDR 2275-25T2-07 | 27.50 | 25.00 | 45.00 | 140.00 | 56.0 | 84.0 | 56.0 | Rc 1/8 | SPMG 07T308 DG |
| TDR 2275-32T2-07 | 27.50 | 32.00 | 45.00 | 144.00 | 56.0 | 84.0 | 60.0 | Rc 1/4 | SPMG 07T308 DG |
| TDR 2280-25T2-09 | 28.00 | 25.00 | 45.00 | 140.00 | 56.0 | 84.0 | 56.0 | Rc 1/8 | SPMG 090408 DG |
| TDR 2280-32T2-09 | 28.00 | 32.00 | 45.00 | 144.00 | 56.0 | 84.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2285-25T2-09 | 28.50 | 25.00 | 45.00 | 142.00 | 58.0 | 86.0 | 56.0 | Rc 1/8 | SPMG 090408 DG |
| TDR 2285-32T2-09 | 28.50 | 32.00 | 45.00 | 146.00 | 58.0 | 86.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2290-25T2-09 | 29.00 | 25.00 | 45.00 | 142.00 | 58.0 | 86.0 | 56.0 | Rc 1/8 | SPMG 090408 DG |
| TDR 2290-32T2-09 | 29.00 | 32.00 | 45.00 | 146.00 | 58.0 | 86.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2295-32T2-09 | 29.50 | 32.00 | 55.00 | 151.00 | 60.0 | 91.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2295-40T2-09 | 29.50 | 40.00 | 55.00 | 161.00 | 60.0 | 91.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2300-32T2-09 | 30.00 | 32.00 | 55.00 | 151.00 | 60.0 | 91.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2300-40T2-09 | 30.00 | 40.00 | 55.00 | 161.00 | 60.0 | 91.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2305-32T2-09 | 30.50 | 32.00 | 55.00 | 154.00 | 62.0 | 94.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2305-40T2-09 | 30.50 | 40.00 | 55.00 | 164.00 | 62.0 | 94.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2310-32T2-09 | 31.00 | 32.00 | 55.00 | 154.00 | 62.0 | 94.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2310-40T2-09 | 31.00 | 40.00 | 55.00 | 164.00 | 62.0 | 94.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2315-32T2-09 | 31.50 | 32.00 | 55.00 | 156.00 | 64.0 | 96.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2315-40T2-09 | 31.50 | 40.00 | 55.00 | 166.00 | 64.0 | 96.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2320-32T2-09 | 32.00 | 32.00 | 55.00 | 156.00 | 64.0 | 96.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2320-40T2-09 | 32.00 | 40.00 | 55.00 | 166.00 | 64.0 | 96.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2325-32T2-09 | 32.50 | 32.00 | 55.00 | 159.00 | 66.0 | 99.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2325-40T2-09 | 32.50 | 40.00 | 55.00 | 169.00 | 66.0 | 99.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2330-32T2-09 | 33.00 | 32.00 | 55.00 | 159.00 | 66.0 | 99.0 | 60.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2330-40T2-09 | 33.00 | 40.00 | 55.00 | 169.00 | 66.0 | 99.0 | 70.0 | Rc 1/4 | SPMG 090408 DG |
| TDR 2340-32T2-11 | 34.00 | 32.00 | 55.00 | 161.00 | 68.0 | 101.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2340-40T2-11 | 34.00 | 40.00 | 55.00 | 171.00 | 68.0 | 101.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2350-32T2-11 | 35.00 | 32.00 | 55.00 | 164.00 | 70.0 | 104.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2350-40T2-11 | 35.00 | 40.00 | 55.00 | 174.00 | 70.0 | 104.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2360-32T2-11 | 36.00 | 32.00 | 55.00 | 167.00 | 72.0 | 107.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2360-40T2-11 | 36.00 | 40.00 | 55.00 | 177.00 | 72.0 | 107.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2370-32T2-11 | 37.00 | 32.00 | 55.00 | 170.00 | 74.0 | 110.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2370-40T2-11 | 37.00 | 40.00 | 55.00 | 180.00 | 74.0 | 110.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2380-32T2-11 | 38.00 | 32.00 | 55.00 | 173.00 | 76.0 | 113.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2380-40T2-11 | 38.00 | 40.00 | 55.00 | 183.00 | 76.0 | 113.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2390-32T2-11 | 39.00 | 32.00 | 55.00 | 175.00 | 78.0 | 115.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2390-40T2-11 | 39.00 | 40.00 | 55.00 | 185.00 | 78.0 | 115.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2400-32T2-11 | 40.00 | 32.00 | 60.00 | 178.00 | 80.0 | 118.0 | 60.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2400-40T2-11 | 40.00 | 40.00 | 60.00 | 188.00 | 80.0 | 118.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2410-40T2-11 | 41.00 | 40.00 | 60.00 | 191.00 | 82.0 | 121.0 | 70.0 | Rc 1/4 | SPMG 110408 DG |
| TDR 2420-40T2-14 | 42.00 | 40.00 | 60.00 | 193.00 | 84.0 | 123.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 2430-40T2-14 | 43.00 | 40.00 | 60.00 | 196.00 | 86.0 | 126.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 2440-40T2-14 | 44.00 | 40.00 | 60.00 | 198.00 | 88.0 | 128.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 2450-40T2-14 | 45.00 | 40.00 | 60.00 | 202.00 | 90.0 | 132.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 2460-40T2-14 | 46.00 | 40.00 | 60.00 | 205.00 | 92.0 | 135.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 2470-40T2-14 | 47.00 | 40.00 | 60.00 | 207.00 | 94.0 | 137.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 2480-40T2-14 | 48.00 | 40.00 | 60.00 | 210.00 | 96.0 | 140.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 2490-40T2-14 | 49.00 | 40.00 | 60.00 | 212.00 | 98.0 | 142.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
| TDR 2500-40T2-14 | 50.00 | 40.00 | 60.00 | 215.00 | 100.0 | 145.0 | 70.0 | Rc 1/4 | SPMG 140512 DG |
