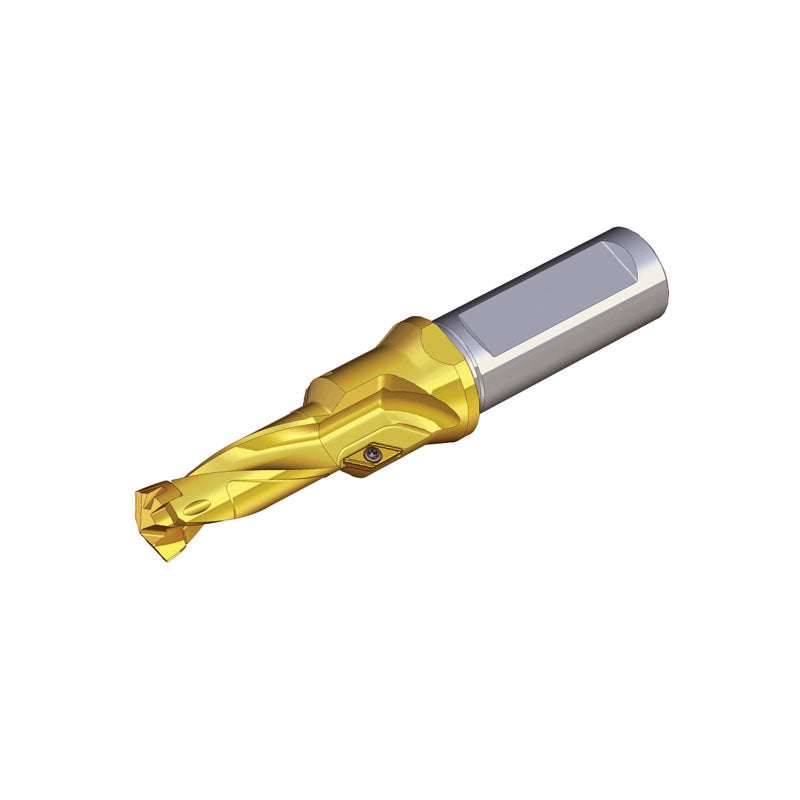

TCD-M**(PRE-THREAD) DRILLRUSH Head changeable drills with chamfering for pre-thread holes (M8.0 - M24.0)
TCD-M**(PRE-THREAD) DRILLRUSH Head changeable drills with chamfering for pre-thread holes (M8.0 - M24.0)
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
P+ Self-centering Head-changeable Drills for Premium Hole Machining
» Head-changeable quick change system
» Premium hole quality due to self-centering cutting edge (P+)
» Minimize process more than 8xD deep drilling without the need for a pilot hole (P+)
» High productivity in short depth of drilling (P+)
» Deep drilling capacity up to 12xD
» Excellent surface finish and smooth chip evacuation
» High flexibility with one drill body for a series of different sized heads
» Various types of drill heads

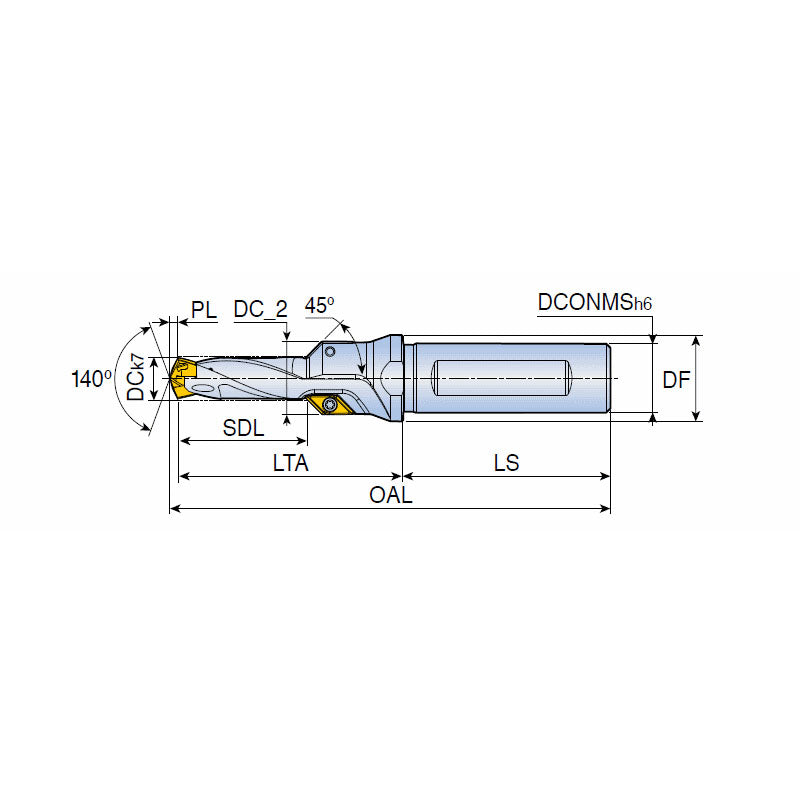

| Designation | Th | DC | DCN | DCX | SDL | LTA | LS | OAL | DC_2 | DCONMS | DF | PL | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCD 068X21X12T3-M8 | M08 | 6.8 | 6.50 | 6.90 | 21.0 | 43.77 | 45.0 | 90.00 | 13.50 | 12.00 | 16.00 | 1.23 | TCD-068-P |
| TCD 085X26X12T3-M10 | M10 | 8.50 | 8.50 | 8.90 | 26.0 | 48.71 | 45.0 | 95.00 | 15.50 | 12.00 | 16.00 | 1.29 | TCD-085-P |
| TCD 102X30X16T3-M12 | M12 | 10.2 | 10.00 | 10.40 | 30.0 | 52.46 | 48.0 | 102.00 | 17.00 | 16.00 | 20.00 | 1.54 | TCD-102-P |
| TCD 120X35X16T3-M14 | M14 | 12.00 | 12.00 | 12.40 | 35.0 | 59.18 | 48.0 | 109.00 | 19.00 | 16.00 | 20.00 | 1.82 | TCD-120-P |
| TCD 140X39X20T3-M16 | M16 | 14.00 | 14.00 | 14.40 | 39.0 | 66.88 | 50.0 | 119.00 | 21.00 | 20.00 | 25.00 | 2.12 | TCD-140-P |
| TCD 175X42X20T3-M20 | M20 | 17.5 | 17.00 | 17.90 | 42.0 | 69.32 | 50.0 | 122.00 | 24.50 | 20.00 | 27.00 | 2.68 | TCD-175-P |
| TCD 210X48X25T2-M24 | M24 | 21.00 | 21.00 | 21.90 | 48.0 | 76.82 | 56.0 | 136.00 | 28.00 | 25.00 | 32.00 | 3.18 | TCD-210-P |
