Product List

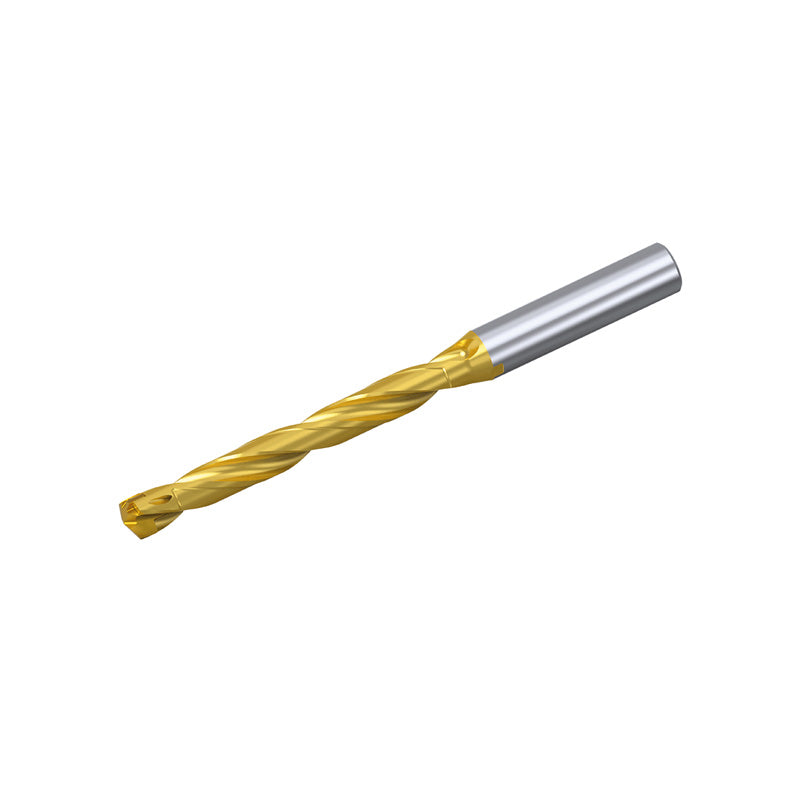

Head Changeable Small Diameter Drills
» Head-changeable drills for small diameter: 4.0-5.9 mm
» Available in two holder depths: 3xD and 5xD
» Shanks are compatible with a wide range of diameter heads
» Excellent machining performance and high productivity
» No set-up time and no head change offsetting required

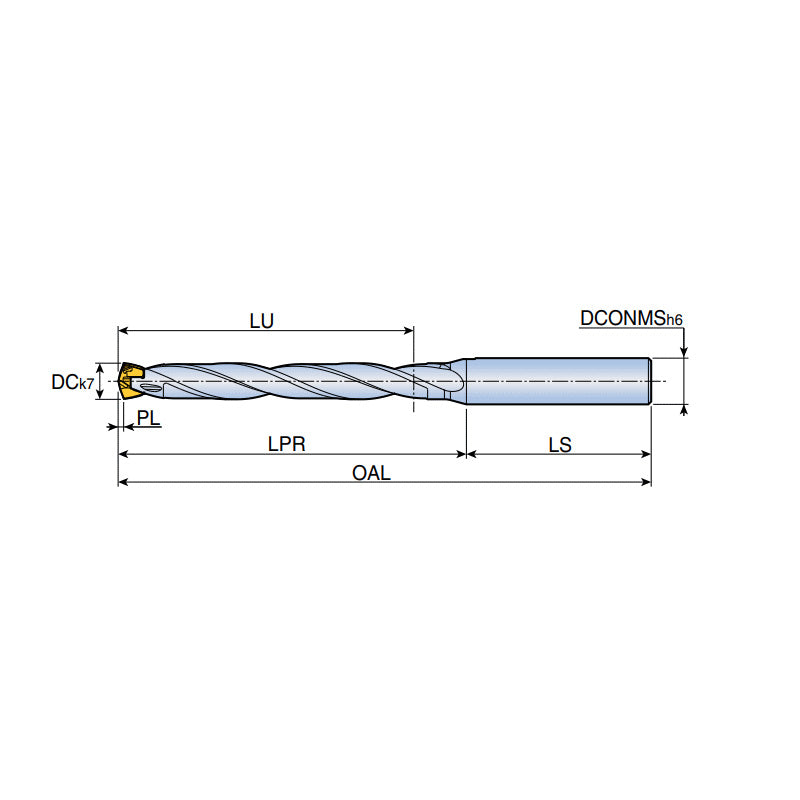

| Designation | DCN | DCX | DCONMS | LU | LPR | LS | OAL | PL | SSC | CL key | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TCD 060-064-08A0-8D | 6.00 | 6.40 | 8.00 | 49.0 | 58.00 | 36.0 | 94.00 | 0.96 | 6 | K TCD D060-D099 | TCD-060 |
| TCD 065-069-08A0-8D | 6.50 | 6.90 | 8.00 | 53.0 | 62.30 | 36.0 | 98.30 | 1.18 | 6.5 | K TCD D060-D099 | TCD-065 |
| TCD 070-074-08A0-8D | 7.00 | 7.40 | 8.00 | 57.0 | 66.60 | 36.0 | 102.60 | 1.01 | 7 | K TCD D060-D099 | TCD-070 |
| TCD 075-079-08A0-8D | 7.50 | 7.90 | 8.00 | 61.0 | 70.60 | 36.0 | 106.60 | 1.10 | 7.5 | K TCD D060-D099 | TCD-070 |
| TCD 080-084-10A0-8D | 8.00 | 8.40 | 10.00 | 65.0 | 75.40 | 40.0 | 115.40 | 1.20 | 8 | K TCD D060-D099 | TCD-080 |
| TCD 085-089-10A0-8D | 8.50 | 8.90 | 10.00 | 69.0 | 79.40 | 40.0 | 119.40 | 1.29 | 8.5 | K TCD D060-D099 | TCD-080 |
| TCD 090-094-10A0-8D | 9.00 | 9.40 | 10.00 | 73.0 | 83.80 | 40.0 | 123.80 | 1.35 | 9 | K TCD D060-D099 | TCD-090 |
| TCD 095-099-10A0-8D | 9.50 | 9.90 | 10.00 | 77.0 | 87.80 | 40.0 | 127.80 | 1.44 | 9.5 | K TCD D060-D099 | TCD-090 |
