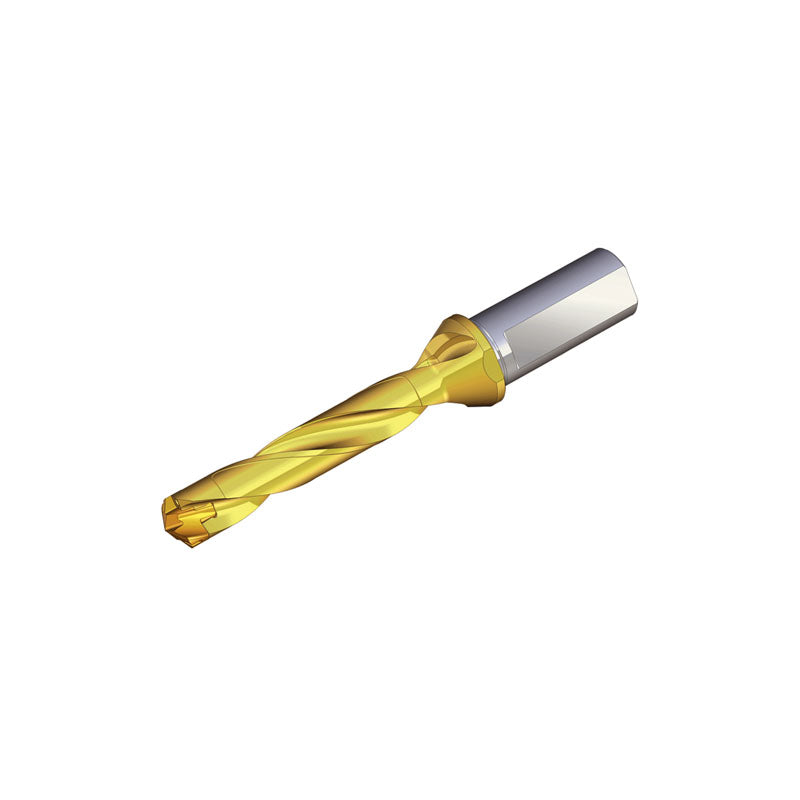

TCD-5XD (Weldon Shank) DRILLRUSH Head changeable drills with Weldon shank (5xD) and coolant holes

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

TCD-5XD (Weldon Shank)  DRILLRUSH Head changeable drills with Weldon shank (5xD) and coolant holes - Big-tools Industrial Supply Tools for Metal Cutting

TCD-5XD (Weldon Shank) DRILLRUSH Head changeable drills with Weldon shank (5xD) and coolant holes

TCD-5XD (Weldon Shank) DRILLRUSH Head changeable drills with Weldon shank (5xD) and coolant holes

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: TCD 060-064-12T3-5D

Product List

Head Changeable Small Diameter Drills

» Head-changeable drills for small diameter: 4.0-5.9 mm
» Available in two holder depths: 3xD and 5xD
» Shanks are compatible with a wide range of diameter heads
» Excellent machining performance and high productivity
» No set-up time and no head change offsetting required

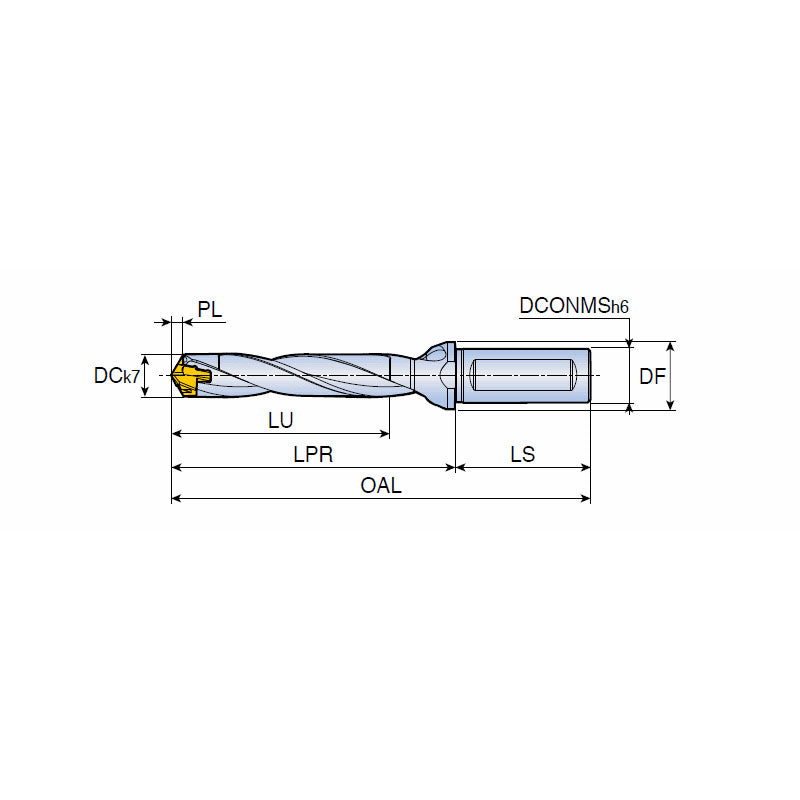

Designation DCN DCX DCONMS DF LU LPR LS OAL SSC PL MIID
TCD 060-064-12T3-5D 6.00 6.40 12.00 16.00 31.0 44.0 45.0 89.00 6 0.96 TCD-060-P
TCD 065-069-12T3-5D 6.50 6.90 12.00 16.00 34.0 46.8 45.0 91.80 6.5 1.18 TCD-065-P
TCD 070-074-12T3-5D 7.00 7.40 12.00 16.00 36.0 49.6 45.0 94.60 7 1.01 TCD-070-P
TCD 075-079-12T3-5D 7.50 7.90 12.00 16.00 39.0 52.1 45.0 97.10 7 1.10 TCD-075-P
TCD 080-084-12T3-5D 8.00 8.40 12.00 16.00 41.0 55.4 45.0 100.40 8 1.20 TCD-080-P
TCD 085-089-12T3-5D 8.50 8.90 12.00 16.00 44.0 57.9 45.0 102.90 8 1.29 TCD-085-P
TCD 090-094-12T3-5D 9.00 9.40 12.00 16.00 46.0 60.8 45.0 105.80 9 1.35 TCD-090-P
TCD 095-099-12T3-5D 9.50 9.90 12.00 16.00 49.0 63.3 45.0 108.30 9 1.44 TCD-095-P
TCD 100-104-16T3-5D 10.00 10.40 16.00 20.00 52.0 66.2 48.0 114.20 10 1.50 TCD-100-P
TCD 105-109-16T3-5D 10.50 10.90 16.00 20.00 55.0 68.7 48.0 116.70 10 1.59 TCD-105-P
TCD 110-114-16T3-5D 11.00 11.40 16.00 20.00 57.0 71.6 48.0 119.60 11 1.67 TCD-110-P
TCD 115-119-16T3-5D 11.50 11.90 16.00 20.00 60.0 74.1 48.0 122.10 11 1.76 TCD-115-P
TCD 120-124-16T3-5D 12.00 12.40 16.00 20.00 62.0 77.0 48.0 125.00 12 1.82 TCD-120-P
TCD 125-129-16T3-5D 12.50 12.90 16.00 20.00 64.0 79.5 48.0 127.50 12 1.91 TCD-125-P
TCD 130-134-16T3-5D 13.00 13.40 16.00 20.00 67.0 82.6 48.0 130.60 13 1.96 TCD-130-P
TCD 135-139-16T3-5D 13.50 13.90 16.00 20.00 70.0 85.1 48.0 133.10 13 2.05 TCD-135-P
TCD 140-144-16T3-5D 14.00 14.40 16.00 20.00 72.0 90.2 48.0 138.20 14 2.12 TCD-140-P
TCD 145-149-16T3-5D 14.50 14.90 16.00 20.00 75.0 92.7 48.0 140.70 14 2.21 TCD-145-P
TCD 150-159-20T3-5D 15.00 15.90 20.00 25.00 77.0 98.7 50.0 148.70 15 2.27 TCD-150-P
TCD 160-169-20T3-5D 16.00 16.90 20.00 25.00 82.0 105.3 50.0 155.30 16 2.42 TCD-160-P
TCD 170-179-20T3-5D 17.00 17.90 20.00 25.00 88.0 111.9 50.0 161.90 17 2.59 TCD-170-P
TCD 180-189-25T2-5D 18.00 18.90 25.00 32.00 93.0 118.5 56.0 174.50 18 2.73 TCD-180-P
TCD 190-199-25T2-5D 19.00 19.90 25.00 32.00 98.0 125.0 56.0 181.00 19 2.88 TCD-190-P
TCD 200-209-25T2-5D 20.00 20.90 25.00 32.00 103.0 131.6 56.0 187.60 20 3.02 TCD-200-P
TCD 210-219-25T2-5D 21.00 21.90 25.00 32.00 108.0 138.2 56.0 194.20 21 3.18 TCD-210-P
TCD 220-229-25T2-5D 22.00 22.90 25.00 32.00 113.0 144.8 56.0 200.80 22 3.24 TCD-220-P
TCD 230-239-32T2-5D 23.00 23.90 32.00 42.00 118.0 151.3 60.0 211.30 23 3.46 TCD-230-P
TCD 240-249-32T2-5D 24.00 24.90 32.00 42.00 124.0 157.9 60.0 217.90 24 3.62 TCD-240-P
TCD 250-259-32T2-5D 25.00 25.90 32.00 42.00 129.0 164.5 60.0 224.50 25 3.80 TCD-250-P
