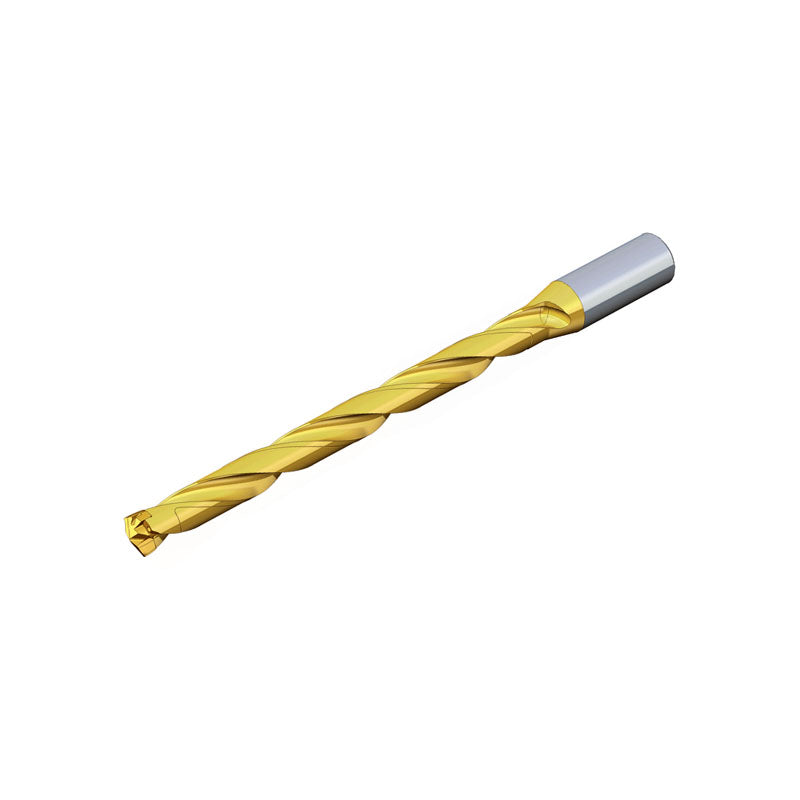

TCD-12XD (CYLINDRICAL) DRILLRUSH Head changeable drills with cylindrical shank (12xD) and coolant holes

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

TCD-12XD (CYLINDRICAL) DRILLRUSH Head changeable drills with cylindrical shank (12xD) and coolant holes - Big-tools Industrial Supply Tools for Metal Cutting

TCD-12XD (CYLINDRICAL) DRILLRUSH Head changeable drills with cylindrical shank (12xD) and coolant holes

TCD-12XD (CYLINDRICAL) DRILLRUSH Head changeable drills with cylindrical shank (12xD) and coolant holes

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: TCD 080-084-12S0-12D

Product List

Head Changeable Small Diameter Drills

» Head-changeable drills for small diameter: 4.0-5.9 mm
» Available in two holder depths: 3xD and 5xD
» Shanks are compatible with a wide range of diameter heads
» Excellent machining performance and high productivity
» No set-up time and no head change offsetting required

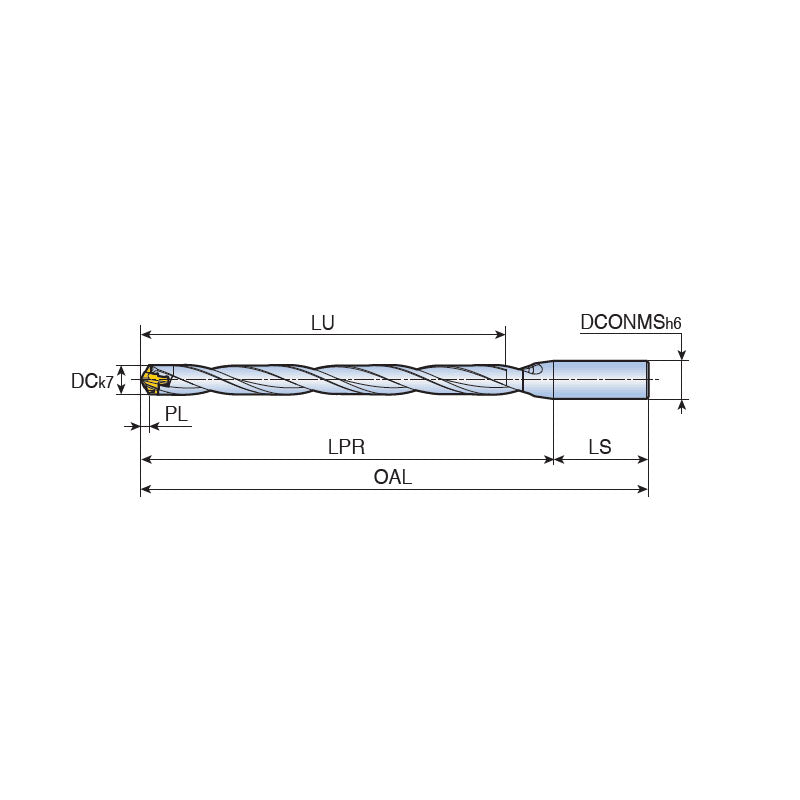

Designation DCN DCX DCONMS LPR LS LU OAL PL SSC MIID
TCD 080-084-12S0-12D 8.00 8.40 12.00 111.40 45.0 97.0 156.40 1.20 8 TCD-080-P
TCD 085-089-12S0-12D 8.50 8.90 12.00 117.40 45.0 103.0 162.40 1.29 8 TCD-085-P
TCD 090-094-12S0-12D 9.00 9.40 12.00 123.80 45.0 109.0 168.80 1.35 9 TCD-090-P
TCD 095-099-12S0-12D 9.50 9.90 12.00 129.80 45.0 115.0 174.80 1.44 9 TCD-095-P
TCD 100-104-16S0-12D 10.00 10.40 16.00 136.20 48.0 122.0 184.20 1.50 10 TCD-100-P
TCD 105-109-16S0-12D 10.50 10.90 16.00 142.20 48.0 128.0 190.20 1.59 10 TCD-105-P
TCD 110-114-16S0-12D 11.00 11.40 16.00 148.60 48.0 134.0 196.60 1.67 11 TCD-110-P
TCD 115-119-16S0-12D 11.50 11.90 16.00 154.60 48.0 140.0 202.60 1.76 11 TCD-115-P
TCD 120-124-16S0-12D 12.00 12.40 16.00 161.00 48.0 146.0 209.00 1.82 12 TCD-120-P
TCD 125-129-16S0-12D 12.50 12.90 16.00 167.00 48.0 152.0 215.00 1.91 12 TCD-125-P
TCD 130-134-16S0-12D 13.00 13.40 16.00 173.60 48.0 158.0 221.60 1.96 13 TCD-130-P
TCD 135-139-16S0-12D 13.50 13.90 16.00 179.60 48.0 164.0 227.60 2.05 13 TCD-135-P
TCD 140-144-16S0-12D 14.00 14.40 16.00 188.20 48.0 170.0 236.20 2.12 14 TCD-140-P
TCD 145-149-16S0-12D 14.50 14.90 16.00 194.20 48.0 176.0 242.20 2.21 14 TCD-145-P
TCD 150-159-20S0-12D 15.00 15.90 20.00 203.70 50.0 182.0 253.70 2.27 15 TCD-150-P
TCD 160-169-20S0-12D 16.00 16.90 20.00 217.30 50.0 194.0 267.30 2.42 16 TCD-160-P
TCD 170-179-20S0-12D 17.00 17.90 20.00 230.90 50.0 207.0 280.90 2.59 17 TCD-170-P
TCD 180-189-25S0-12D 18.00 18.90 25.00 244.50 56.0 219.0 300.50 2.73 18 TCD-180-P
TCD 190-199-25S0-12D 19.00 19.90 25.00 258.00 56.0 221.0 314.00 2.88 19 TCD-190-P
TCD 200-209-25S0-12D 20.00 20.90 25.00 271.60 56.0 243.0 327.60 3.02 20 TCD-200-P
TCD 210-219-25S0-12D 21.00 21.90 25.00 285.20 56.0 255.0 341.20 3.18 21 TCD-210-P
TCD 220-229-25S0-12D 22.00 22.90 25.00 298.80 56.0 267.0 354.80 3.24 22 TCD-220-P
TCD 230-239-32S0-12D 23.00 23.90 32.00 312.30 60.0 289.0 372.30 3.46 23 TCD-230-P
TCD 240-249-32S0-12D 24.00 24.90 32.00 325.90 60.0 292.0 385.90 3.62 24 TCD-240-P
TCD 250-259-32S0-12D 25.00 25.90 32.00 339.50 60.0 304.0 399.50 3.80 25 TCD-250-P
