TB-B-T0-B Single-edged indexable reamers for blind holes

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

TB-B-T0-B Single-edged indexable reamers for blind holes - Big-tools Industrial Supply Tools for Metal Cutting

TB-B-T0-B Single-edged indexable reamers for blind holes

TB-B-T0-B Single-edged indexable reamers for blind holes

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: TB-B08.000-S-16T0-1B

Product List

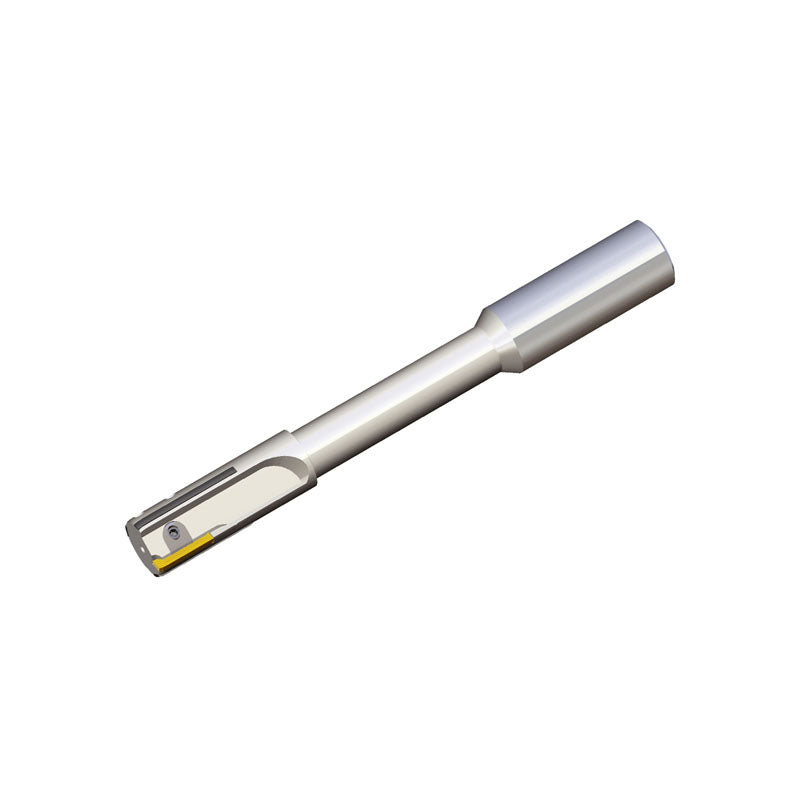

Single edged reamer for high speed reaming

» Two cutting edges for improved economy
» Optimal internal coolant supply system according to hole type
» Available for interrupted applications
» Extreme surface finishing and cylindricity for IT6 hole tolerance

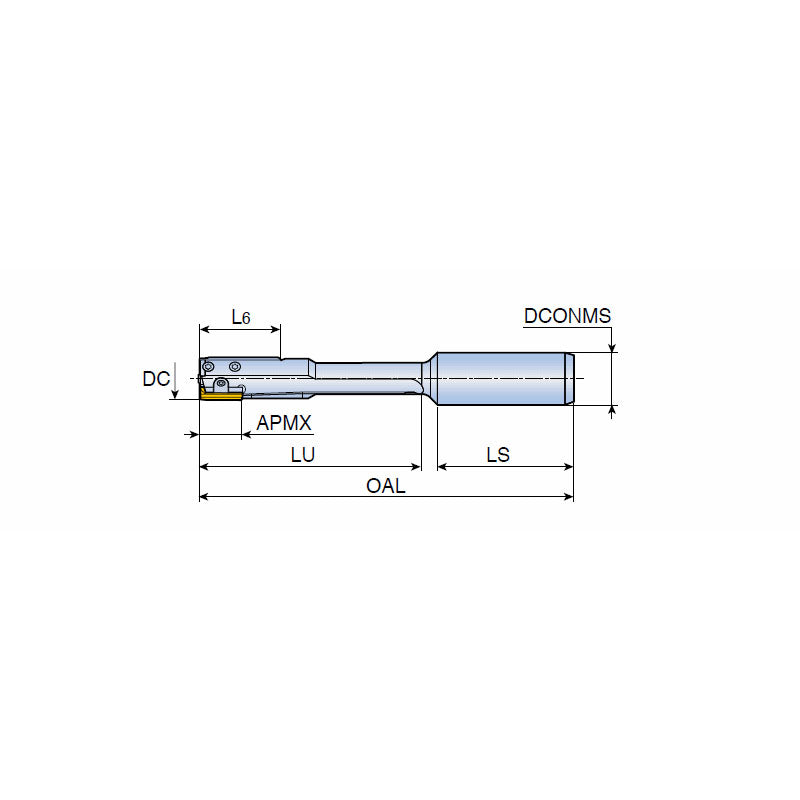

Designation DC LS LU OAL APMX L6 DCONMS SSC
TB-B08.000-S-16T0-1B 8.000 45.0 75.0 123.50 15.50 30.00 16.00 1.00
TB-B10.000-S-16T0-2B 10.000 45.0 75.0 123.50 15.50 30.00 16.00 2.00
TB-B12.000-S-16T0-3B 12.000 45.0 85.0 135.00 17.00 30.00 16.00 3.00
TB-B14.000-S-16T0-3B 14.000 45.0 85.0 135.00 17.00 30.00 16.00 3.00
TB-B15.000-S-16T0-3B 15.000 45.0 85.0 135.00 17.00 30.00 16.00 3.00
TB-B17.000-S-20T0-3B 17.000 50.0 110.0 165.00 17.00 30.00 20.00 3.00
TB-B18.000-S-20T0-3B 18.000 50.0 110.0 165.00 17.00 30.00 20.00 3.00
TB-B20.000-S-25T0-3B 20.000 56.0 110.0 171.00 17.00 30.00 25.00 3.00
TB-B21.000-S-25T0-3B 21.000 56.0 110.0 171.00 17.00 30.00 25.00 3.00
TB-B22.000-S-25T0-3B 22.000 56.0 130.0 191.00 17.00 30.00 25.00 3.00
TB-B23.000-S-25T0-3B 23.000 56.0 130.0 191.00 17.00 30.00 25.00 3.00
TB-B25.000-S-25T0-3B 25.000 56.0 130.0 191.00 17.00 30.00 25.00 3.00
TB-B27.000-S-25T0-4B 27.000 56.0 160.0 221.00 22.50 30.00 25.00 4.00
TB-B28.000-S-25T0-4B 28.000 56.0 160.0 221.00 22.50 30.00 25.00 4.00
TB-B29.000-S-25T0-4B 29.000 56.0 160.0 221.00 22.50 30.00 25.00 4.00
TB-B32.000-S-25T0-4B 32.000 56.0 160.0 221.00 22.50 30.00 25.00 4.00
