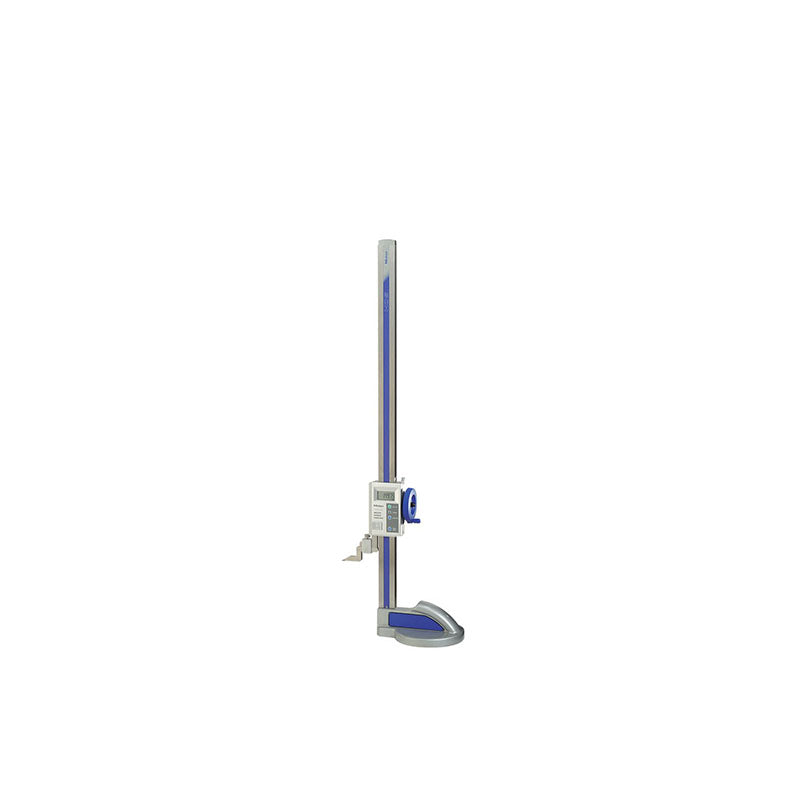

Series 570 - ABSOLUTE Digimatic Height Gage with Slider Feed Wheel

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

Series 570 - ABSOLUTE Digimatic Height Gage with Slider Feed Wheel

Series 570 - ABSOLUTE Digimatic Height Gage with Slider Feed Wheel

Series 570 - ABSOLUTE Digimatic Height Gage with Slider Feed Wheel

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: 570-302

Features & Benefits

The Mitutoyo ABSOLUTE digital height gage features a large slider feed wheel for easy, smooth measurements. The  built-in ABSOLUTE linear encoder eliminates the need for setting the reference point at every power on, making accurate measurements quick and easy. The hand-operated slider with fine adjustment carriage makes movements smooth and measurements precise. Includes a carbide-tipped long scriber which is highly durable and creates accurate marks on your workpiece.

  • Available in Metric and Inch/Metric models
  • Large clamp lever provides reliable slider clamp operation
  • Metric models are available in ranges of: 0-300mm and 0-600mm
  • Inch/Metric models available in ranges of: 0-12”/0-300mm, 0-18”/0-450mm and 0-24”/0-600mm
  • SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
  • Display features large LCD characters (11mm in height) for easier measurement reading and reduced eye strain
  • Large function buttons on display are positioned for easy operation
  • Durable, rigid construction ensures repeatable measurements over a longer lifespan
  • Base is shaped to provide a secure grip
  • Functions include Origin setting, ABS/INC switching, Power On/Off, -/+ switching, Data hold, Data output, and inch/mm conversion (on inch/metric models only)
  • Alarm: Low Voltage, Counting Value Composition Error

Technical Data

Technology: Digimatic
Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
Max Response Speed: Unlimited
Display: LCD
Battery: SR44 (1 pc.) 938882
(Customer is required to provide their own batteries)
SPC Output: Yes

Product List

Order No. Units Range Resolution Accuracy Mass Required Accessories Optional Accessories
570-302 Metric 0-300mm 0.01mm ±0.03mm 4.6kg - -
570-304 Metric 0-600mm 0.01mm ±0.05mm 6.4kg - -
570-312 Inch 0-300mm / 0-12" 0.01mm / 0.0005" ±0.0015" 4.6kg - -
570-313 Inch 0-450mm / 0-18" 0.01mm / 0.0005" ±0.002" 5.9kg - -
570-402 Metric 0-300mm 0.01mm ±0.03mm 4.6kg - -
570-404 Metric 0-600mm 0.01mm ±0.05mm 6.4kg - -
570-412 Inch 0-300mm / 0-12" 0.01mm / 0.0005" ±0.0015" 4.6kg - -
570-413 Inch 0-450mm / 0-18" 0.01mm / 0.0005" ±0.002" 5.9kg - -
570-414 Inch 0-600mm / 0-24" 0.01mm / 0.0005" ±0.002" 6.4kg - -
