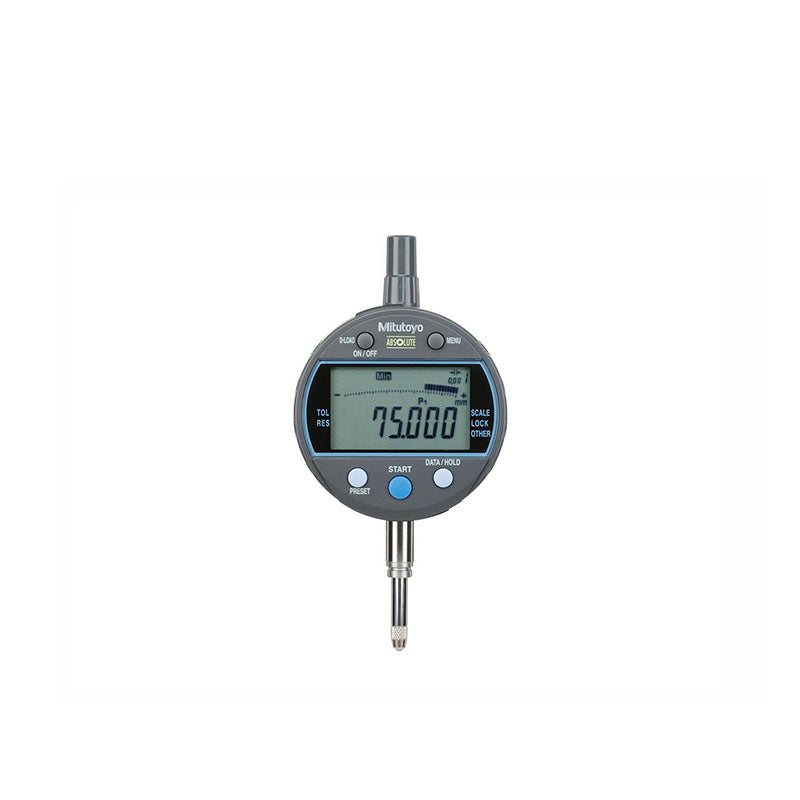

Series 543 - ABSOLUTE Digimatic Bore Gage Type Indicator ID-C

Series 543 - ABSOLUTE Digimatic Bore Gage Type Indicator ID-C

Series 543 - ABSOLUTE Digimatic Bore Gage Type Indicator ID-C

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: 543-310B

Features & Benefits

The Mitutoyo ABS digital ID-C digital indicators are specially designed for bore gage applications which are dedicated to providing highly accurate inside measurements up to 12.7mm/.5” in depth. Five buttons and status icons provide simple operation of many functions including measurement data memory to store up to nine measurement results. A Key Lock and Parameter Lock feature prevents accidental changing of settings during operation.

  • Available in Metric and Inch/Metric models
  • Available with SPC output capabilities
  • Fast measurement frequency allows users to increase the number of readings per second, from 10 to 50, allowing for higher accuracy measurements of TIR and MAX/MIN
  • Improved parameter setting software
  • Analog bar provides easy-to-read values when scanning for Max, Min and TIR values
  • Go/No-Go judgements are performed by setting the upper and lower tolerances
  • Up to three sets of master values and upper/lower tolerance values can be memorized
  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
  • Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
  • SPC output function allows for quick and easy data management in real time
  • Functions include Key lock, parameter lock, PC-USB input, analog bar, fast measuring frequency, peak detection, calculation, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
  • Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
  • Unlimited response speed eliminates over-speed errors
  • IP42 for protection against objects greater than 1mm and water
  • Supplied in a fitted plastic case

SERIES 543 Technical Data

Technology: Digimatic
IP Rating: IP42
Selectable resolution: Yes
Measuring Force: 1.5 or lessN
Back Type: Flat Back
SPC Output: Yes
Display: LCD
Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
Max Response Speed: Unlimited
Battery: CR2032 (1 pc.) 05SAA217
(Customer is required to provide their own batteries)
Optional Accessories: 21EZA313, 905338, 905409

Product List

Order No. Units Min Range Max Range Resolution Accuracy Stem diameter Thread type ANSI/AGD type ISO/JIS type
543-310B Metric 0mm 12.7mm 0.001, 0.01mm ±0.003mm 8mm M2.5 X 0.45 - Yes
543-311B Metric, Inch 0" / 0mm .5" / 12.7mm .0001, .0005, .00005" / 0.001, 0.01mm ±.0001" / ±0.003mm 8mm M2.5 X 0.45 - Yes
543-312B Metric, Inch 0" / 0mm .5" / 12.7mm .0001, .0005, .00005" / 0.001, 0.01mm ±.0001" / ±0.003mm 3/8" 4-48 UNF Yes -
