Specification: 187-904

Features & Benefits

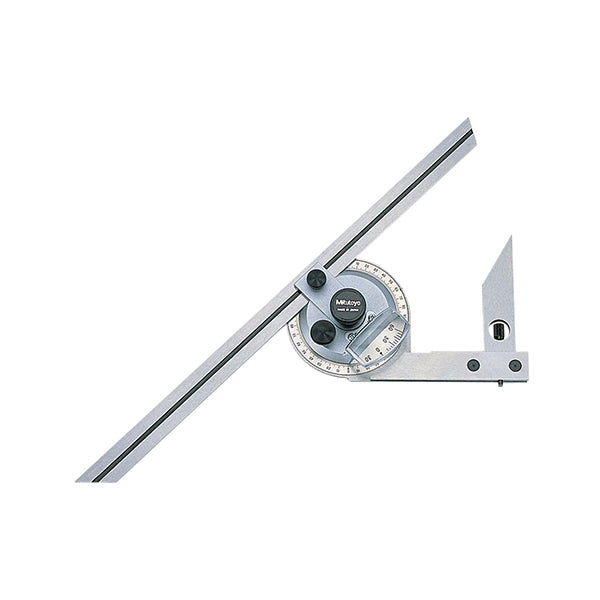

The Mitutoyo Universal Bevel Protractor features a blade with an easy-to-use locking clamp which shows precise angle measurements on a dial gage in 1° graduations. A Vernier scale enables fine measurements for better accuracy with a resolution to each 5 minutes. The protractor measures in clockwise and counterclockwise directions to quickly measure angles for repeatable angle cuts or workpiece positioning.

  • Available with 6” or 12” blade
  • Center knob locks blade position
  • Measuring range of 3×90°
  • Built-in dial magnifying glass makes angle readings easier
  • Protractor can be attached to a Height Gage
  • Body is constructed of stainless steel for durability and corrosion resistance
  • Blade is removable

SERIES 187 Technical Data

Optional Accessories:
187-103, 187-104, 187-105, 950749, 950750


Product List

Order No.: Dial: Accuracy: Blade Size: Diameter:
187-904 ± 5’ 6" 2.56” / 70mm
187-906 ± 5’ 12" 2.56” / 70mm
