Product Information

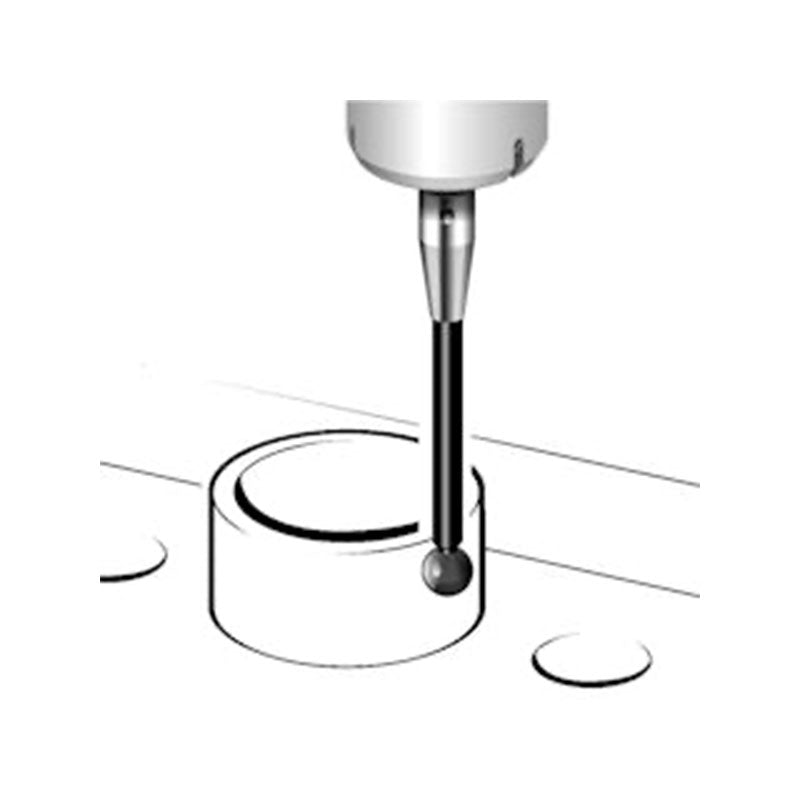

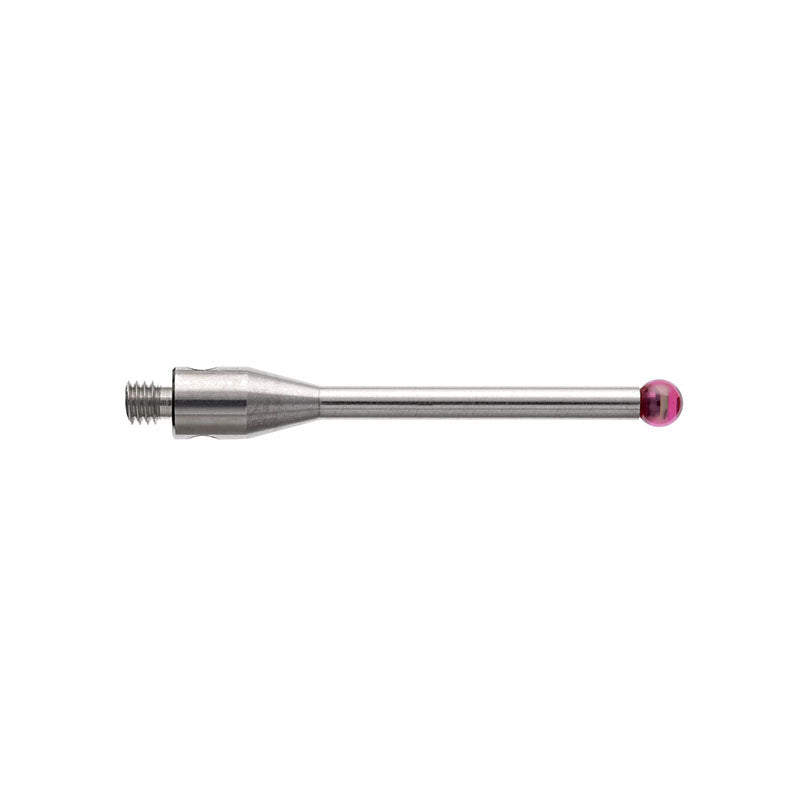

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A stainless steel stem offers excellent rigidity and is ideal for applications where weight is not critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
REVO recommended stylus, with RSH175, RSH250, RHS350, RSH450 and RSH500 module.
Technical table
| Ball diameter (mm) | 2 |
|---|---|
| Centre styli | N |
| EWL (mm) | 14 |
| Holder material | Stainless steel |
| Overall length (mm) | 20 |
| Stem diameter (mm) | 1.4 |
| Stem material | Stainless steel |
| Thread | M2 |
| Tip material | Ruby |
