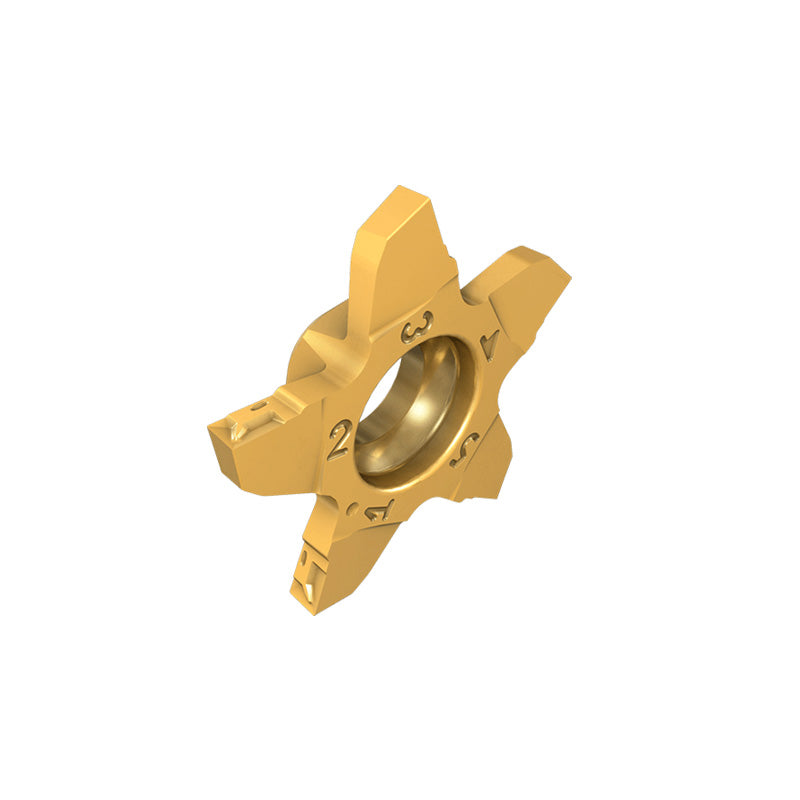

PENTA 17-NX-RS : Pentagonal Inserts for Precision Grooving and Parting Off for Next to Shoulder Applications

Name: PENTA 17-NX-RS : Pentagonal Inserts for Precision Grooving and Parting Off for Next to Shoulder Applications
Brand: ISCAR
SKU: 2026040703B-01
Availability: InStock

Inquiry

Please hurry! Only 200 left in stock

Product variants

Ask An Expert

Quantity:

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

Pairs well with

ISCAR

PCHRS/LS-17 : Tools Carrying Inserts with 5 Cutting Edges for Grooving, Parting, and Recessing Next to High Shoulders

$0.00
Unit price: per

ISCAR

PCADRS/LS-JHP : Adapters with high-pressure coolant holes for PENTACUT 17

$0.00
Unit price: per

ISCAR

PCHRS/LS-17-JHP : Tools Carrying Inserts with 5 Cutting Edges for Shallow Profiling Next to High Shoulders

$0.00
Unit price: per

ISCAR

Y-PCHRS-17 : Y-Axis Screw Lock Integral Tools Carrying PENTACUT Inserts for Grooving, Parting, and Recessing on Swiss-Type Machines

$0.00
Unit price: per

PENTA 17-NX-RS : Pentagonal Inserts for Precision Grooving and Parting Off for Next to Shoulder Applications

Inquiry

Choose Options

Quantity:

PENTA 17-NX-RS : Pentagonal Inserts for Precision Grooving and Parting Off for Next to Shoulder Applications

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}

Inquiry

Specification: PENTA 17N150NX080RS PENTA 17N150NX080RS PENTA 17N200NX080RS PENTA 17N250NX080RS

Product variants

Description
Additional Information
Shipping & Return
Custom Tab

Description

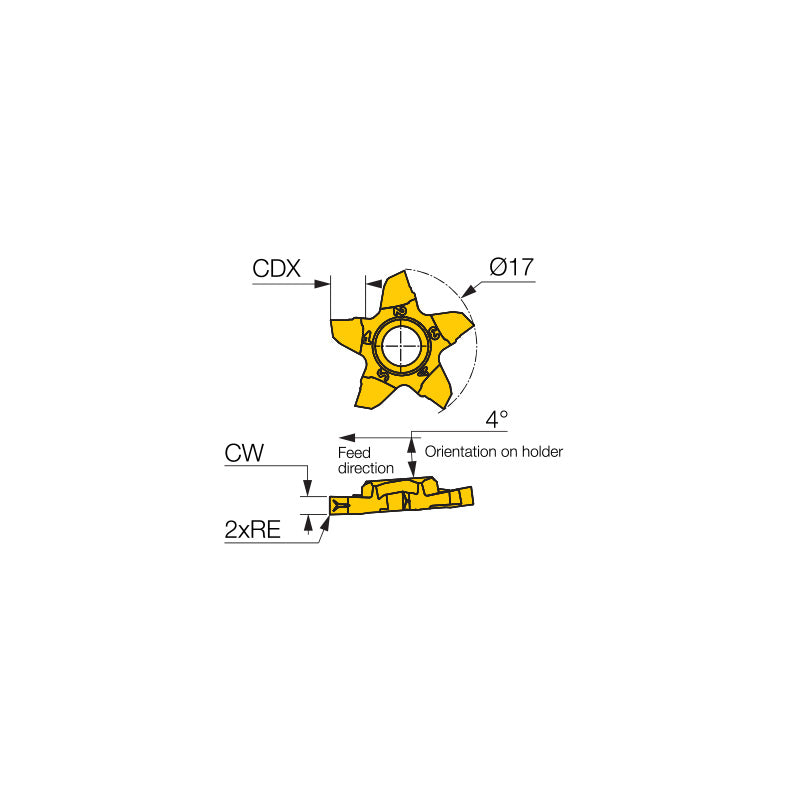

ISO 13399

Designation	CW	CWTOL	RE	RETOL	CDX	fg (min)	fg (max)	ft (min)	ft (max)	ap (min)	ap (max)	Grade
PENTA 17N150NX080RS	1.50	0.020	0.08	0.020	4.00	0.02	0.07	0.020	0.110	0.05	1.80	IC1008
PENTA 17N200NX080RS	2.00	0.020	0.08	0.020	4.00	0.03	0.09	0.030	0.150	0.05	2.50	IC1008
PENTA 17N250NX080RS	2.50	0.020	0.08	0.020	4.00	0.03	0.11	0.030	0.190	0.05	3.10	IC1008
