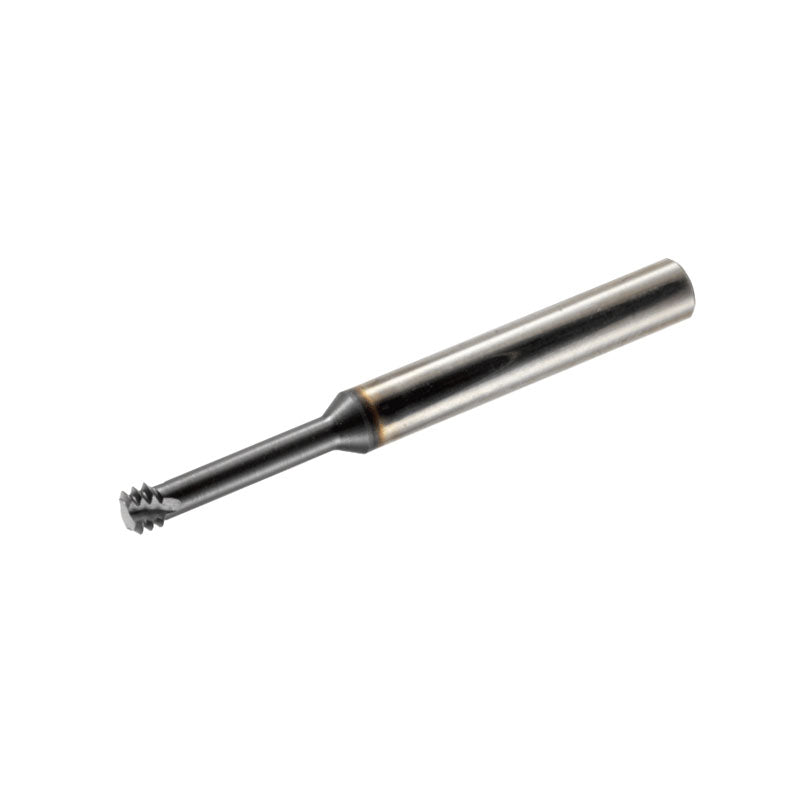

MTECS-MJ Short solid carbide threading end mills for small diameter MJ type thread profiles
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Thread Milling by Interpolation with High Productivity and Accuracy
» Thread milling in one pass
» Short machining time
» Thread milling next to the bottom of blind hole
» Excellent and controlled thread surface finish
» No problem with broken taps
» One tool is suitable for various thread milling profile inserts

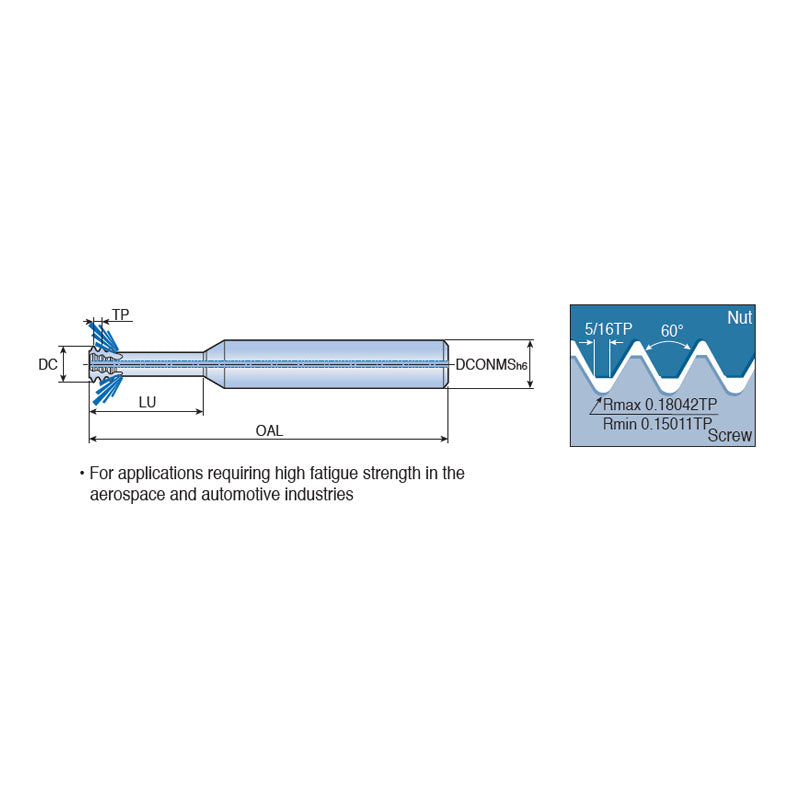

| Designation | TP | DCONMS | DC | LU | OAL | NOF | Grade & Vc |
|---|---|---|---|---|---|---|---|
| MTECS 06032C10 0.7MJ | 0.70 | 6.00 | 3.20 | 10.00 | 58.00 | 3 | TT9030 |
| MTECS 06039C12 0.8MJ | 0.80 | 6.00 | 3.90 | 12.50 | 58.00 | 3 | TT9030 |
| MTECS 06048C15 1.0MJ | 1.00 | 6.00 | 4.80 | 15.00 | 58.00 | 3 | TT9030 |
| MTECS08061C20 1.25MJ | 1.25 | 8.00 | 6.10 | 20.00 | 64.00 | 3 | TT9030 |
| MTECS 0808C25 1.5MJ | 1.50 | 8.00 | 8.00 | 25.00 | 64.00 | 3 | TT9030 |
| MTECS10092C30 1.75MJ | 1.75 | 10.00 | 9.20 | 30.00 | 73.00 | 3 | TT9030 |
| MTECS 1010C35 2.0MJ | 2.00 | 10.00 | 10.00 | 35.00 | 73.00 | 3 | TT9030 |
