Specification: 2044A

Features & Benefits

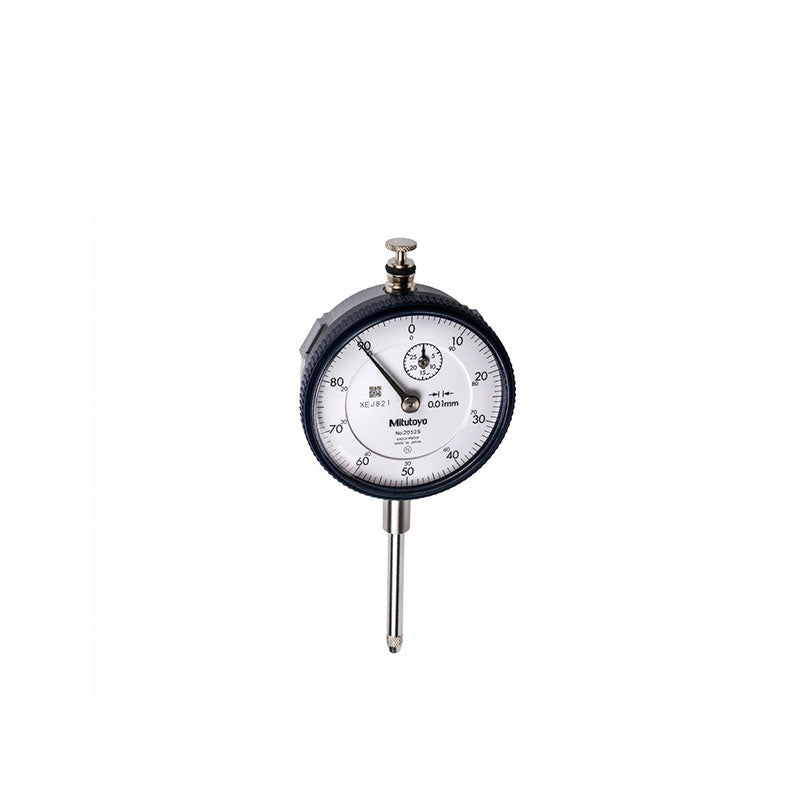

The Mitutoyo metric reading dial indicator performs with excellent accuracy and reliability, and it is available in several graduations and ranges for use in the widest range of applications. The stem and spindle are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. Secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.

  • Available in metric models only
  • Offered with flat back or lug back for mounting purposes
  • Available in several different graduations and ranges
  • A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
  • Unique shock-proof mechanism protects against shock from sudden spindle retraction
  • Rack gear is machine ground for tighter fit, increased accuracy
  • Greater rigidity in the bearing plate reduces retracing error by up to 20%
  • 4-Screw mounting increases impact resistance for better, longer accuracy
  • No through screw hole on the frame provides better dust resistance
  • Contact point is carbide tipped for lasting accuracy, durability
  • Crystal is glare-free with a scratch-resistant coating
  • Manufactured to meet ISO/JIS standards
  • Supplied in a fitted plastic case

Technical Data

Technology: Mechanical
Units: Metric
Stem diameter: 8mm
ISO/JIS type: Yes

Product List

Order No. Graduation Min Range Max Range Range revolution Dial reading Back Type Accuracy Measuring Force Shockproof Waterproof Jeweled Bearing Double scale spacing type Coaxial rev counter Reverse reading Damper lowest point
2044A 0.01mm 0mm 5mm 1mm 0-100 Lug Back ±0.012mm 1.4 or lessN - - - - - - -
2044A-09 0.01mm 0mm 5mm 1mm 0-100 Lug Back ±0.013mm 1.4 or lessN Yes - - - - - -
2044A-60 0.01mm 0mm 5mm 1mm 0-100 Lug Back ±0.012mm 2.5 or lessN - Yes - - - - -
2044AB 0.01mm 0mm 5mm 1mm 0-100 Flat Back ±0.012mm 1.4 or lessN - - - - - - -
2044AB-09 0.01mm 0mm 5mm 1mm 0-100 Flat Back ±.013mm 1.4 or lessN Yes - - - - - -
2044AB-60 0.01mm 0mm 5mm 1mm 0-100 Flat Back ±0.012mm 2.5 or lessN - Yes - - - - -
2045A 0.01mm 0mm 5mm 1mm 0-50-0 Lug Back ±0.012mm 1.4 or lessN - - - - - Yes -
2045AB 0.01mm 0mm 5mm 1mm 0-50-0 Flat Back ±0.012mm 1.4 or lessN - - - - - Yes -
2046A 0.01mm 0mm 10mm 1mm 0-100 Lug Back ±.013mm 1.4 or lessN - - - - - - -
2046A-09 0.01mm 0mm 10mm 1mm 0-100 Lug Back ±0.015mm 1.4 or lessN Yes - - - - - -
2046A-60 0.01mm 0mm 10mm 1mm 0-100 Lug Back ±.013mm 2.5 or lessN - Yes - - - - -
2046AB 0.01mm 0mm 10mm 1mm 0-100 Flat Back ±0.013mm 1.4 or lessN - - - - - - -
2046AB-09 0.01mm 0mm 10mm 1mm 0-100 Flat Back ±.015mm 1.4 or lessN Yes - - - - - -
2046AB-60 0.01mm 0mm 10mm 1mm 0-100 Flat Back ±0.013mm 2.5 or lessN - Yes - - - - -
2047A 0.01mm 0mm 10mm 1mm 0-50-0 Lug Back ±0.013mm 1.4 or lessN - - - - - - -
2047AB 0.01mm 0mm 10mm 1mm 0-50-0 Flat Back ±.013mm 1.4 or lessN - - - - - - -
2050A 0.01mm 0mm 20mm 1mm 0-100 Lug Back ±0.020mm 2.0 or lessN - - - - - - Yes
2050A-01 0.01mm 0mm 20mm 1mm 0-100 Lug Back ±0.02mm 2.0 or lessN - - - - - - -
2050A-19 0.01mm 0mm 20mm 1mm 0-100 Lug Back ±0.020mm 2.0 or lessN Yes - Yes - - - Yes
2050A-60 0.01mm 0mm 20mm 1mm 0-100 Lug Back ±0.020mm 2.5 or lessN - Yes - - - - -
2050AB 0.01mm 0mm 20mm 1mm 0-100 Flat Back ±.020mm 2.0 or lessN - - - - - - Yes
2050AB-19 0.01mm 0mm 20mm 1mm 0-100 Flat Back ±0.020mm 2.0 or lessN Yes - Yes - - - Yes
2050AB-60 0.01mm 0mm 20mm 1mm 0-100 Flat Back ±.020mm 2.5 or lessN - Yes - - - - -
2052A 0.01mm 0mm 30mm 1mm 0-100 Lug Back ±.025mm 2.5 or lessN - - - - - - Yes
2052A-19 0.01mm 0mm 30mm 1mm 0-100 Lug Back ±0.025mm 2.5 or lessN Yes - Yes - - - Yes
2052AB 0.01mm 0mm 30mm 1mm 0-100 Flat Back ±0.025mm 2.5 or lessN - - - - - - Yes
2052AB-19 0.01mm 0mm 30mm 1mm 0-100 Flat Back ±0.025mm 2.5 or lessN Yes - Yes - - - Yes
2109A-10 0.001mm 0mm 1mm 0.2mm 0-100-0 Lug Back ±0.005mm 1.5 or lessN Yes - Yes - - - -
2109A-70 0.001mm 0mm 1mm 0.2mm 0-100-0 Lug Back ±0.005mm 2.0 or lessN Yes Yes Yes - - - -
2109AB-10 0.001mm 0mm 1mm 0.2mm 0-100-0 Flat Back ±0.005mm 1.5 or lessN Yes - Yes - - - -
2109AB-70 0.001mm 0mm 1mm 0.2mm 0-100-0 Flat Back ±0.005mm 2.0 or lessN Yes Yes Yes - - - -
2110A-10 0.001mm 0mm 1mm 0.1mm 0-100 Lug Back ±0.005mm 1.5 or lessN Yes - Yes Yes - - -
2110A-70 0.001mm 0mm 1mm 0.1mm 0-100 Lug Back ±0.005mm 2.0 or lessN Yes Yes Yes Yes - - -
2110AB-10 0.001mm 0mm 1mm 0.1mm 0-100 Flat Back ±0.005mm 1.5 or lessN Yes - Yes Yes - - -
2110AB-70 0.001mm 0mm 1mm 0.1mm 0-100 Flat Back ±0.005mm 2.0 or lessN Yes Yes Yes Yes - - -
2113A-10 0.001mm 0mm 2mm 0.2mm 0-100-0 Lug Back ±0.007mm 1.5 or lessN Yes - Yes - - - -
2113AB-10 0.001mm 0mm 2mm 0.2mm 0-100-0 Flat Back ±0.007mm 1.5 or lessN Yes - Yes - - - -
2118A-10 0.001mm 0mm 5mm 0.2mm 0-100-0 Lug Back ±0.010mm 1.5 or lessN - - Yes - - - -
2118AB-10 0.001mm 0mm 5mm 0.2mm 0-100-0 Flat Back ±.010mm 1.5 or lessN - - Yes - - - -
2119A-10 0.001mm 0mm 5mm 0.2mm 0-100-0 Lug Back ±0.010mm 1.5 or lessN - - Yes - - - -
2119AB-10 0.001mm 0mm 5mm 0.2mm 0-100-0 Flat Back ±.010mm 1.5 or lessN - - Yes - - - -
2124A-10 0.005mm 0mm 5mm 0.5mm 0-50 Lug Back ±0.012mm 1.5 or lessN - - Yes - - - -
2124AB-10 0.005mm 0mm 5mm 0.5mm 0-50 Flat Back ±.012mm 1.5 or lessN - - Yes - - - -
2310A-10 0.01mm 0mm 10mm 1mm 0-100 Lug Back ±0.015mm 1.4 or lessN - - Yes - Yes - -
2310AB-10 0.01mm 0mm 10mm 1mm 0-100 Flat Back ±.015mm 1.4 or lessN - - Yes - Yes - -
2320A-10 0.01mm 0mm 20mm 1mm 0-100 Lug Back ±0.020mm 2.0 or lessN - - Yes - Yes - Yes
2320AB-10 0.01mm 0mm 20mm 1mm 0-100 Flat Back ±.020mm 2.0 or lessN - - Yes - Yes - Yes
2330A-10 0.01mm 0mm 30mm 1mm 0-100 Lug Back ±.025mm 2.5 or lessN - - Yes - Yes - Yes
2330AB-10 0.01mm 0mm 30mm 1mm 0-100 Flat Back ±0.025mm 2.5 or lessN - - Yes - Yes - Yes
2902A 0.01mm 0mm 10mm 1mm 100-0 Lug Back ±.013mm 1.4 or lessN - - - - - Yes -
2902AB 0.01mm 0mm 10mm 1mm 100-0 Flat Back ±0.013mm 1.4 or lessN - - - - - Yes -
2952A 0.01mm 0mm 30mm 1mm 100-0 Lug Back ±0.025mm 2.5 or lessN - - - - - Yes Yes
2952AB 0.01mm 0mm 30mm 1mm 100-0 Flat Back ±0.025mm 2.5 or lessN - - - - - Yes Yes
