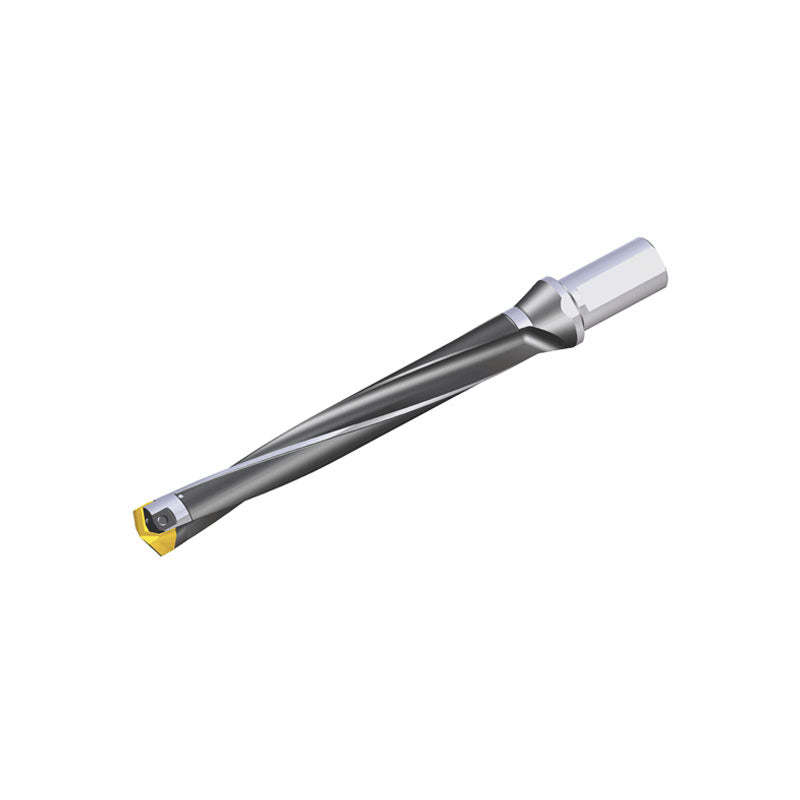

LCD-8XD (Weldon Shank) SPADERUSH head changeable drill body of large dia for high productivity with coolant holes in 8XD drilling depth
LCD-8XD (Weldon Shank) SPADERUSH head changeable drill body of large dia for high productivity with coolant holes in 8XD drilling depth
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
Head-changeable drill for large diameter holemaking
» Unique quick change clamping system:
No need to remove the insert screw from the holder to change the head
» Easier replacement of the drill head in the machine
» Two effective cutting edges for higher productivity
» Stronger rigidity of the unique screw clamp design means
improved productivity

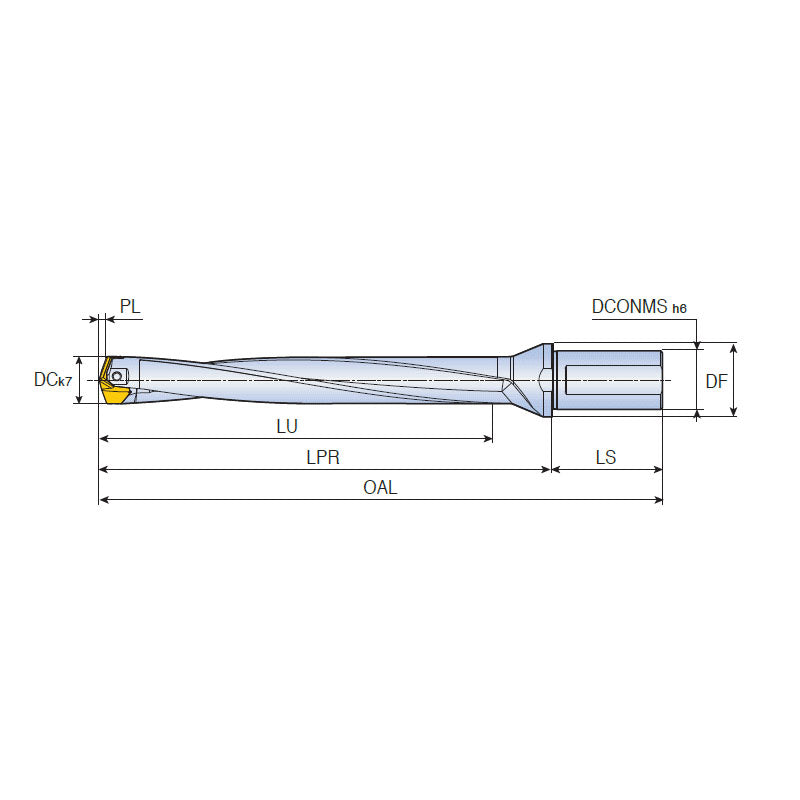

| Designation | DCN | DCX | DCONMS | DF | LU | LPR | LS | OAL | PL | SSC | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LCD 200-209-25T2-8D | 20.00 | 20.90 | 25.00 | 32.00 | 163.1 | 192.10 | 56.0 | 248.10 | 3.11 | 20 | LCD-200-P |
| LCD 210-219-25T2-8D | 21.00 | 21.90 | 25.00 | 32.00 | 171.3 | 200.10 | 56.0 | 256.10 | 3.29 | 21 | LCD-210-P |
| LCD 220-229-25T2-8D | 22.00 | 22.90 | 25.00 | 32.00 | 179.4 | 208.40 | 56.0 | 264.40 | 3.42 | 22 | LCD-220-P |
| LCD 230-239-25T2-8D | 23.00 | 23.90 | 25.00 | 32.00 | 187.6 | 216.40 | 56.0 | 272.40 | 3.60 | 23 | LCD-230-P |
| LCD 240-249-32T2-8D | 24.00 | 24.90 | 32.00 | 40.00 | 195.7 | 230.70 | 60.0 | 290.70 | 3.73 | 24 | LCD-240-P |
| LCD 250-259-32T2-8D | 25.00 | 25.90 | 32.00 | 40.00 | 203.9 | 238.70 | 60.0 | 298.70 | 3.91 | 25 | LCD-250-P |
| LCD 260-269-32T2-8D | 26.00 | 26.90 | 32.00 | 40.00 | 212.0 | 247.00 | 60.0 | 307.00 | 4.04 | 26 | LCD-260-P |
| LCD 270-279-32T2-8D | 27.00 | 27.90 | 32.00 | 40.00 | 220.2 | 255.00 | 60.0 | 315.00 | 4.22 | 27 | LCD-270-P |
| LCD 280-289-32T2-8D | 28.00 | 28.90 | 32.00 | 40.00 | 228.4 | 268.40 | 60.0 | 328.40 | 4.35 | 28 | LCD-280-P |
| LCD 290-299-32T2-8D | 29.00 | 29.90 | 32.00 | 40.00 | 236.5 | 276.40 | 60.0 | 336.40 | 4.53 | 29 | LCD-290-P |
| LCD 300-309-32T2-8D | 30.00 | 30.90 | 32.00 | 42.00 | 244.7 | 284.70 | 60.0 | 344.70 | 4.67 | 30 | LCD-300-P |
| LCD 310-319-32T2-8D | 31.00 | 31.90 | 32.00 | 42.00 | 252.9 | 292.70 | 60.0 | 352.70 | 4.85 | 31 | LCD-310-P |
| LCD 320-329-40T2-8D | 32.00 | 32.90 | 40.00 | 48.00 | 261.0 | 303.00 | 68.0 | 371.00 | 4.98 | 32 | LCD-320-P |
| LCD 330-339-40T2-8D | 33.00 | 33.90 | 40.00 | 48.00 | 269.2 | 311.00 | 68.0 | 379.00 | 5.16 | 33 | LCD-330-P |
| LCD 340-349-40T2-8D | 34.00 | 34.90 | 40.00 | 48.00 | 277.3 | 319.00 | 68.0 | 387.00 | 5.34 | 34 | LCD-340-P |
| LCD 350-359-40T2-8D | 35.00 | 35.90 | 40.00 | 48.00 | 285.4 | 327.40 | 68.0 | 395.40 | 5.44 | 35 | LCD-350-P |
| LCD 360-369-40T2-8D | 36.00 | 36.90 | 40.00 | 48.00 | 293.6 | 335.40 | 68.0 | 403.40 | 5.62 | 36 | LCD-360-P |
| LCD 370-379-40T2-8D | 37.00 | 37.90 | 40.00 | 48.00 | 301.8 | 343.40 | 68.0 | 411.40 | 5.80 | 37 | LCD-370-P |
| LCD 380-389-40T2-8D | 38.00 | 38.90 | 40.00 | 50.00 | 309.9 | 356.90 | 68.0 | 424.90 | 5.91 | 38 | LCD-380-P |
| LCD 390-399-40T2-8D | 39.00 | 39.90 | 40.00 | 50.00 | 318.1 | 364.90 | 68.0 | 432.90 | 6.09 | 39 | LCD-390-P |
| LCD 400-410-40T2-8D | 40.00 | 41.00 | 40.00 | 50.00 | 326.3 | 372.90 | 68.0 | 440.90 | 6.27 | 40 | LCD-400-P |
