HFPAD-JHP : Adapters for Face Machining

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

HFPAD-JHP : Adapters for Face Machining

HFPAD-JHP : Adapters for Face Machining

HFPAD-JHP : Adapters for Face Machining

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry

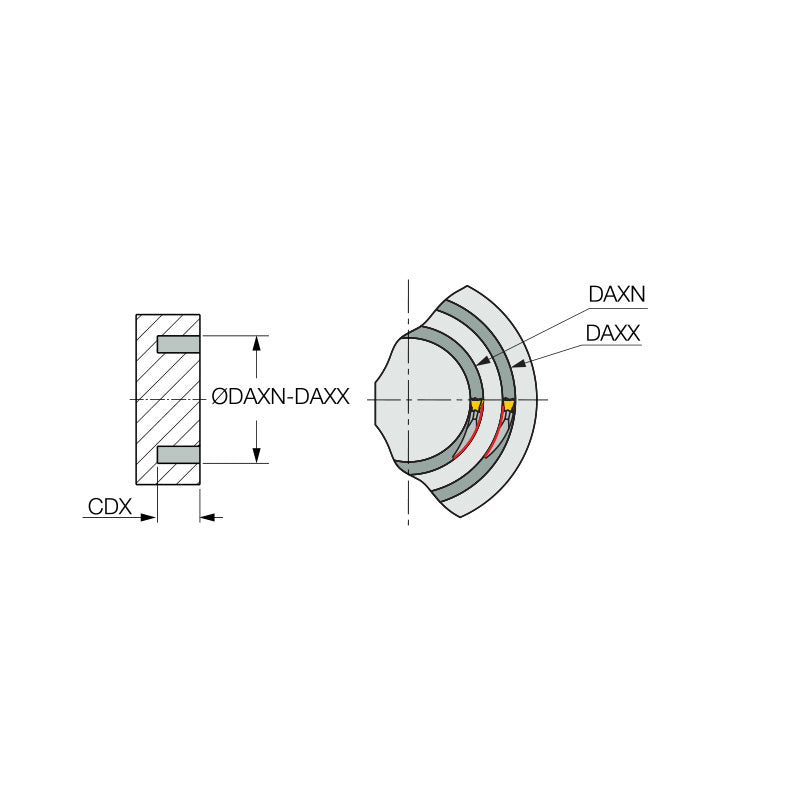

Specification: HFPAD 3L-40-T10-JHP

ISO 13399

Designation
CW
CDX
DAXN
DAXX
WF
HF
OAH
WB
OAL
MIID
  HFPAD 3L-40-T10-JHP
3.00
10.00
40.0
65.0
4.80
24.0
33.00
5.80
39.50
HGPL 3003Y
  HFPAD 3R-30-T10-JHP  3.00 10.00 30.0 40.0 4.80 24.0 33.00 5.80 39.50 GRIP 3003Y
  HFPAD 3R-40-T10-JHP  3.00 10.00 40.0 65.0 4.80 24.0 33.00 5.80 39.50 GRIP 3003Y
  HFPAD 3L-115-T18-JHP  3.00 18.00 115.0 400.0 4.80 24.0 33.00 5.80 43.50 HGPL 3003Y
  HFPAD 3L-65-T18-JHP  3.00 18.00 65.0 115.0 4.80 24.0 33.00 5.80 43.50 HGPL 3003Y
  HFPAD 3R-115-T18-JHP  3.00 18.00 115.0 400.0 4.80 24.0 33.00 5.80 43.50 GRIP 3003Y
  HFPAD 3R-65-T18-JHP  3.00 18.00 65.0 115.0 4.80 24.0 33.00 5.80 43.50 GRIP 3003Y
  HFPAD 4L-44-T14-JHP  4.00 14.00 44.0 58.0 4.80 24.0 33.00 5.80 40.50 HFPL 4004
  HFPAD 4L-58-T14-JHP  4.00 14.00 58.0 88.0 4.80 24.0 33.00 5.80 40.50 HFPL 4004
  HFPAD 4L-88-T14-JHP  4.00 14.00 88.0 175.0 4.50 24.0 33.00 5.80 40.50 HFPL 4004
  HFPAD 4R-44-T14-JHP  4.00 14.00 44.0 58.0 4.80 24.0 33.00 5.80 40.50 GRIP 4004Y
  HFPAD 4R-58-T14-JHP  4.00 14.00 58.0 88.0 4.80 24.0 33.00 5.80 40.50 GRIP 4004Y
  HFPAD 4R-88-T14-JHP  4.00 14.00 88.0 175.0 4.50 24.0 33.00 5.80 40.50 GRIP 4004Y
  HFPAD 4L-175-T20-JHP  4.00 20.00 175.0 800.0 4.80 24.0 33.00 6.50 45.50 HFPL 4004
  HFPAD 4R-175-T20-JHP  4.00 20.00 175.0 800.0 4.80 24.0 33.00 6.50 45.50 GRIP 4004Y
  HFPAD 5L-110-T14-JHP  5.00 14.00 110.0 200.0 4.50 24.0 33.00 6.30 45.50 GRIP 5005Y
  HFPAD 5L-40-T14-JHP  5.00 14.00 40.0 50.0 4.50 24.0 33.00 6.30 40.50 HFPL 5004
  HFPAD 5L-50-T14-JHP  5.00 14.00 50.0 75.0 4.50 24.0 33.00 6.30 40.50 HFPL 5004
  HFPAD 5L-75-T14-JHP  5.00 14.00 75.0 110.0 4.50 24.0 33.00 6.30 40.50 HFPL 5004
  HFPAD 5R-110-T14-JHP  5.00 14.00 110.0 200.0 4.50 24.0 33.00 6.30 45.50 GRIP 5005Y
  HFPAD 5R-40-T14-JHP  5.00 14.00 40.0 50.0 4.50 24.0 33.00 6.30 40.50 GRIP 5005Y
  HFPAD 5R-50-T14-JHP  5.00 14.00 50.0 75.0 4.50 24.0 33.00 6.30 40.50 GRIP 5005Y
  HFPAD 5R-75-T14-JHP  5.00 14.00 75.0 110.0 4.50 24.0 33.00 6.30 40.50 GRIP 5005Y
  HFPAD 5L-200-T20-JHP  5.00 20.00 200.0 800.0 4.50 24.0 33.00 6.60 45.50 HFPL 5004
  HFPAD 5R-200-T20-JHP  5.00 20.00 200.0 800.0 4.50 24.0 33.00 6.60 45.50 GRIP 5005Y
  HFPAD 6L-60-T14-JHP  6.00 14.00 60.0 100.0 4.50 24.0 33.00 6.80 40.50 HFPL 6004
  HFPAD 6R-60-T14-JHP  6.00 14.00 60.0 100.0 4.50 24.0 33.00 6.80 40.50 GRIP 6030Y
  HFPAD 6L-100-T20-JHP  6.00 20.00 100.0 200.0 4.50 24.0 33.00 6.80 45.50 HFPL 6004
  HFPAD 6L-200-T20-JHP  6.00 20.00 200.0 3000.0 4.50 24.0 33.00 7.10 45.50 HFPL 6004
  HFPAD 6R-100-T20-JHP  6.00 20.00 100.0 200.0 4.50 24.0 33.00 6.80 45.50 GRIP 6030Y
  HFPAD 6R-200-T20-JHP  6.00 20.00 200.0 3000.0 4.50 24.0 33.00 7.10 45.50 GRIP 6030Y
WF(assembly)=WF(shank) + WF(adapter)
HGN,GRIP,DGN inserts can be used only with right-hand adapters, HGPL inserts with left-hand adapters
For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD.
