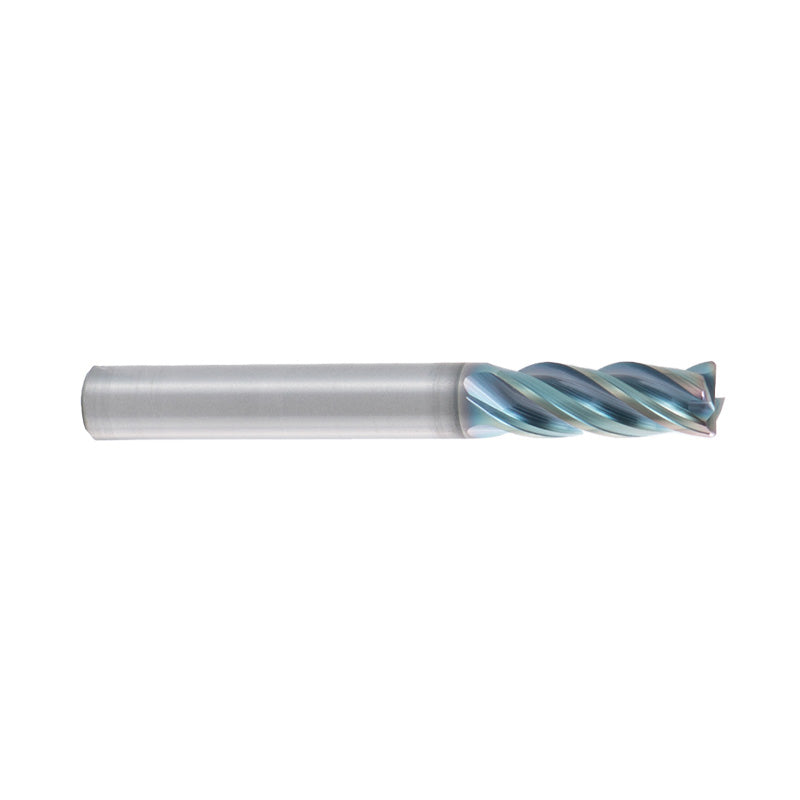

G-UP300-HP-R4 4 Flute Corner Radius Coated Endmills (High Precision)

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

G-UP300-HP-R4 4 Flute Corner Radius Coated Endmills (High Precision)

G-UP300-HP-R4 4 Flute Corner Radius Coated Endmills (High Precision)

G-UP300-HP-R4 4 Flute Corner Radius Coated Endmills (High Precision)

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: G‑UP300‑HP‑R4‑02005
Number of Flutes: 4
Shank form: Straight-Cylindrical
  • For General Machining of Steels and Cast Iron (≤52HRC) .
  • High-precision models for high-speed and high-accuracy mold machining.
  • High-toughness substrate with AlCr coating for extended tool life.

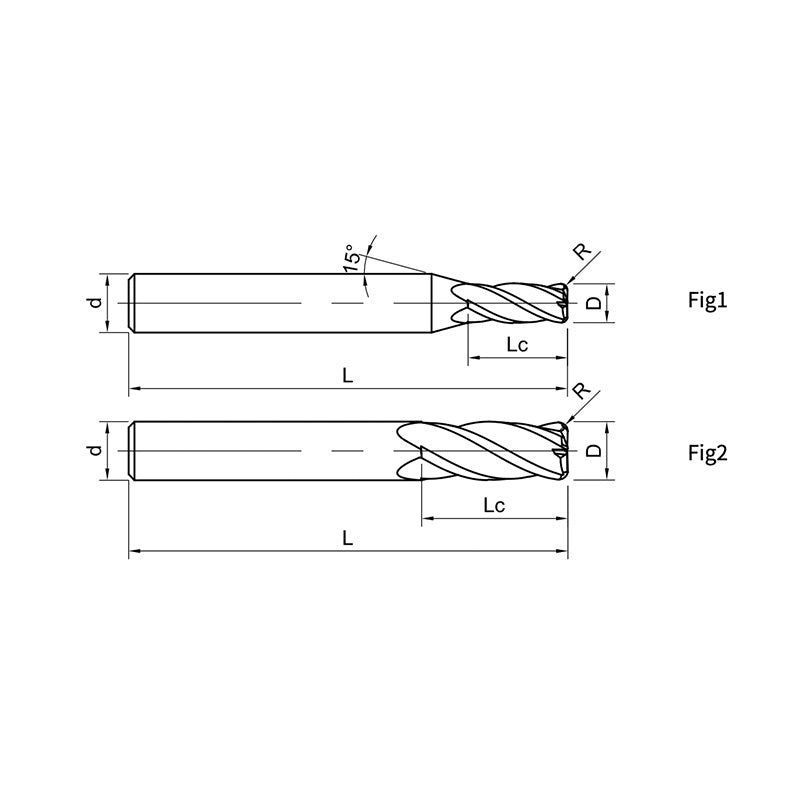

Order No. D R Lc L d
G‑UP300‑HP‑R4‑02005 D2 R0.5 6 50 d4
G‑UP300‑HP‑R4‑04002 D4 R0.2 11 50 d4
G‑UP300‑HP‑R4‑04005 D4 R0.5 11 50 d4
G‑UP300‑HP‑R4‑64005 D4 R0.5 11 50 d6
G‑UP300‑HP‑R4‑06002 D6 R0.2 16 75 d6
G‑UP300‑HP‑R4‑06002A D6 R0.2 16 50 d6
G‑UP300‑HP‑R4‑06002B D6 R0.2 16 60 d6
G‑UP300‑HP‑R4‑06005 D6 R0.5 16 60 d6
G‑UP300‑HP‑R4‑06005A D6 R0.5 16 75 d6
G‑UP300‑HP‑R4‑06005B D6 R0.5 16 50 d6
G‑UP300‑HP‑R4‑06005C D6 R0.5 16 100 d6
G‑UP300‑HP‑R4‑08002 D8 R0.2 20 75 d8
G‑UP300‑HP‑R4‑08002A D8 R0.2 20 100 d8
G‑UP300‑HP‑R4‑08005 D8 R0.5 20 75 d8
G‑UP300‑HP‑R4‑08005A D8 R0.5 20 60 d8
G‑UP300‑HP‑R4‑08005B D8 R0.5 20 100 d8
G‑UP300‑HP‑R4‑08010 D8 R1 20 75 d8
G‑UP300‑HP‑R4‑10002 D10 R0.2 25 100 d10
G‑UP300‑HP‑R4‑10005 D10 R0.5 25 100 d10
G‑UP300‑HP‑R4‑10005A D10 R0.5 25 75 d10
G‑UP300‑HP‑R4‑10010 D10 R1 25 100 d10
G‑UP300‑HP‑R4‑12005 D12 R0.5 30 100 d12
G‑UP300‑HP‑R4‑12005A D12 R0.5 30 120 d12
G‑UP300‑HP‑R4‑12010 D12 R1 30 100 d12
