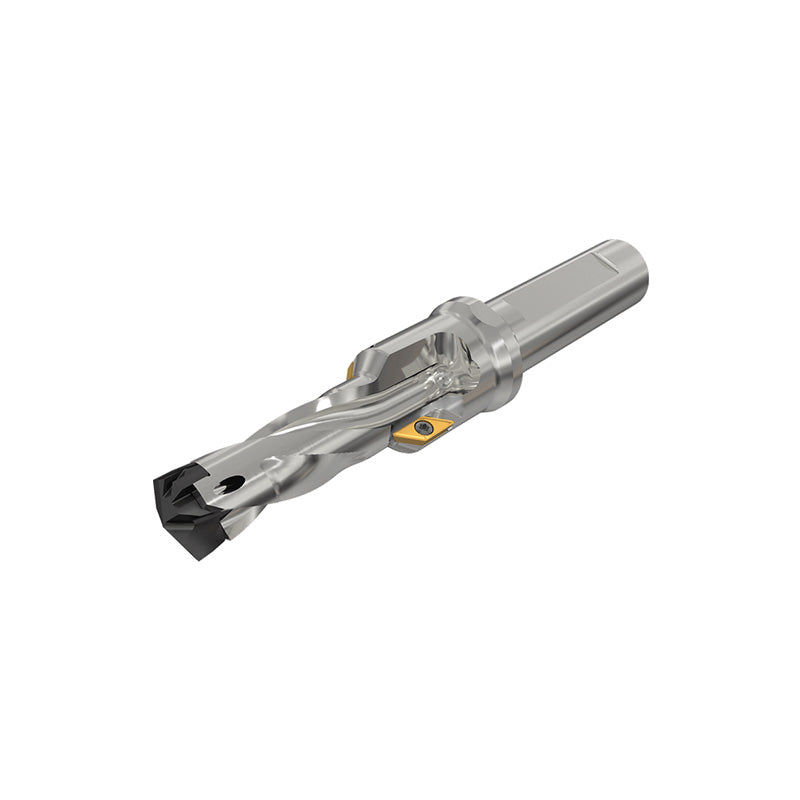

Exchangeable head drills with chamfering inserts mainly for pre-thread holes

Inquiry
Please hurry! Only 300 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

Exchangeable head drills with chamfering inserts mainly for pre-thread holes

Exchangeable head drills with chamfering inserts mainly for pre-thread holes

Exchangeable head drills with chamfering inserts mainly for pre-thread holes

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: DCNT 068-021-12A-M8

ISO 13399

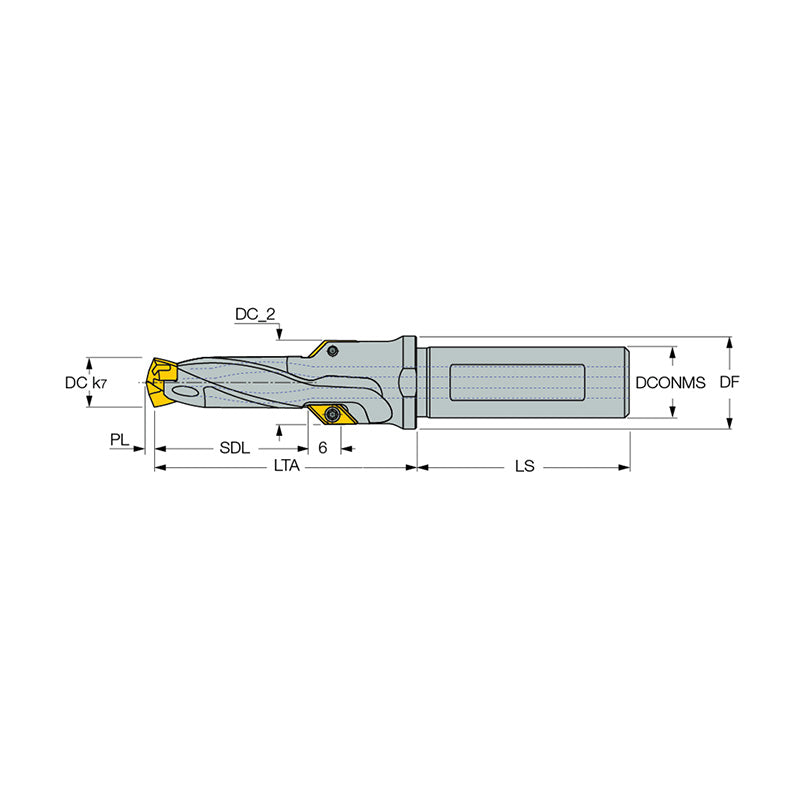

Designation Dnominal FTDZ DCN DCX DC_2 SDL PL LTA DCONMS DF LS SSC MIID MIID_2
DCNT 068-021-12A-M8 6.80 M8 6.50 6.90 13.50 21.00 1.240 43.80 12.00 16.00 45.0 6.5 ICP 068 AOMT 06
DCNT 085-026-12A-M10 8.50 M10 8.50 8.90 15.50 26.00 1.200 48.80 12.00 17.00 45.0 8.0 ICP 085 AOMT 06
DCNT 102-030-16A-M12 10.20 M12 10.00 10.40 17.00 30.00 1.500 52.50 16.00 20.00 48.0 10.0 ICP 102 AOMT 06
DCNT 120-035-16A-M14 12.00 M14 12.00 12.40 19.00 35.00 1.800 61.00 16.00 21.00 48.0 12.0 ICP 120 AOMT 06
DCNT 140-039-16A-M16 14.00 M16 14.00 14.40 21.00 39.00 2.100 66.90 16.00 23.00 48.0 14.0 ICP 140 AOMT 06
DCNT 175-042-20A-M20 17.50 M20 17.00 17.90 24.00 42.00 2.700 69.30 20.00 25.00 50.0 17.0 ICP 175 AOMT 06
DCNT 210-048-25A-M24 21.00 M24 21.00 21.90 28.00 48.00 3.200 80.00 25.00 32.00 56.0 21.0 ICP 210 AOMT 06


Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions
Do not mount smaller drilling heads other than the specified range of the drill body
