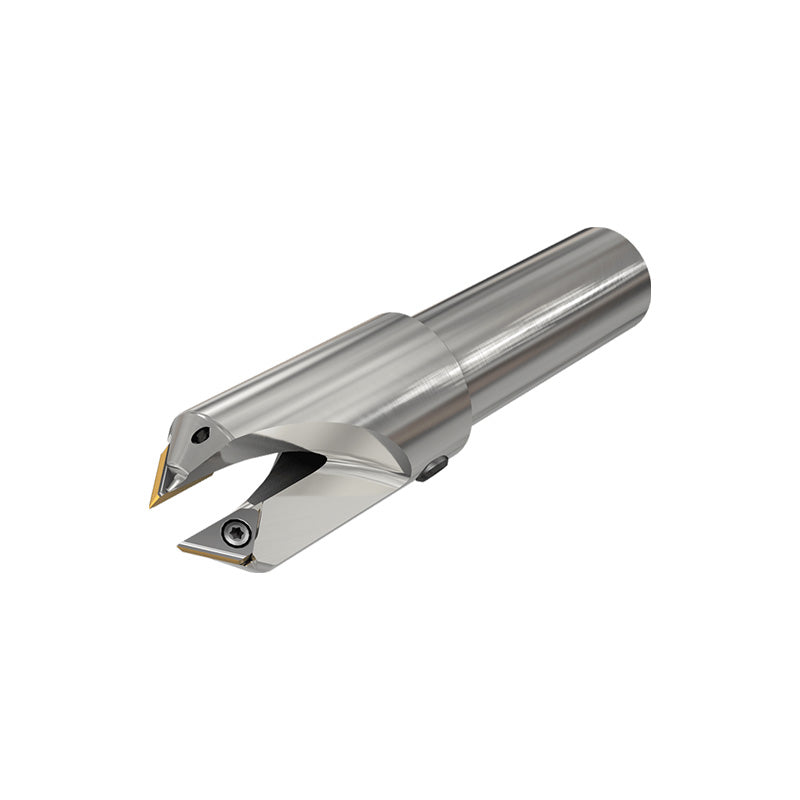

Drill Holders for Drilling and Chamfering in One Operation

Drill Holders for Drilling and Chamfering in One Operation

Drill Holders for Drilling and Chamfering in One Operation

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: CHAMRING 080-WN20-06

ISO 13399

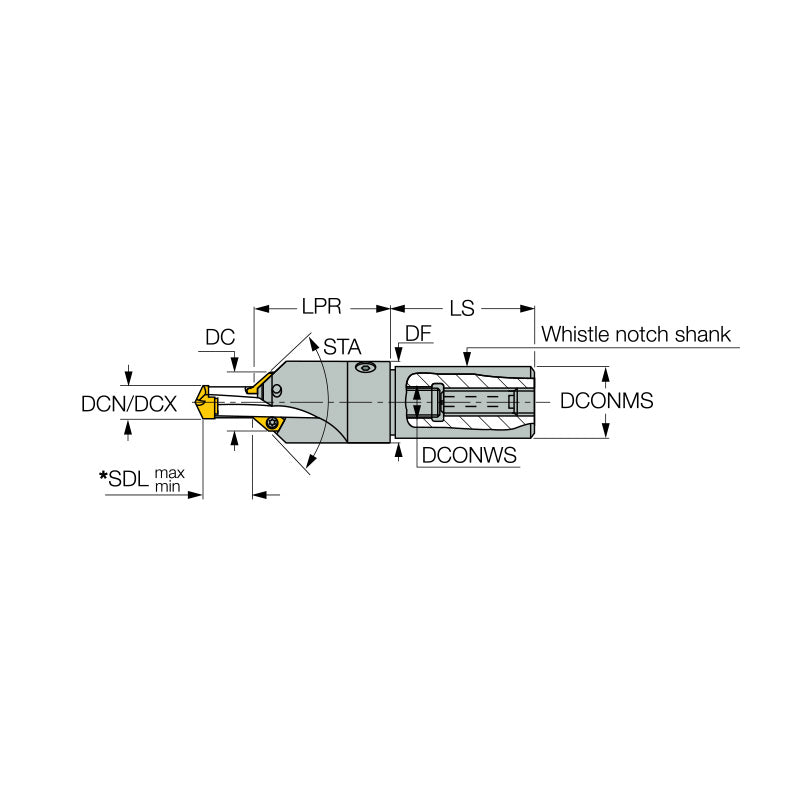

Designation DCN DCX DCONWS DF DC LPR LS DCONMS MIID
CHAMRING 080-WN20-06 7.50 8.40 8.00 25.00 18.80 47.4 50.0 20.00 XCGT 060300-30DT
CHAMRING 090-WN20-06 8.50 9.40 9.00 25.00 19.80 47.4 50.0 20.00 XCGT 060300-30DT
CHAMRING 100-WN32-09 9.50 10.40 10.00 38.00 24.90 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 110-WN32-09 10.50 11.40 11.00 38.00 25.90 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 120-WN32-09 11.50 12.40 12.00 38.00 26.90 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 130-WN32-09 12.50 13.40 13.00 38.00 27.90 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 140-WN32-09 13.50 14.40 14.00 38.00 28.40 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 150-WN32-09 14.50 15.90 15.00 38.00 29.40 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 160-WN32-09 16.00 16.90 16.00 38.00 30.40 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 170-WN32-09 17.00 17.90 17.00 38.00 31.40 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 180-WN32-09 18.00 18.90 18.00 38.00 32.40 67.3 60.0 32.00 XCGT 090300-30DT
CHAMRING 190-WN32-09 19.00 19.90 19.00 38.00 33.40 75.0 60.0 32.00 XCGT 090300-30DT
CHAMRING 200-WN32-09 20.00 20.90 20.00 38.00 34.40 75.0 60.0 32.00 XCGT 090300-30DT
CHAMRING 210-WN40-09 21.00 21.90 21.00 50.00 35.40 84.4 68.0 40.00 XCGT 090300-30DT
CHAMRING 220-WN40-09 22.00 22.90 22.00 50.00 36.40 84.4 68.0 40.00 XCGT 090300-30DT
CHAMRING 230-WN40-09 23.00 23.90 23.00 50.00 37.40 84.4 68.0 40.00 XCGT 090300-30DT
CHAMRING 240-WN40-09 24.00 24.90 24.00 50.00 38.40 84.4 68.0 40.00 XCGT 090300-30DT
CHAMRING 250-WN40-09 25.00 25.90 25.00 50.00 39.40 84.4 68.0 40.00 XCGT 090300-30DT


For each SDLmin SDLmax pair, click on "More Info" in order to see which drill they refer to
*SDLmin & SDLmax dimensions are based on the 45° chamfering insert
It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used
