Disc Gear Shaper Cutter, Outer Diameter 180, M1.5, M2, M3, M3.5, M4, M4.5, M5, M6, β15°A

Disc Gear Shaper Cutter, Outer Diameter 180, M1.5, M2, M3, M3.5, M4, M4.5, M5, M6, β15°A

$1,036.05

Disc Gear Shaper Cutter, Outer Diameter 180, M1.5, M2, M3, M3.5, M4, M4.5, M5, M6, β15°A

$1,036.05
Specification : M1.25*Z115

Product parameters

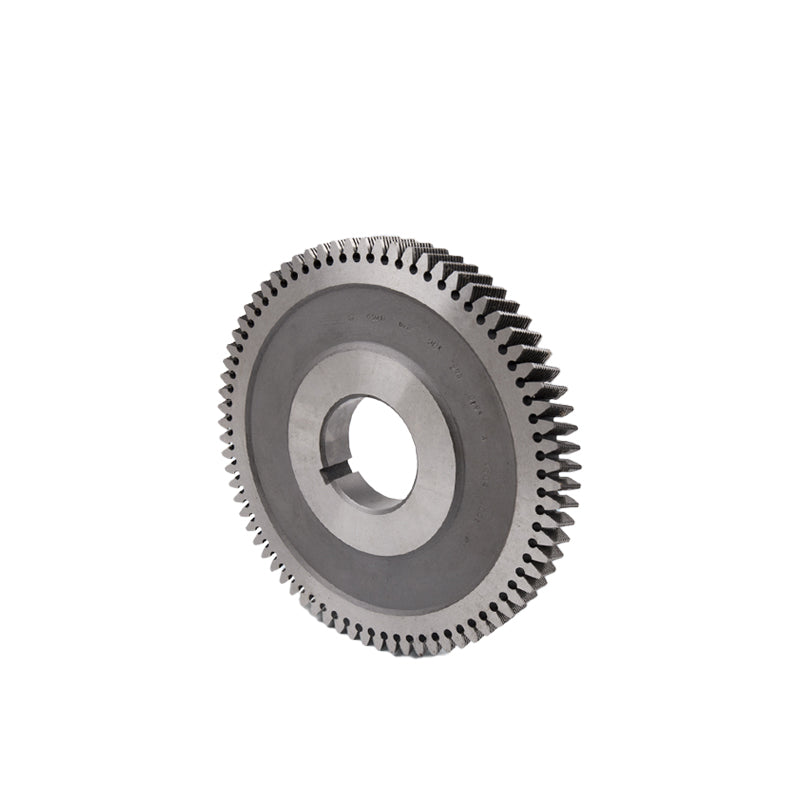

Product name: Disc-Type Gear Shaving Cutter
Product material: High-speed steel HSS
Level: A
Product specifications: See the table below
Unit: One piece

Disc straight gear shaping cutter        GB/T14333—1993

1. Application: Disc shaving cutters are suitable for shaving involute cylindrical gears with a module of 1.25mm to 8mm.
2. Features and precision: Shaving cutters are divided into left and right rotation, with helix angles of 5° and 15° on the cylinder, normal tooth angle of 20°, and three types of grooves: annular groove, end face groove, normal groove, and precision of A and B grades.
3. Tool marking and examples
When ordering, please specify: name, product number, nominal sub-circle diameter, normal module, helix angle on sub-circle, precision grade, rotation direction (right-hand rotation is not specified), groove shape, standard number.
Example: Disc shaving cutter     25700-127   Φ180    mₙ3    B5°   A    GB/T14333-1993

4. Specifications and main size parameters

Nominal circle diameter Φ180mm           α20°       β5°
mm

Product Number

Normal module

mₙ

Number of teeth Z

Number of teeth
de

Circle diameter df Aperture D Thickness B
Right Rotation Left Rotation

25700-123
               123F

25701-123
               123F

2 83 171.714 166.634 63.5 20
124
124F
124
124F
2.25 73 170.518 164.878
125
125F
125
125F
2.5 67 174.320 168.140
126
126F
126
126F
2.75 61 175.131 168.391
127
127F
127
127F
3 53 167.307 159.607
128
128F
128
128F
3.25 53 181.948 172.908
129
129F
129
129F
3.5 47 175.728 165.128
130
130F
130
130F
3.75 43 174.000 161.866
131
131F
131
131F
4 41 177.726 164.626
132
132F
132
132F
4.5 37 182.136 167.136
133
133F
133
133F
5 31 173.492 155.592
134
134F
134
134F
5.5 29 179.709 160.109
135
135F
135
135F
6 27 184.319 162.619



Nominal circle diameter Φ180mm           α20°       β15°
mm

Product Number

Normal module
mₙ

Number of teeth
Z
Number of teeth
de
Circle diameter
df
Aperture D Thickness B
Right Rotation Left Rotation
25700-136
               136F
25701-136
               136F
2 83 176.936 171.856 63.5 20
137
137F
137
137F
2.25 73 175.685 170.045
138
138F
138
138F
2.5 67 179.590 173.410
139
139F
139
139F
2.75 61 180.408 173.668
140
140F
140
140F
3 53 172.310 164.610
141
141F
141
141F
3.25 47 186.567 178.327
142
142F
142
142F
3.5 47 179.763 170.303
143
143F
143
143F
3.75 43 178.159 166.939
144
144F
144
144F
4 41 181.866 169.786
145
145F
145
145F
4.5 37 186.394 172.374
146
146F
146
146F
5 31 177.369 160.469
147
147F
147
147F147
147F
5.5 29 183.827 165.127
148
148F
148
148F
6 27 187.856 167.716



Nominal circle diameter Φ240mm           α20°       β5°
mm

Product Number

Normal module
mₙ

Number of teeth
Z
Number of teeth
de

Circle diameter
df

Aperture
D
Thickness
B
Right Rotation Left Rotation
25700-149
               149F
25701-149
               149F
2 115 235.819 230.879 63.5 25
150
150F
150
150F
2.25 103 238.135 232.635
151
151F
151
151F
2.5 91 234.549 228.369
152
152F
152
152F
2.75 83 235.862 229.122
153
153F
153
153F
3 73 227.536 219.836
154
154F
154
154F
3.25 67 226.822 218.582
155
155F
155
155F
3.5 61 223.115 214.315
156
156F
156
156F
3.75 61 238.964 229.624
157
157F
157
157F
4 53 222.710 212.810
158
158F
158
158F
4.5 51 241.377 230.377
159
159F
159
159F
5 43 229.921 215.821
160
160F
160
160F
5.5 41 241.901 226.361
161
161F
161
161F
6 37 240.708 222.848
162
162F
162
162F
6.5 35 247.989 228.369
163
163F
163
163F
7 31 240.189 217.829
164
164F
164
164F
8 27 243.445 216.825



Nominal circle diameter Φ240mm           α20°       β15°
mm

Product Number

Normal module
mₙ

Number of teeth
Z
Number of teeth
de

Circle diameter
df

Aperture
D
Thickness
B
Right Rotation Left Rotation
25700-165
               165F
 25701-165
               165F
2 115 243.054 238.114 63.5 25
166
166F
166
166F
2.25 103 245.425 239.925
167
167F
167
167F
2.5 91 241.705 235.525
168
168F
168
168F
2.75 83 243.042 236.302
169
169F
169
169F
3 73 234.425 226.725
170
170F
170
170F
3.25 67 233.671 225.431
171
171F
171
171F
3.5 61 229.831 221.031
172
172F
172
172F
3.75 61 246.159 236.819
172
173F
172
173F
4 53 229.379 219.479
174
174F
174
174F
4.5 51 248.596 237.596
175
175F
175
175F
5 43 234.684 222.584
176
176F
176
176F
5.5 41 246.655 233.455
177
177F
177
177F
6 37 246.471 229.831
178
178F
178
178F
6.5 35 253.885 235.525
179
179F
179
179F
7 31 245.815 224.655
180
180F
180
180F
8 27 249.060 223.620



Nominal circle diameter Φ180mm           α20°       β5°
mm

Product Number Normal module
mₙ
Number of teeth
Z
Number of teeth
de
Circle diameter
df
Aperture
D
Thickness
B
Right Rotation Left Rotation
25700-190 25701-190 1.25 115 149.25 144.299 63.5 20
191 191 1.5 178.66 173.159
192 192 1.75 100 181.72 175.669



Nominal circle diameter Φ180mm           α20°       β15°
mm

Product Number Normal module
mₙ
Number of teeth
Z
Number of teeth
de
Circle diameter
df
Aperture
D
Thickness
B
Right Rotation Left Rotation
25700-193 25701-193 1.25 115 153.77 148.821 63.5 20
194 194 1.5 184.09 178.585
195 195 1.75 100 187.22 181.173
