Specification: 7210A

Features & Benefits

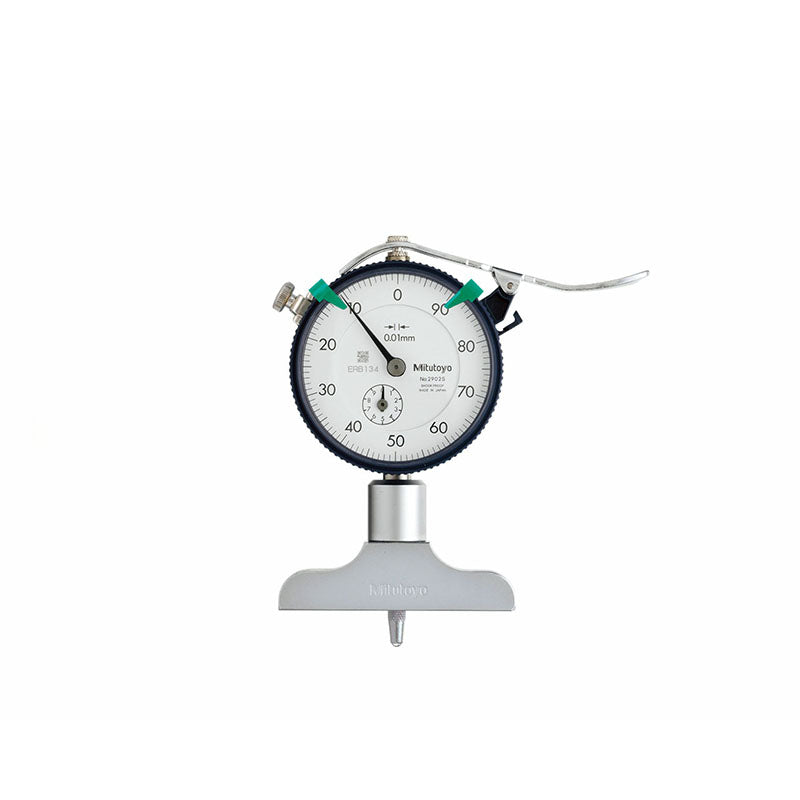

The Mitutoyo dial depth gage features a redesigned white dial face that is quick and easy to read measurements in fine units. The included extension rods allow for measurements up to 200mm/8”. The contact point for the depth gage is carbide tipped and its bottom surface is hardened, ground and lapped for better precision and wear resistance. Some models have a back-plunger type dial for upward-facing readings and a needle probe.

  • Available in Metric and Inch models
  • Choose between carbide-tipped ball point and needle point measuring rods
  • Lock screw holds the slider in position for accurate measurement
  • Supplied with a fitted plastic case

Technical Data

Technology: Mechanical

Product List

Order No. Units Measuring Force Range Graduation Accuracy Flatness of reference surface base Stroke Extension rods Base size Base size diameter Optional Accessories
7210A Metric 1.4N / 1.4N 0-10mm 0.01mm ±15µm 5µm 10mm - 40 x 16mm - -
7211A Metric 1.4N / 1.4N 0-200mm 0.01mm ±15µm 5µm 10mm 10, 20, 30, 100 63.5 x 16mm - -
7212A Metric 1.4N / 1.4N 0-200mm 0.01mm ±15µm 5µm 10mm 10, 20, 30, 100 101.6 x 16mm - -
7213A Metric 2.5N / 2.5N 0-210mm 0.01mm ±30µm 5µm 30mm 30, 60, 90 63.5 x 16mm - -
7214A Metric 2.5N / 2.5N 0-210mm 0.01mm ±30µm 5µm 30mm 30, 60, 90 101.6 x 16mm - -
7217A Inch 2.5N / 2.5N 0-8" 0.001" ±0.002" 5µm / 0.0002" 1" 1, 2, 4 2.5 x 0.63" - -
7218A Inch 2.5N / 2.5N 0-8" 0.001" ±0.002" 5µm / 0.0002" 1" .5, 1, 2 4 x 0.63" - -
7220A Metric 1.4N / 1.4N 0-200mm 0.01mm ±15µm 5µm 10mm 10, 20, 30, 100 100 x 18mm - -
7221A Metric 1.4N / 1.4N 0-200mm 0.01mm ±15µm 5µm 10mm 10, 20, 30, 100 150 x 18mm - -
7222A Metric 1.4N / 1.4N 0-10mm 0.01mm ±15µm 5µm 10mm - - 16mm -
7223A Metric 1.4N / 1.4N 0-10mm 0.01mm ±15µm 5µm 10mm - - 25mm -
7224A Metric 1.4N / 1.4N 0-10mm 0.01mm ±15µm 5µm 10mm - - 40mm -
7231A Metric 1.4N / 1.4N 0-200mm 0.01mm ±15µm 5µm 5mm 10, 20, 30, 100 63.5 x 16mm - -
7237A Inch 1.4N / 1.4N 0-8" 0.001" ±0.002" 5µm / 0.0002" 0.2" 1, 2, 4, 0.5 2.5 x 0.63" - -
7238A Inch 1.4N / 1.4N 0-8" 0.001" ±0.002" 5µm / 0.0002" 0.2" 1, 2, 4, 0.5 4 x 0.63" - -
