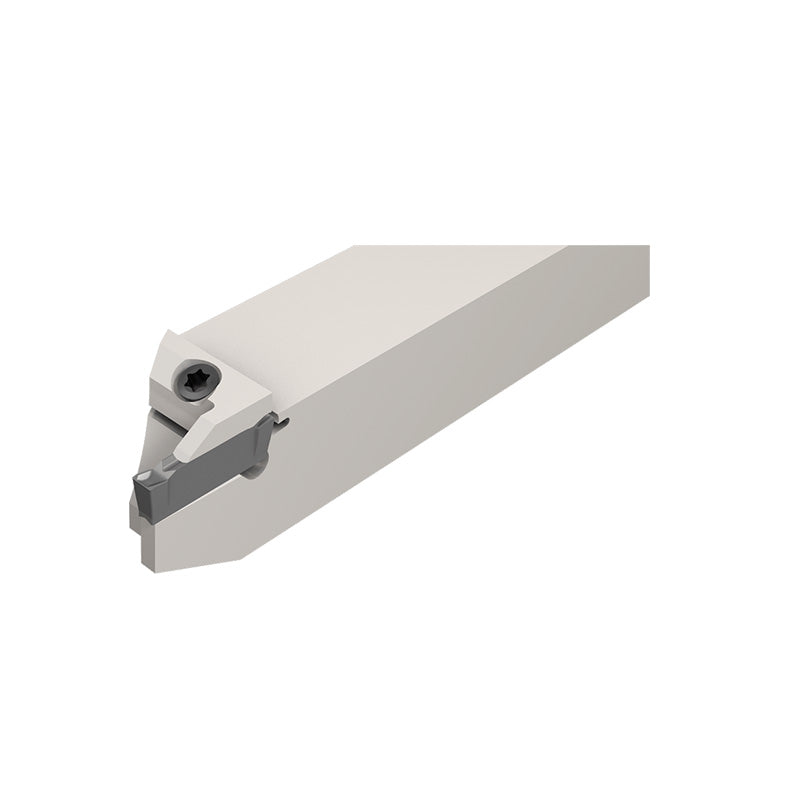

DGTR/L-B-D-SH : Parting and Grooving Short Head Tools for CNC and Swiss Automatics

DGTR/L-B-D-SH : Parting and Grooving Short Head Tools for CNC and Swiss Automatics

DGTR/L-B-D-SH : Parting and Grooving Short Head Tools for CNC and Swiss Automatics

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry

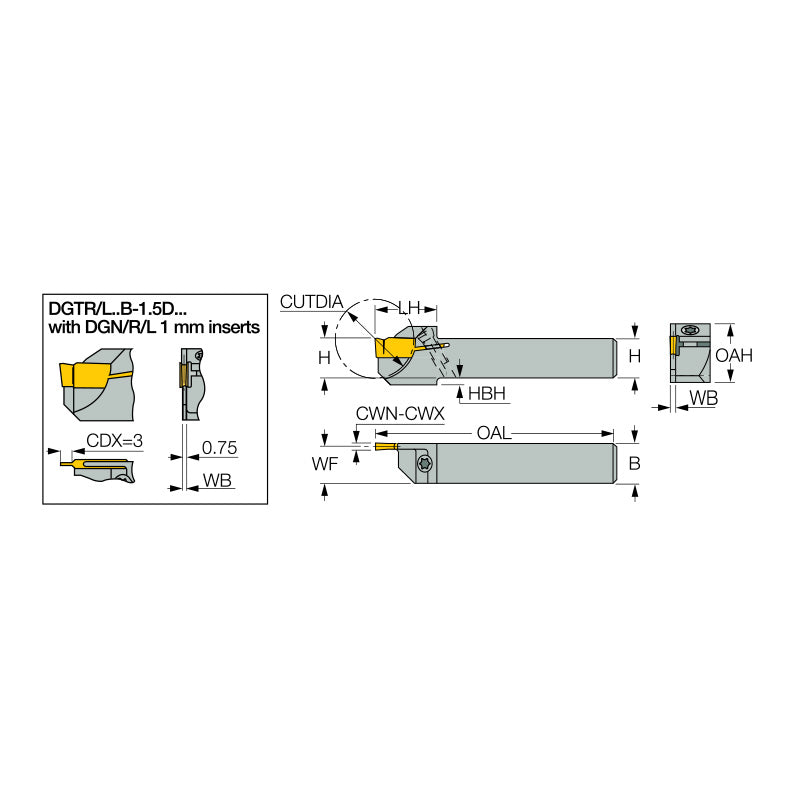

Specification: DGTL 12B-1.4D24SH

ISO 13399

Designation
CWN
CWX
H
B
WB
WF
LH
CUTDIA
OAH
HBH
OAL
HAND
DGTL 8B-1.4SH
1.40
1.40
8.0
8.0
1.00
7.50
18.0
10.0
15.4
2.0
125.00
L
DGTR 8B-1.4SH 1.40 1.40 8.0 8.0 1.00 7.50 18.0 10.0 15.4 2.0 125.00 R
DGTL 10B-1.4D20SH 1.40 1.40 10.0 10.0 1.00 9.50 18.0 20.0 13.7 2.0 120.00 L
DGTR 10B-1.4D20SH 1.40 1.40 10.0 10.0 1.00 9.50 18.0 20.0 13.7 2.0 120.00 R
DGTL 10B-1.5D20SH 1.00 1.50 10.0 10.0 1.00 9.50 19.0 20.0 15.7 2.0 120.00 L
DGTR 10B-1.5D20SH 1.00 1.50 10.0 10.0 1.00 9.50 19.0 20.0 15.7 2.0 120.00 R
DGTL 10B-2D20SH 1.90 2.50 10.0 10.0 1.60 9.20 19.0 20.0 15.7 2.0 120.00 L
DGTR 10B-2D20SH 1.90 2.50 10.0 10.0 1.60 9.20 19.0 20.0 15.7 2.0 120.00 R
DGTL 12B-1.4D24SH 1.40 1.40 12.0 12.0 1.00 11.50 19.0 24.0 15.7 - 120.00 L
DGTR 12B-1.4D24SH 1.40 1.40 12.0 12.0 1.00 11.50 19.0 24.0 15.7 - 120.00 R
DGTL 12B-1.5D24SH 1.00 1.50 12.0 12.0 1.00 11.40 19.0 24.0 15.7 - 120.00 L
DGTR 12B-1.5D24SH 1.00 1.50 12.0 12.0 1.00 11.40 19.0 24.0 15.7 - 120.00 R
DGTL 12B-2D24SH 1.90 2.50 12.0 12.0 1.60 11.20 19.0 24.0 15.7 - 120.00 L
DGTR 12B-2D24SH 1.90 2.50 12.0 12.0 1.60 11.20 19.0 24.0 15.7 - 120.00 R
DGTR 12B-2D24SH-L85 1.90 2.50 12.0 12.0 1.60 11.20 19.0 24.0 15.7 - 85.00 R
DGTL 12B-3D24SH 3.00 3.18 12.0 12.0 2.40 10.80 19.0 24.0 15.7 - 120.00 L
DGTR 12B-3D24SH 3.00 3.18 12.0 12.0 2.40 10.80 19.0 24.0 15.7 - 120.00 R
DGTL 16B-1.5D25SH 1.00 1.50 16.0 16.0 1.20 15.40 19.5 25.4 19.7 - 120.00 L
DGTR 16B-1.5D25SH 1.00 1.50 16.0 16.0 1.20 15.40 19.5 25.4 19.7 - 120.00 R
DGTL 16B-2D25SH 1.90 2.50 16.0 16.0 1.60 15.20 19.5 25.4 19.7 - 120.00 L
DGTR 16B-2D25SH 1.90 2.50 16.0 16.0 1.60 15.20 19.5 25.4 19.7 - 120.00 R
DGTL 16B-3D25SH 3.00 3.18 16.0 16.0 2.40 14.80 19.5 25.4 19.7 - 120.00 L
DGTR 16B-3D25SH 3.00 3.18 16.0 16.0 2.40 14.80 19.5 25.4 19.7 - 120.00 R
DGTL 20B-1.5D25SH 1.00 1.50 20.0 20.0 1.20 19.40 19.5 25.4 23.7 - 120.00 L
DGTR 20B-1.5D25SH 1.00 1.50 20.0 20.0 1.20 19.40 19.5 25.4 23.7 - 120.00 R
DGTL 20B-3D25SH 3.00 3.18 20.0 20.0 2.40 18.80 19.5 25.4 23.7 - 120.00 L
DGTR 20B-3D25SH 3.00 3.18 20.0 20.0 2.40 18.80 19.5 25.4 23.7 - 120.00 R
DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on "More Info"
