Specification: DGHHL 26B-1.5TR-D20

ISO 13399

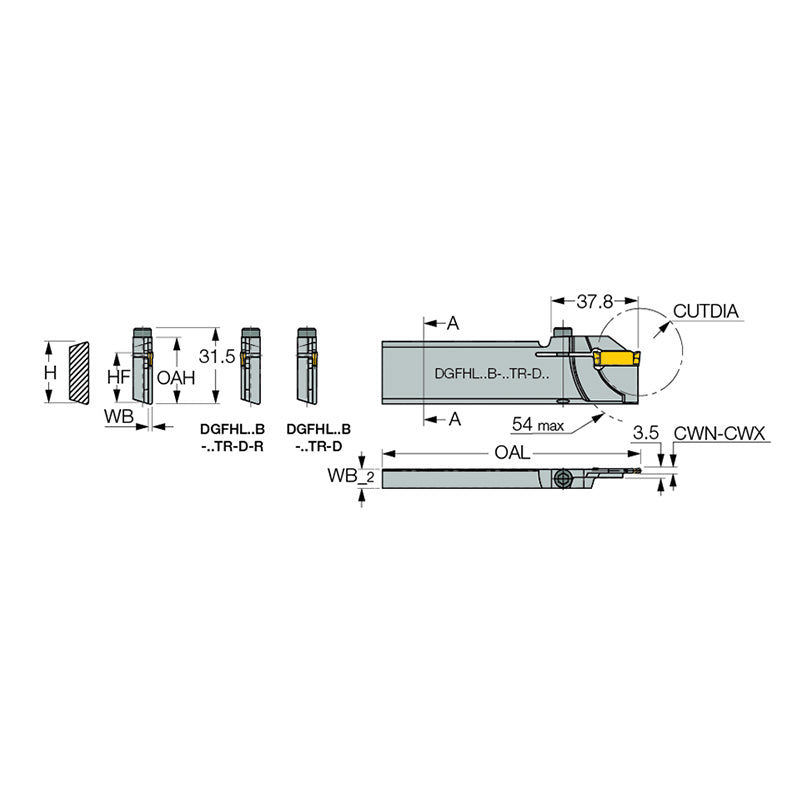

Designation H CWN CWX WB WB_2 OAL OAH HF CUTDIA HAND
DGFHL 26B-1.5TR-D20 26.0 1.00 1.50 1.20 7.9 110.00 27.9 21.4 20.0 R
DGFHL 26B-2TR-D36 26.0 1.90 2.50 1.60 7.9 110.00 27.9 21.4 36.0 R
DGFHL 26B-2TR-D36R 26.0 1.90 2.50 1.60 7.9 110.00 27.9 21.4 36.0 L
DGFHL 26B-3TR-D36 26.0 3.00 3.18 2.40 7.9 110.00 27.9 21.4 36.0 R
DGFHL 26B-3TR-D36R 26.0 3.00 3.18 2.40 7.9 110.00 27.9 21.4 36.0 L
Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user
DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified.
