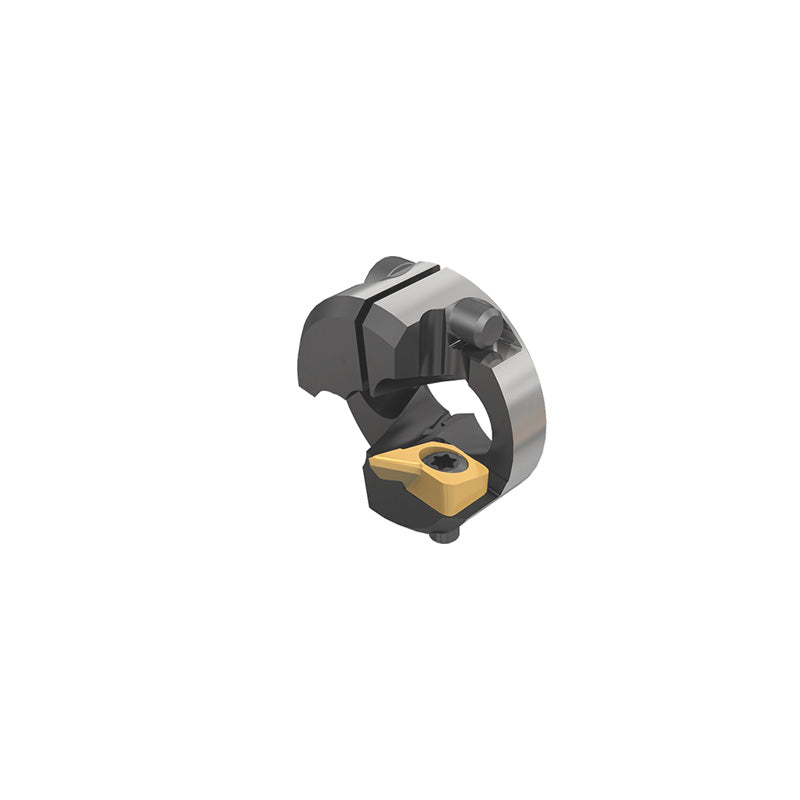

Chamfering ring mounted on CHAM-DRILL drills for drilling and chamfering in one operation

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

Chamfering ring mounted on CHAM-DRILL drills for drilling and chamfering in one operation

Chamfering ring mounted on CHAM-DRILL drills for drilling and chamfering in one operation

Chamfering ring mounted on CHAM-DRILL drills for drilling and chamfering in one operation

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: RING DCM 100

ISO 13399

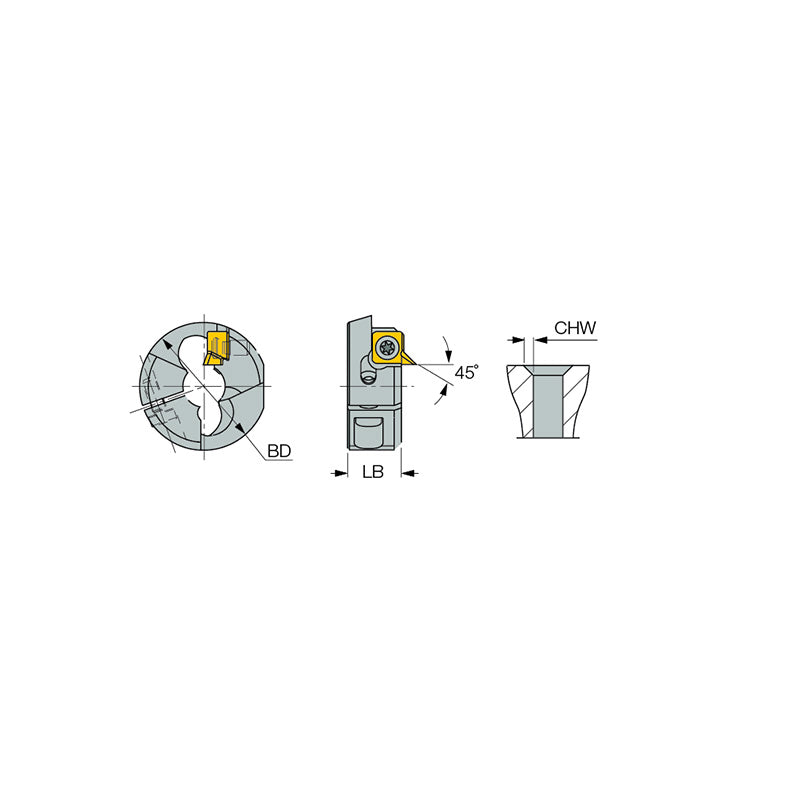

Designation SS DCN DCX BD LB Ch CHW MIID
RING DCM 100 DCM 100 10.00 10.40 33.00 14.3 1.5 1.50 XOGX
RING DCM 105 DCM 105 10.50 10.90 33.00 14.3 1.5 1.50 XOGX
RING DCM 110 DCM 110 11.00 11.40 35.00 14.5 1.5 1.50 XOGX
RING DCM 115 DCM 115 11.50 11.90 35.00 14.5 1.5 1.50 XOGX
RING DCM 120 DCM 120 12.00 12.40 37.50 14.6 1.5 1.50 XOGX
RING DCM 125 DCM 125 12.50 12.90 37.50 14.6 1.5 1.50 XOGX
RING DCM 130 DCM 130 13.00 13.40 39.00 14.6 1.5 1.50 XOGX
RING DCM 135 DCM 135 13.50 13.90 39.00 14.6 1.5 1.50 XOGX
RING DCM 140 DCM 140 14.00 14.40 41.00 15.3 1.5 1.50 XOGX
RING DCM 145 DCM 145 14.50 14.90 41.00 15.3 1.5 1.50 XOGX
RING DCM 150 DCM 150 15.00 15.90 43.00 16.5 1.5 1.50 XOGX
RING DCM 160 DCM 160 16.00 16.90 45.00 17.0 2.0 2.00 XOGX
RING DCM 170 DCM 170 17.00 17.90 47.00 17.5 2.0 2.00 XOGX
RING DCM 180 DCM 180 18.00 18.90 48.00 18.0 2.0 2.00 XOGX
RING DCM 190 DCM 190 19.00 19.90 50.00 18.0 2.0 2.00 XOGX
RING DCM 200 DCM 200 20.00 20.90 52.00 18.0 2.0 2.00 XOGX


RING DCM can be mounted only on DCM 3XD and DCM 5XD drills
