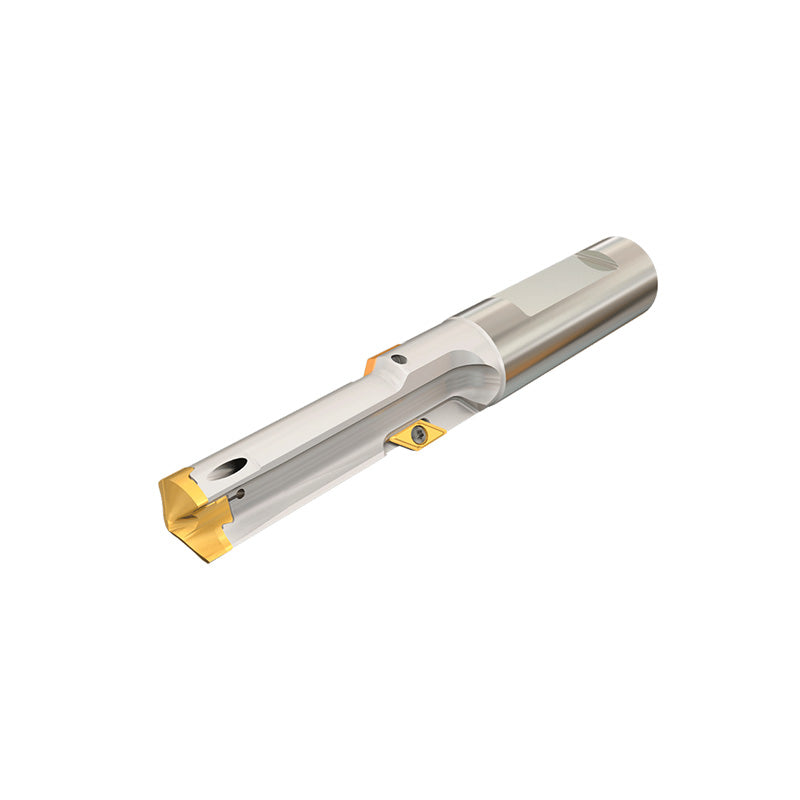

CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes

CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes

CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: DCT 068-021-14B-M8

ISO 13399

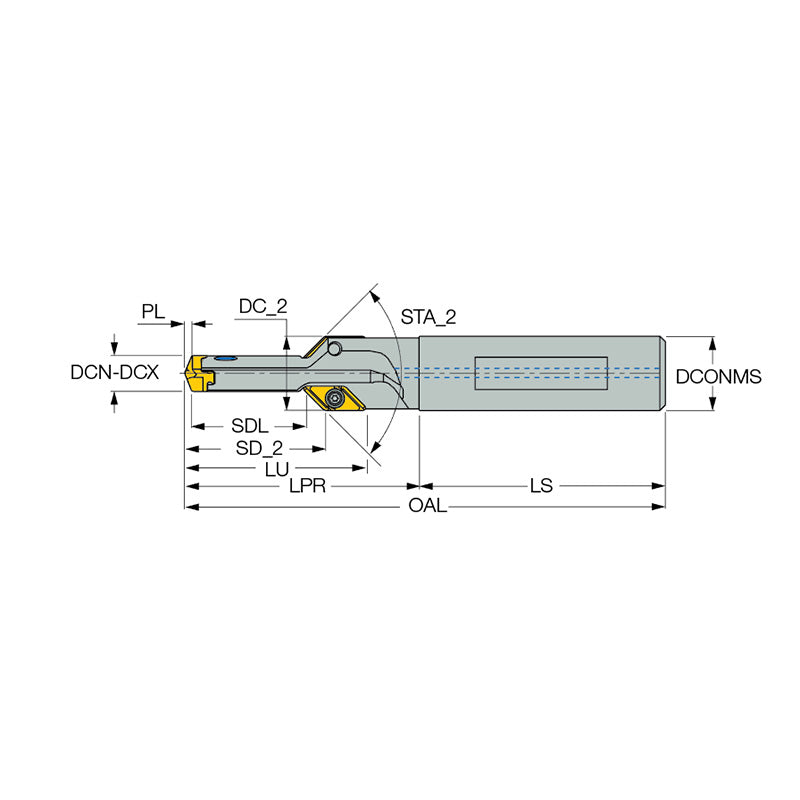

Designation DCN Dnominal DCX DC_2 DCONMS SDL LU LPR OAL LS STA_2 PL SSC FTDZ SD_2 MIID MIID_2
DCT 068-021-14B-M8 6.80 6.80 7.40 13.90 14.00 20.9 31.70 43.10 88.14 45.0 90.0 1.240 6.8 M8 25.74 IDI 068 AOMT 06
DCT 085-026-14B-M10 8.30 8.50 8.90 14.00 14.00 26.3 36.60 48.00 93.05 45.0 90.0 1.550 8.0 M10 30.55 IDI 085 AOMT 06
DCT 102-030-14B-M12 10.00 10.20 10.90 14.00 14.00 30.0 39.80 53.90 98.86 45.0 90.0 1.860 10.0 M12 33.76 IDI 102 AOMT 06
DCT 120-035-16B-M14 12.00 12.00 12.90 16.00 16.00 34.9 45.10 60.20 108.18 48.0 90.0 2.180 12.0 M14 39.08 IDI 120 AOMT 06
DCT 140-039-18B-M16 14.00 14.00 14.90 18.00 18.00 39.0 49.60 62.50 110.55 48.0 90.0 2.550 14.0 M16 43.55 IDI 140 AOMT 06
DCT 175-042-20B-M20 17.30 17.50 17.90 21.00 20.00 42.0 53.00 66.20 116.18 50.0 90.0 3.180 17.0 M20 46.98 IDI 175 AOMT 06
DCT 210-048-25B-M24 21.00 21.00 21.90 25.50 25.00 48.2 60.30 72.80 128.82 56.0 90.0 3.820 21.0 M24 54.32 IDI 210 AOMT 06


Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions
Do not mount smaller drilling heads other than the specified range of the drill body
