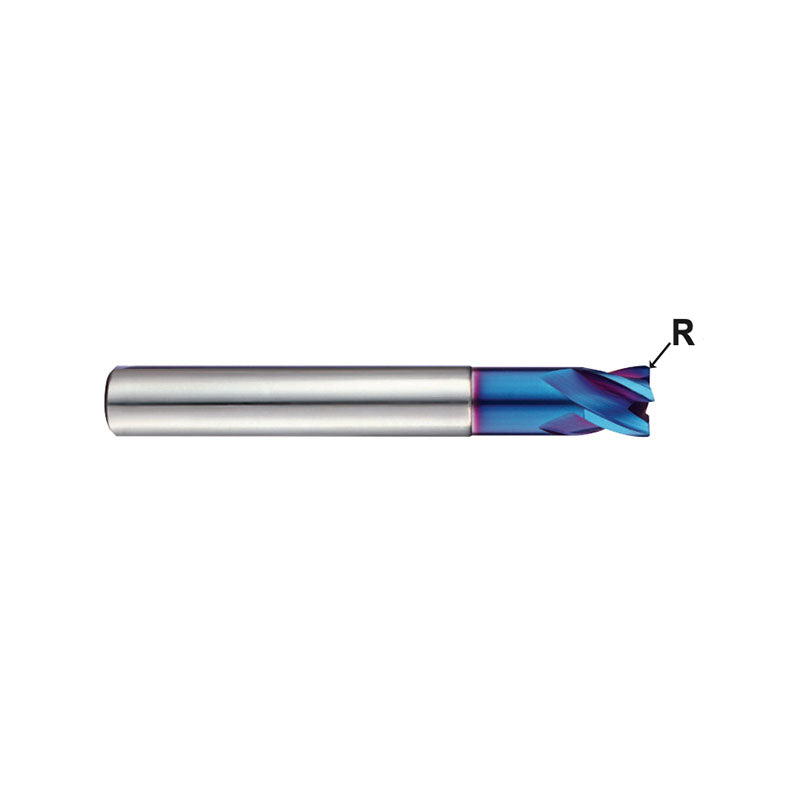

Carbide X5070 End Mills Plain Shank G850 Series 4 Flute Stub Length Corner Radius with Extended Neck

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

Carbide X5070 End Mills Plain Shank G850 Series   4 Flute Stub Length Corner Radius with Extended Neck

Carbide X5070 End Mills Plain Shank G850 Series 4 Flute Stub Length Corner Radius with Extended Neck

Carbide X5070 End Mills Plain Shank G850 Series 4 Flute Stub Length Corner Radius with Extended Neck

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: G85004
Shank form: Straight-Cylindrical
Number of Flutes: 4

Product Information

Designed to machine high hardened materials.

Suitable for dry cutting, high speed cutting due to newly developed raw-material and new coating.

Excellent workpiece finish.

Deep slotting is possible by reduced neck.

Corner radius for preventing the chipping in high speed machining.

Higher wear-resistance

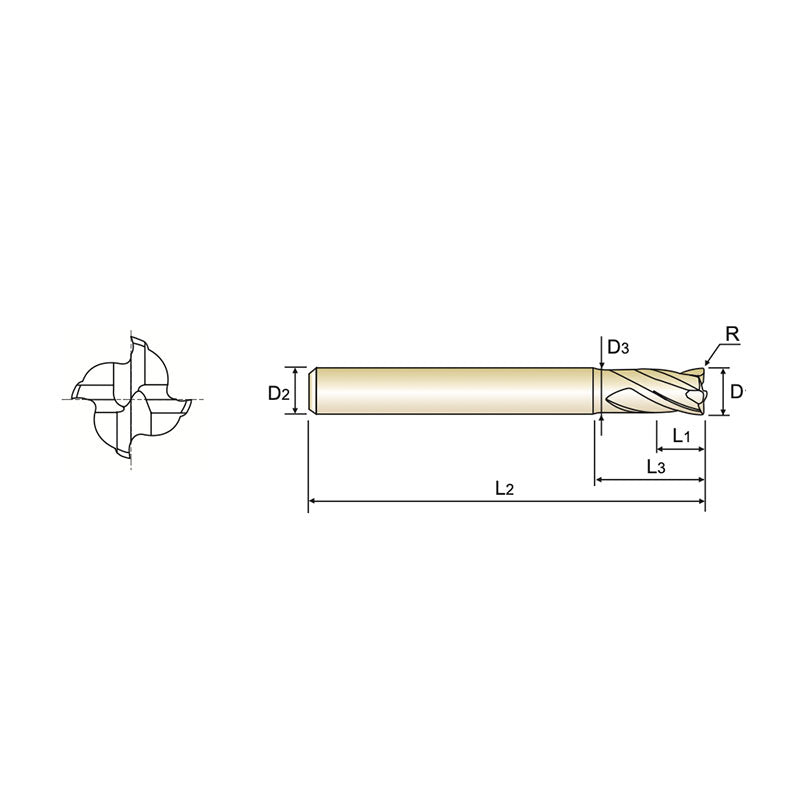

EDP No. Mill Diameter Corner Radius Shank
Diameter
Length Of Cut Length
Below Shank
Overall
Length
Neck Diameter
G85004 1/16 R.004 1/8 3/32 - 1-1/2 -
G85008 1/8 R.004 1/4 5/32 1/4 2 0.119
G85012 3/16 R.004 1/4 1/4 3/8 2 0.181
G85016 1/4 R.008 1/4 5/16 9/16 2 0.238
G85020 5/16 R.008 5/16 3/8 3/4 2-1/2 0.301
G85024 3/8 R.008 3/8 1/2 1 3 0.363
G85032 1/2 R.012 1/2 5/8 1-3/16 3 0.488
G85040 5/8 R.012 5/8 3/4 1-1/2 3-1/2 0.613
G85048 3/4 R.012 3/4 1 1-3/4 4 0.738
