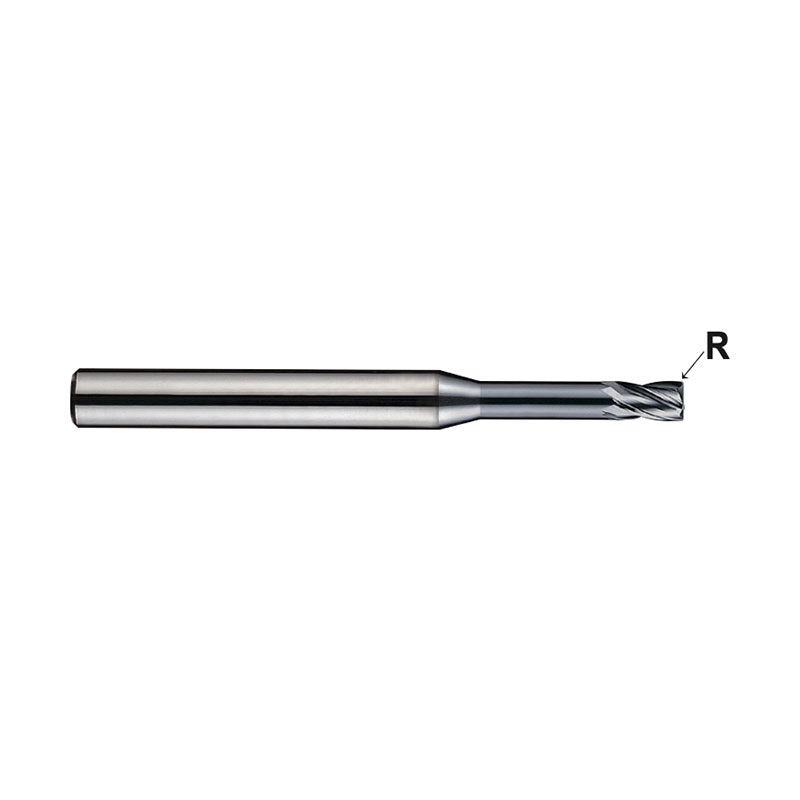

Carbide 4G Mill End Mills Plain Shank SEME64Series 4 Flute Long Neck Corner Radius SEME640100304~SEME640120208

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

Carbide 4G Mill End Mills Plain Shank SEME64Series  4 Flute Long Neck Corner Radius SEME640100304~SEME640120208

Carbide 4G Mill End Mills Plain Shank SEME64Series 4 Flute Long Neck Corner Radius SEME640100304~SEME640120208

Carbide 4G Mill End Mills Plain Shank SEME64Series 4 Flute Long Neck Corner Radius SEME640100304~SEME640120208

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: SEME640100304
Shank form: Straight-Cylindrical
Number of Flutes: 4

Product Information

Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.

Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.

Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool can be decreased too.

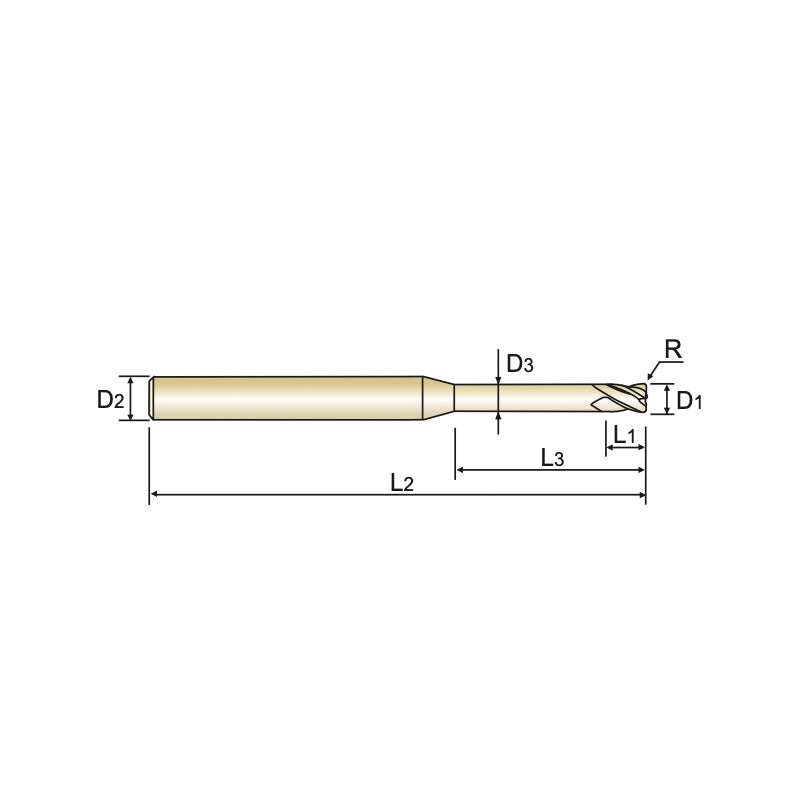

EDP No. Radius of ball Nose Mill Diameter Shank Diameter Length of Cut Length Below Shank Overall Length Remark
R D1 D2 L1 L3 L2
SEME640100304 R0.3 1.0 4 1.5 4 50 -
SEME640100306 R0.3 1.0 4 1.5 6 50 -
SEME640100308 R0.3 1.0 4 1.5 8 50 -
SEME640100310 R0.3 1.0 4 1.5 10 50 -
SEME640100312 R0.3 1.0 4 1.5 12 50 -
SEME640100314 R0.3 1.0 4 1.5 14 50 -
SEME640100316 R0.3 1.0 4 1.5 16 50 -
SEME640100320 R0.3 1.0 4 1.5 20 50 -
SEME6401200503 R0.05 1.2 4 1.8 3 50 -
SEME6401200504 R0.05 1.2 4 1.8 4 50 -
SEME6401200506 R0.05 1.2 4 1.8 6 50 -
SEME6401200508 R0.05 1.2 4 1.8 8 50 -
SEME6401200510 R0.05 1.2 4 1.8 10 50 -
SEME6401200512 R0.05 1.2 4 1.8 12 50 -
SEME6401200516 R0.05 1.2 4 1.8 16 50 -
SEME6401200520 R0.05 1.2 4 1.8 20 50 -
SEME640120103 R0.1 1.2 4 1.8 3 50 -
SEME640120104 R0.1 1.2 4 1.8 4 50 -
SEME640120106 R0.1 1.2 4 1.8 6 50 -
SEME640120108 R0.1 1.2 4 1.8 8 50 -
SEME640120110 R0.1 1.2 4 1.8 10 50 -
SEME640120112 R0.1 1.2 4 1.8 12 50 -
SEME640120116 R0.1 1.2 4 1.8 16 50 -
SEME640120120 R0.1 1.2 4 1.8 20 50 -
SEME640120203 R0.2 1.2 4 1.8 3 50 -
SEME640120204 R0.2 1.2 4 1.8 4 50 -
SEME640120206 R0.2 1.2 4 1.8 6 50 -
SEME640120208 R0.2 1.2 4 1.8 8 50 -
