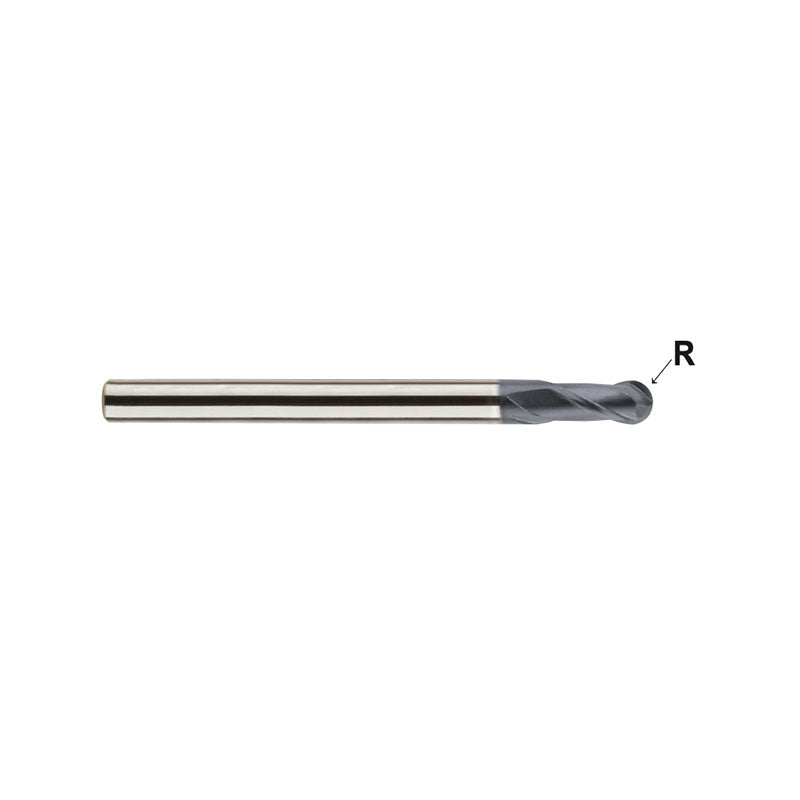

Carbide 4G Mill End Mills Plain Shank SEMD98 Series 2 Flute Ball Nose (Short, Regular, Long Shank) SEMD98009～SEMD980253S
Carbide 4G Mill End Mills Plain Shank SEMD98 Series 2 Flute Ball Nose (Short, Regular, Long Shank) SEMD98009～SEMD980253S
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product Information
▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Due to unique ball nose geometry and cutting edges, cutting force decreased, and wear resistance increased.
▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.

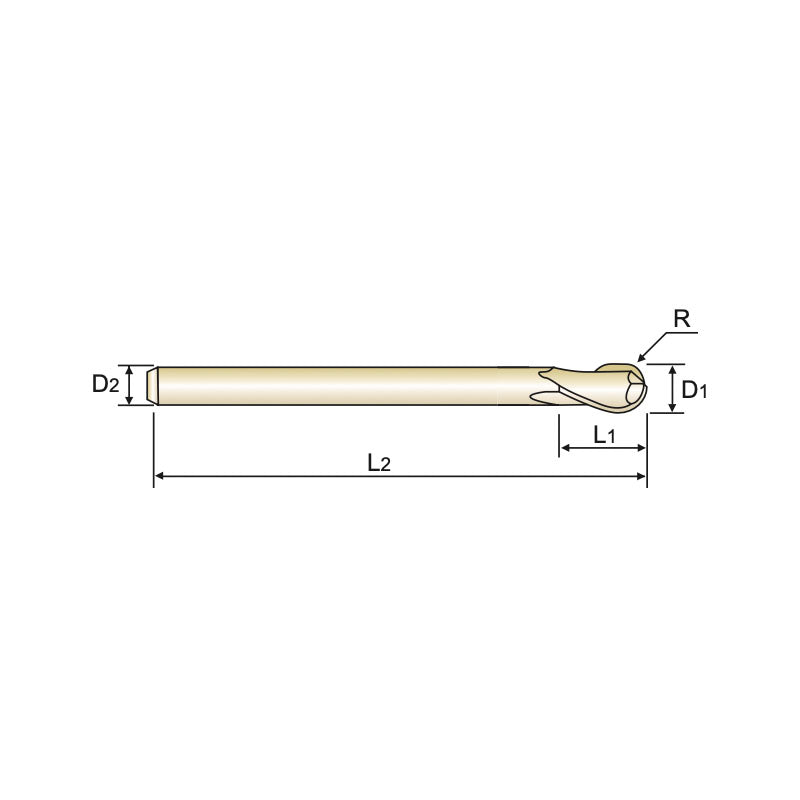

| EDP No. | Radius of Ball Nose | Mill Diameter | Shank Diameter | Length of Cut | Overall Length | Remark |
|---|---|---|---|---|---|---|
| R | D1 | D2 | L1 | L2 | ||
| SEMD98001S | R0.05 | 0.1 | 4 | 0.1 | 40 | Short |
| SEMD98001 | R0.05 | 0.1 | 4 | 0.2 | 40 | Regular |
| SEMD980013S | R0.05 | 0.1 | 3 | 0.2 | 40 | 3mm Shank |
| SEMD980015S | R0.075 | 0.15 | 4 | 0.15 | 40 | Short |
| SEMD980015 | R0.075 | 0.15 | 4 | 0.3 | 40 | Regular |
| SEMD9800153S | R0.075 | 0.15 | 3 | 0.3 | 40 | 3mm Shank |
| SEMD98002S | R0.1 | 0.2 | 4 | 0.2 | 40 | Short |
| SEMD98002 | R0.1 | 0.2 | 4 | 0.4 | 40 | Regular |
| SEMD980023S | R0.1 | 0.2 | 3 | 0.4 | 40 | 3mm Shank |
| SEMD98003S | R0.15 | 0.3 | 4 | 0.3 | 40 | Short |
| SEMD98003 | R0.15 | 0.3 | 4 | 0.6 | 40 | Regular |
| SEMD980033S | R0.15 | 0.3 | 3 | 0.6 | 40 | 3mm Shank |
| SEMD98004S | R0.2 | 0.4 | 4 | 0.4 | 40 | Short |
| SEMD98004 | R0.2 | 0.4 | 4 | 0.8 | 40 | Regular |
| SEMD980043S | R0.2 | 0.4 | 3 | 0.8 | 40 | 3mm Shank |
| SEMD98005S | R0.25 | 0.5 | 4 | 0.5 | 40 | Short |
| SEMD98005 | R0.25 | 0.5 | 4 | 1 | 40 | Regular |
| SEMD980053S | R0.25 | 0.5 | 3 | 1 | 40 | 3mm Shank |
| SEMD98006S | R0.3 | 0.6 | 4 | 0.6 | 40 | Short |
| SEMD98006 | R0.3 | 0.6 | 4 | 1.2 | 40 | Regular |
| SEMD980063S | R0.3 | 0.6 | 3 | 1.2 | 40 | 3mm Shank |
| SEMD98007S | R0.35 | 0.7 | 4 | 0.7 | 40 | Short |
| SEMD98007 | R0.35 | 0.7 | 4 | 1.4 | 40 | Regular |
| SEMD980073S | R0.35 | 0.7 | 3 | 1.4 | 40 | 3mm Shank |
| SEMD98008S | R0.4 | 0.8 | 4 | 0.8 | 40 | Short |
| SEMD98008 | R0.4 | 0.8 | 4 | 1.6 | 40 | Regular |
| SEMD980083S | R0.4 | 0.8 | 3 | 1.6 | 40 | 3mm Shank |
| SEMD98009S | R0.45 | 0.9 | 4 | 0.9 | 40 | Short |
