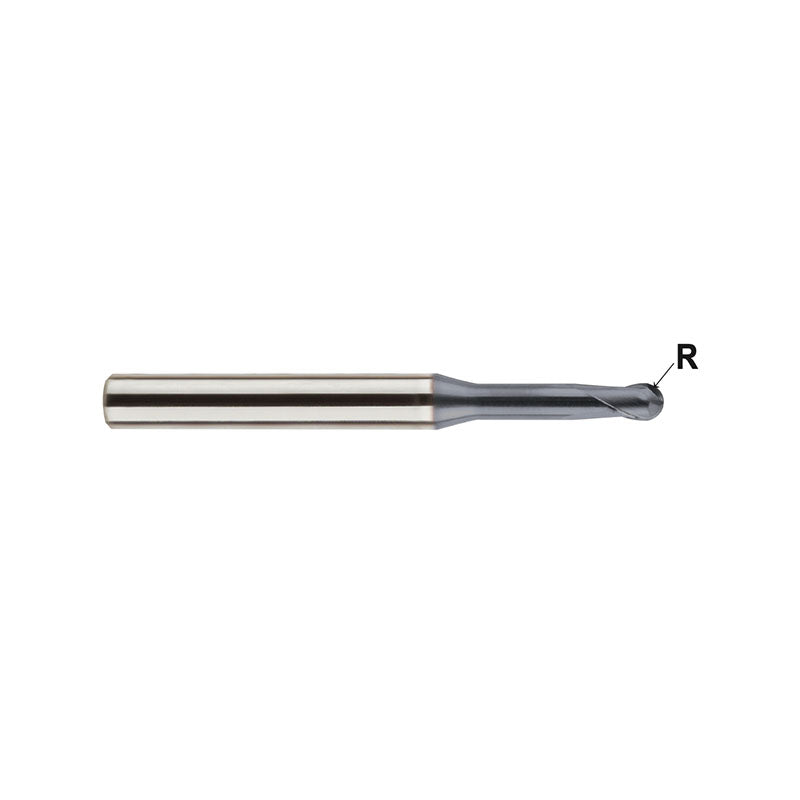

Carbide 4G Mill End Mills Plain Shank SEM846 Series 2 Flute Long Neck Ball Nose SEM84600801～SEM84601016
Carbide 4G Mill End Mills Plain Shank SEM846 Series 2 Flute Long Neck Ball Nose SEM84600801～SEM84601016
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product Information
▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Due to unique ball nose geometry and cutting edges, cutting force decreased, and wear resistance increased.
▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.

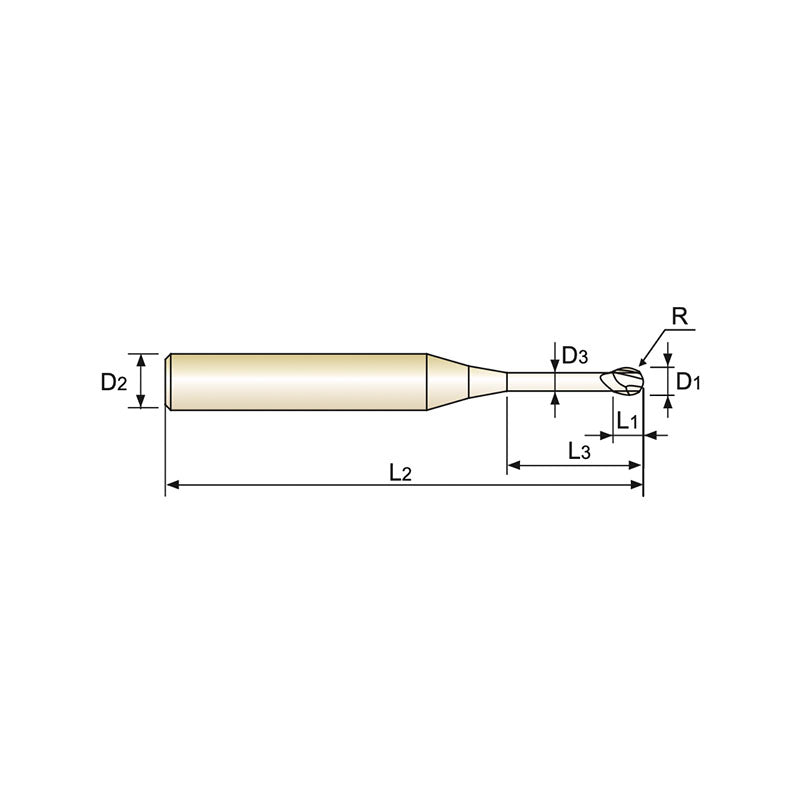

| EDP No. | Radius of Ball Nose | Mill Diameter | Shank Diameter | Length of Cut | Length Below Shank | Overall Length |
|---|---|---|---|---|---|---|
| R | D1 | D2 | L1 | L3 | L2 | |
| SEM84600801 | R0.4 | 0.8 | 4 | 0.8 | 1 | 45 |
| SEM84600802 | R0.4 | 0.8 | 4 | 0.8 | 2 | 45 |
| SEM84600803 | R0.4 | 0.8 | 4 | 0.8 | 3 | 45 |
| SEM84600804 | R0.4 | 0.8 | 4 | 0.8 | 4 | 45 |
| SEM84600805 | R0.4 | 0.8 | 4 | 0.8 | 5 | 45 |
| SEM84600806 | R0.4 | 0.8 | 4 | 0.8 | 6 | 45 |
| SEM84600808 | R0.4 | 0.8 | 4 | 0.8 | 8 | 45 |
| SEM84600810 | R0.4 | 0.8 | 4 | 0.8 | 10 | 45 |
| SEM84600812 | R0.4 | 0.8 | 4 | 0.8 | 12 | 45 |
| SEM84600814 | R0.4 | 0.8 | 4 | 0.8 | 14 | 45 |
| SEM84600816 | R0.4 | 0.8 | 4 | 0.8 | 16 | 45 |
| SEM84600820 | R0.4 | 0.8 | 4 | 0.8 | 20 | 45 |
| SEM84600904 | R0.45 | 0.9 | 4 | 0.9 | 4 | 45 |
| SEM84600906 | R0.45 | 0.9 | 4 | 0.9 | 6 | 45 |
| SEM84600908 | R0.45 | 0.9 | 4 | 0.9 | 8 | 45 |
| SEM84600910 | R0.45 | 0.9 | 4 | 0.9 | 10 | 45 |
| SEM84601002 | R0.5 | 1.0 | 4 | 1.0 | 2 | 50 |
| SEM84601003 | R0.5 | 1.0 | 4 | 1.0 | 3 | 50 |
| SEM84601004 | R0.5 | 1.0 | 4 | 1.0 | 4 | 50 |
| SEM84601005 | R0.5 | 1.0 | 4 | 1.0 | 5 | 50 |
| SEM84601006 | R0.5 | 1.0 | 4 | 1.0 | 6 | 50 |
| SEM84601007 | R0.5 | 1.0 | 4 | 1.0 | 7 | 50 |
| SEM84601008 | R0.5 | 1.0 | 4 | 1.0 | 8 | 50 |
| SEM84601009 | R0.5 | 1.0 | 4 | 1.0 | 9 | 50 |
| SEM84601010 | R0.5 | 1.0 | 4 | 1.0 | 10 | 50 |
| SEM84601012 | R0.5 | 1.0 | 4 | 1.0 | 12 | 50 |
| SEM84601014 | R0.5 | 1.0 | 4 | 1.0 | 14 | 50 |
| SEM84601016 | R0.5 | 1.0 | 4 | 1.0 | 16 | 50 |
