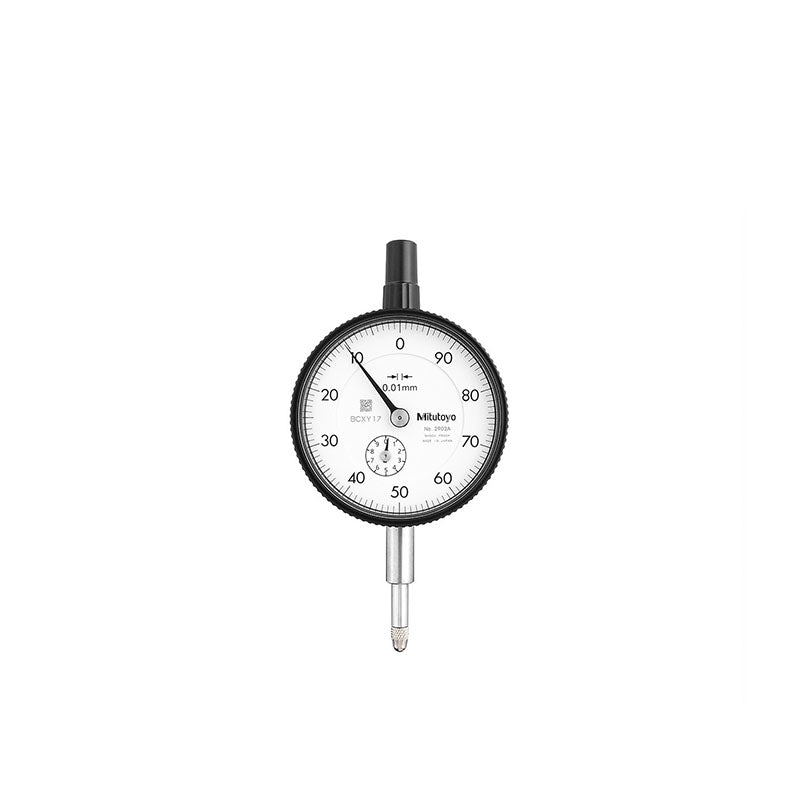

ANSI/AGD Type Metric Dial Indicator-Series 2 - Offers Simplicity, Accuracy and Durability for Any Application

ANSI/AGD Type Metric Dial Indicator-Series 2 - Offers Simplicity, Accuracy and Durability for Any Application

ANSI/AGD Type Metric Dial Indicator-Series 2 - Offers Simplicity, Accuracy and Durability for Any Application

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: 2046A-01

Features & Benefits

The Mitutoyo metric reading dial indicator performs with excellent accuracy and reliability, and it is available in several graduations and ranges for use in the widest range of applications. The stem and spindle are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. Secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.

  • Available in metric models only
  • Offered with flat back or lug back for mounting purposes
  • Available in several different graduations and ranges
  • A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
  • Unique shock-proof mechanism protects against shock from sudden spindle retraction
  • Rack gear is machine ground for tighter fit, increased accuracy
  • Greater rigidity in the bearing plate reduces retracing error by up to 20%
  • 4-Screw mounting increases impact resistance for better, longer accuracy
  • No through screw hole on the frame provides better dust resistance
  • Contact point is carbide tipped for lasting accuracy, durability
  • Crystal is glare-free with a scratch-resistant coating
  • Manufactured to meet ANSI/AGD standards
  • Supplied in a fitted plastic case

Technical Data

Technology: Mechanical
Units: Metric
Stem diameter: 0.375"
Min Range: 0mm
ANSI/AGD type: Yes

Product List

Order No. Graduation Max Range Range revolution Dial reading Back Type Accuracy revolution Accuracy Measuring Force Shockproof Jeweled Bearing
2046A-01 0.01mm 10mm 1mm 0-100 Lug Back 0.01mm ±0.013mm 1.4 or lessN - -
2046A-11 0.01mm 10mm 1mm 0-100 Lug Back 0.01mm ±0.013mm 1.4 or lessN - Yes
2046AB-01 0.01mm 10mm 1mm 0-100 Flat Back 0.01mm ±0.013mm 1.4 or lessN - -
2046AB-11 0.01mm 10mm 1mm 0-100 Flat Back 0.01mm ±0.013mm 1.4 or lessN - Yes
2047A-01 0.01mm 10mm 1mm 0-50-0 Lug Back 0.01mm ±0.013mm 1.4 or lessN - -
2047A-11 0.01mm 10mm 1mm 0-50-0 Lug Back 0.01mm ±0.013mm 1.4 or lessN - Yes
2047AB-01 0.01mm 10mm 1mm 0-50-0 Flat Back 0.01mm ±0.013mm 1.4 or lessN - -
2047AB-11 0.01mm 10mm 1mm 0-50-0 Flat Back 0.01mm ±0.013mm 1.4 or lessN - Yes
2050AB-01 0.01mm 20mm 1mm 0-100 Flat Back 0.01mm ±0.02mm 2.0 or lessN - -
2056A-01 0.01mm 25mm 1mm 0-100 Lug Back 0.01mm ±0.025mm 2.5 or lessN - -
2056AB-01 0.01mm 25mm 1mm 0-100 Flat Back 0.01mm ±0.025mm 2.5 or lessN - -
2109A-11 0.001mm 1mm 0.2mm 0-100-0 Lug Back 0.003mm ±0.004mm 1.5 or lessN Yes Yes
2109AB-11 0.001mm 1mm 0.2mm 0-100-0 Flat Back 0.003mm ±0.004mm 1.5 or lessN Yes Yes
2119A-11 0.001mm 5mm 0.2mm 0-100-0 Lug Back 0.007mm ±0.01mm 1.5 or lessN - Yes
2119AB-11 0.001mm 5mm 0.2mm 0-100-0 Flat Back 0.007mm ±0.01mm 1.5 or lessN - Yes
2230SB-01 0.01mm 2.5mm 1mm 0-100 Flat Back 0.01mm ±0.01mm 1.4 or lessN - -
2231A-01 0.01mm 2.5mm 1mm 0-50-0 Lug Back 0.01mm ±0.01mm 1.4 or lessN - -
2231AB-01 0.01mm 2.5mm 1mm 0-50-0 Flat Back 0.01mm ±0.01mm 1.4 or lessN - -
2902A-01 0.01mm 10mm 1mm 100-0 Lug Back 0.01mm ±0.013mm 2.0 or lessN - -
2902AB-01 0.01mm 10mm 1mm 100-0 Flat Back 0.01mm ±0.013mm 2.0 or lessN - -
