Specification: 128-101

Features & Benefits

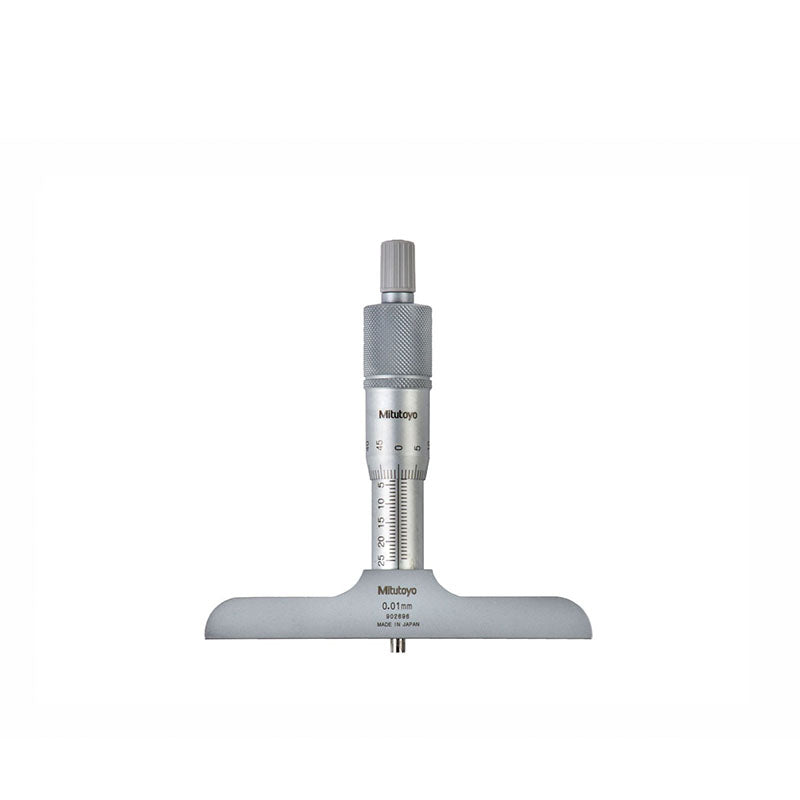

The depth micrometer is ideal for fast, highly accurate depth measurements of up to 25mm/1”. The depth micrometer is constructed of hardened tool steel, and offers a ratchet stop mechanism which provides uniform pressure for precise, repeatable measurements.

  • Available in Metric and Inch models
  • Available with carbide-tipped measuring rod
  • Measuring rod clamp provides added stability for better accuracy, repeatability
  • Satin chrome finish on thimble for better readability
  • Rod diameters are 4mm
  • Measuring rod clamps provide added measurement stability
  • Supplied with a fitted plastic case

Technical Data

Technology: Mechanical
Parallelism between reference face and measuring rod face: (4+L/50)µm, L=Max. measuring length (mm)
Measuring rod diameter: 4mm

Product List

Order No. Units Range Accuracy Graduation Flatness of reference surface base Flatness of measuring face Base size Measuring Faces
128-101 Metric 0-25mm ±3µm 0.01mm 1.3µm 0.3µm 63.5 x 16mm -
128-102 Metric 0-25mm ±3µm 0.01mm 2µm 0.3µm 101.6 x 16mm -
128-103 Metric 0-25mm ±3µm 0.01mm 1.3µm 0.3µm 63.5 x 16mm Carbide tipped
128-104 Metric 0-25mm ±3µm 0.01mm 2µm 0.3µm 101.6 x 16mm Carbide tipped
128-105 Inch 0-1" - 0.001" 0.00005" 0.000012" 2.5 x .63" -
128-106 Inch 0-1" - 0.001" 0.00008" 0.000012" 4 x .63" -
